012AA07077

?Post Hole Structure



Post-Hole Structure Details
Length 320 Width  320
Area  10.24 sq. m Ratio 1:1
Number of Posts 16 Deepest 24 012AA00066 Shallowest 5 012AA00400
Average Depth
 12.5
North Wall  2 Posts Average Depth 10.5
East Wall  3 Posts Average Depth 17
South Wall  6 Posts Average Depth 14
West Wall  2 Posts Average Depth 7.5
Interior Divisions: Two internal post holes; probably structural, possibly dividing structure into two.
Highest Elevation Value  6689  012AA00070
Lowest Elevation Value 6649  012AA00310
Bearing   76 degrees
Plank\Post Post
Doorways Unclear.
Repairs:
Structural Class
Material Culture Number of Objects  2 Number of Animal Bones 0
Environmental

Phasing
Discussion

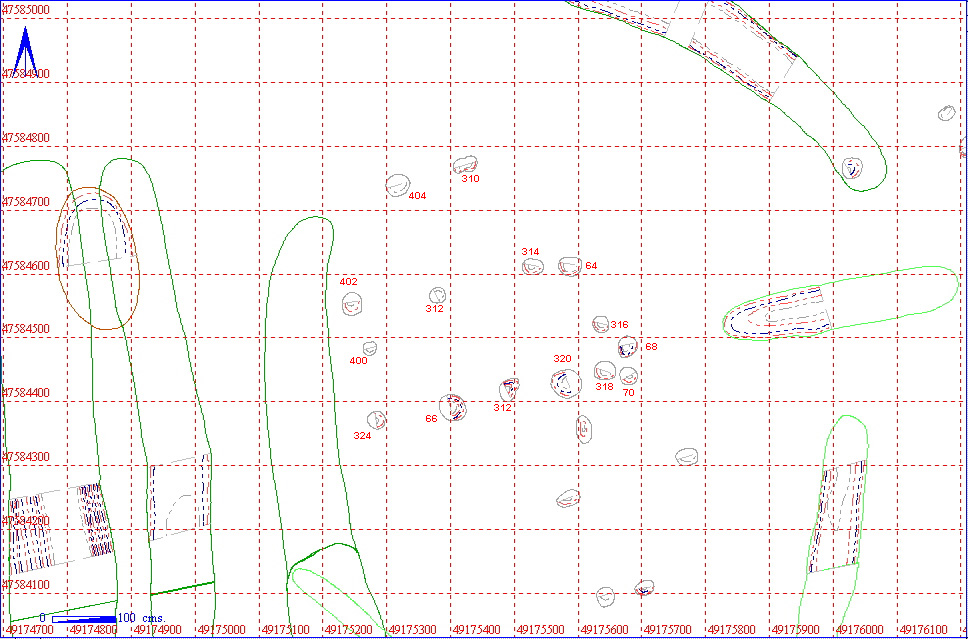

 A possible post hole structure in the north of area 12AA. This group of post holes may form a small, square structure with two internal post holes or a narrow, east/west aligned structure. The post holes lay on the western limit of area 12AA and further, unexcavated post holes may have been present to the west forming a larger structure. The dimensions in the table, above, are based on the square building hypothesis. For further interpretation of the post holes in this area, see Interpretation of the post holes in area 12AA.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
012AA07077
012AA00064
012AA00063


012AA00066
012AA00065
    1

012AA00068
012AA00067


012AA00070
012AA00069


012AA00310
012AA00309


012AA00312
012AA00311


012AA00314
012AA00313


012AA00316
012AA00315


012AA00318
012AA00317


012AA00320
012AA00319
    1

012AA00322
012AA00321


012AA00324
012AA00323


012AA00400
012AA00399


012AA00402
012AA00401


012AA00404
012AA00403


Structural Details

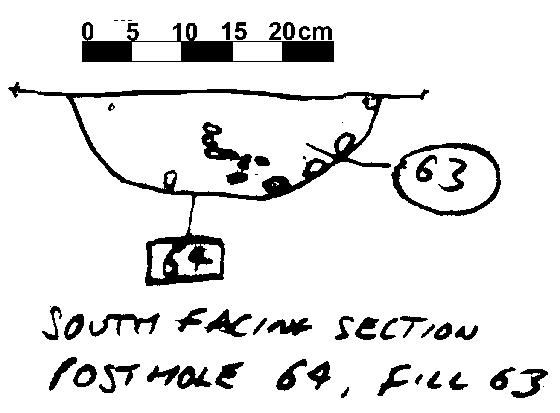

012AA00064 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00063 POST HOLE FILL OVATE
32
29
10
 U-SHAPED PH FILL IN NW AREA. 20% CHALK INCLUSIONS. NO FINDS. POSS. DOUBLE STAKEHOLE NOT SEEN UNTIL AFTER EXCAVATION.
012AA00064 POST HOLE CUT OVATE
32
29
10
 WIDE U PH CUT IN NW AREA.

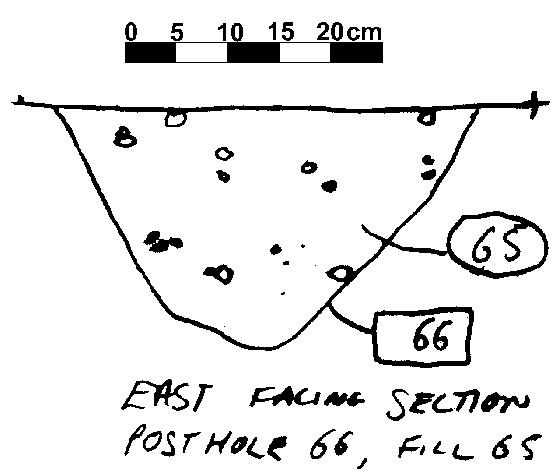

012AA00066 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00065 POST HOLE FILL OVATE
42
41
24
 U-SHAPED PH FILL IN NW AREA. SLIGHT CHARCOAL INCLUSIONS. 25% CHALK PEBBLES 1CM. 1 LARGE PIECE OF BONE AND BURNT SANDSTONE.
012AA00066 POST HOLE CUT OVATE
42
41
24
 V-SHAPED PH CUT IN NW AREA.CUT INTO NATURAL HILLWASH.

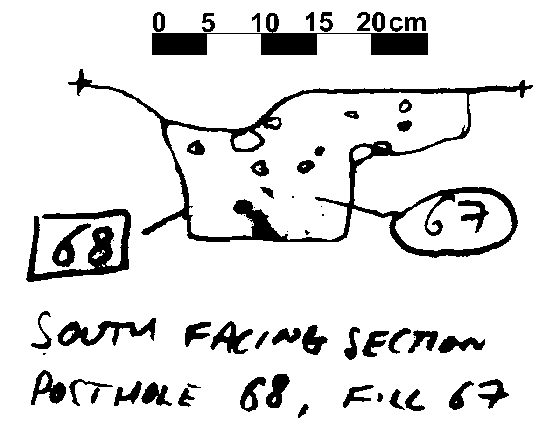

012AA00068 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00067 POST HOLE FILL OVATE
34
33
20
 U-SHAPED PH FILL IN NW AREA. CONTAINED ONE PIECE OF CHARCOAL. ONE PIECE BURNT BONE. 35% CHALK INCLUSIONS.
012AA00068 POST HOLE CUT OVATE
34
33
20
 U-SHAPED PH CUT IN NW AREA. SLIGHTLY CONCAVE ON W SIDE WITH POSSIBLE POST PIPE.

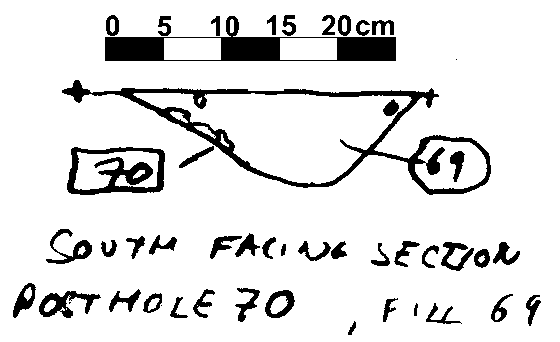

012AA00070 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00069 POST HOLE FILL ROUND
28
27
9
 U-SHAPED PH FILL IN NW AREA. 5% CHALK MATRIX. NO FINDS.
012AA00070 POST HOLE CUT OVATE
28
27
9
 U-SHAPED CUT OF PH. IN NW OF AREA.

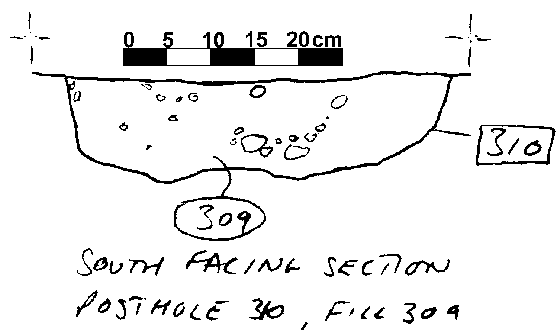

012AA00310 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00309 POST HOLE FILL OVATE
46
33
13
 WSHAPED FILL OF POST HOLE IN NW AREA. DOUBLE POST HOLE. 15% CHALK. NO FINDS.
012AA00310 POST HOLE CUT OVATE
46
33
13
 WSHAPED CUT OF POST HOLE IN NW AREA. DOUBLE POST HOLE.

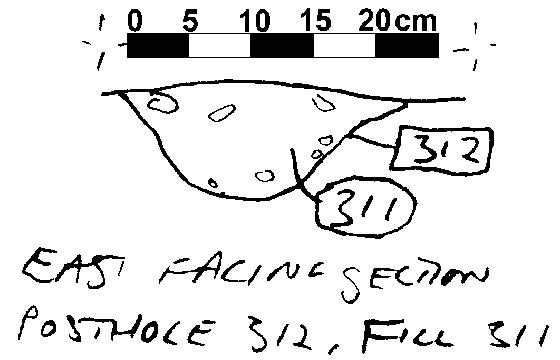

012AA00312 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00311 POST HOLE FILL ROUND
24
24
10
 U-SHAPED FILL OF POST HOLE IN NW AREA. 20% CHALK INCL. DAUB FLECKS. NO FINDS.
012AA00312 POST HOLE CUT ROUND
24
24
10
 V-SHAPED CUT OF POST HOLE IN NW AREA.

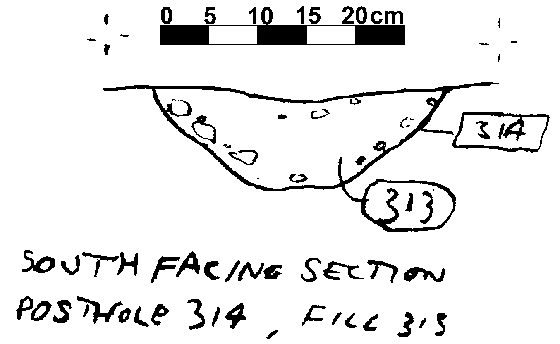

012AA00314 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00313 POST HOLE FILL ROUND
30
29
12
 U-SHAPED FILL OF POST HOLE IN NW AREA. 10% CHALK MATRIX. NO FINDS. DAUB FLECKS.
012AA00314 POST HOLE CUT ROUND
30
29
12
 WIDE V CUT OF POST HOLE IN NW AREA.

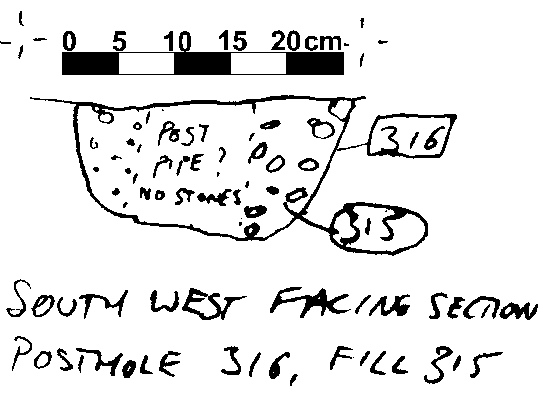

012AA00316 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00315 POST HOLE FILL ROUND
27
27
14
 U-SHAPED FILL OF POST HOLE IN NW AREA. 10% CHALK INCL. NO FINDS. POST PIPE VISIBLE.
012AA00316 POST HOLE CUT ROUND
27
27
14
 WIDE V CUT OF POST HOLE IN NW AREA.

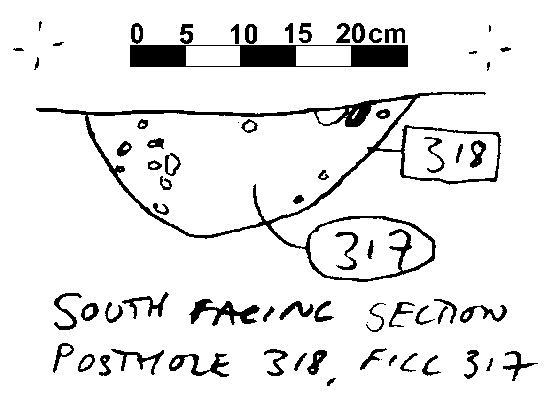

012AA00318 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00317 POST HOLE FILL ROUND
33
30
12
 U-SHAPED FILL OF POST HOLE IN NW AREA. 15% CHALK INCLS. NO FINDS.
012AA00318 POST HOLE CUT ROUND
33
30
12
 WIDE V CUT OF POST HOLE IN NW AREA.

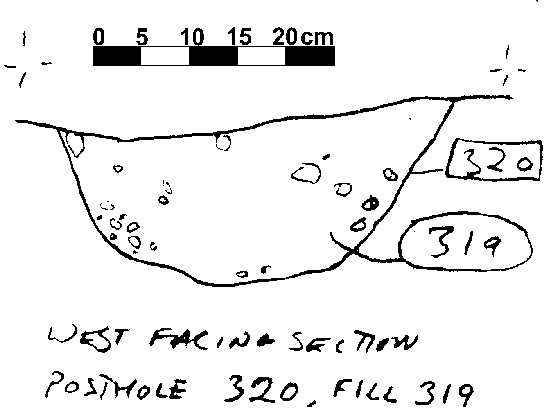

012AA00320 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00319 POST HOLE FILL ROUND
50
43
19
 U-SHAPED FILL OF POST HOLE IN NW AREA. 15% CHALK INCL. CONT. UNFIRED CLAY AND SMALL PIECE OF BURNT RED S/STONE.
012AA00320 POST HOLE CUT ROUND
50
43
19
 WIDE V CUT OF POST HOLE IN NW AREA.

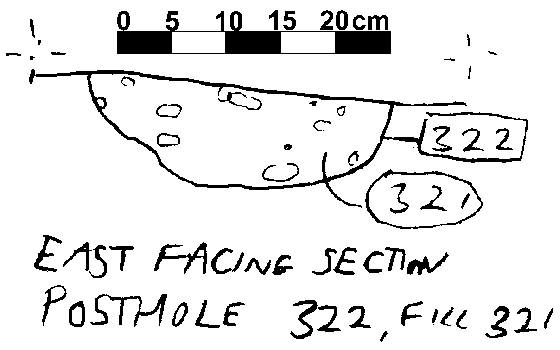

012AA00322 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00321 POST HOLE FILL ROUND
35
30
10
 U-SHAPED FILL OF POST HOLE IN NW AREA. 10% CHALK. NO FINDS.
012AA00322 POST HOLE CUT ROUND
35
30
10
 U-SHAPED CUT OF POST HOLE IN NW AREA.

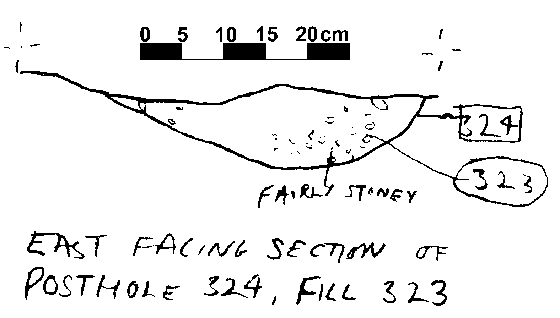

012AA00324 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00323 POST HOLE FILL ROUND
42
40
10
 U-SHAPED FILL OF POST HOLE IN NW AREA. 10% CHALK. NO FINDS.
012AA00324 POST HOLE CUT ROUND
42
40
10
 WIDE V CUT OF POST HOLE IN NW AREA.

012AA00400 Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00399 POST HOLE FILL ROUND
28
25
5
 U-SHAPED FILL OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER. 30% CHALK. NO FINDS. POSS. NOT GENUINE.
012AA00400 POST HOLE CUT ROUND
28
25
5
 U-SHAPED CUT OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER. POSS. NOT GENUINE.

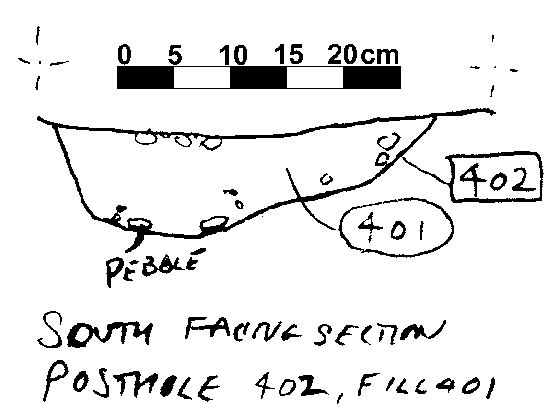

012AA00402 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00401 POST HOLE FILL ROUND
43
40
10
 U-SHAPED FILL OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER. 15% CHALK. CONT. BOVINE TOOTH.
012AA00402 POST HOLE CUT ROUND
43
40
10
 WIDE V CUT OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER.

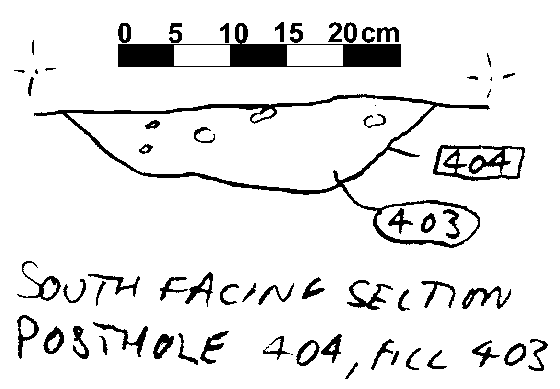

012AA00404 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AA00403 POST HOLE FILL ROUND
36
29
8
 U-SHAPED FILL OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER. 10% CHALK. NO FINDS.
012AA00404 POST HOLE CUT ROUND
36
29
8
 U-SHAPED CUT OF POST HOLE IN CENTRAL NORTH AREA IN WESTERN PH CLUSTER.

Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
 012AA00065 AA    STONE  STONE    SANDSTONE  2
012AA00319 AA   STONE STONE     1
