011CE20004

Grubenhaus



Grubenhaus Details
Length 274 Width 240 Depth 40 Ratio 1.14
Area  5.55 Volume
Number of Posts 2
Highest Elevation Value  6070
Lowest Elevation Value 6030
Bearing   77 degrees
Structural Class
Material Culture Number of Objects 17 Number of Animal Bones 19
Environmental

Phasing

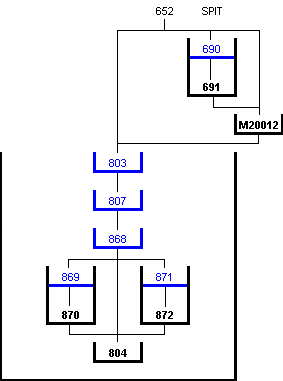

Stratigraphic Matrix Diagram

Discussion

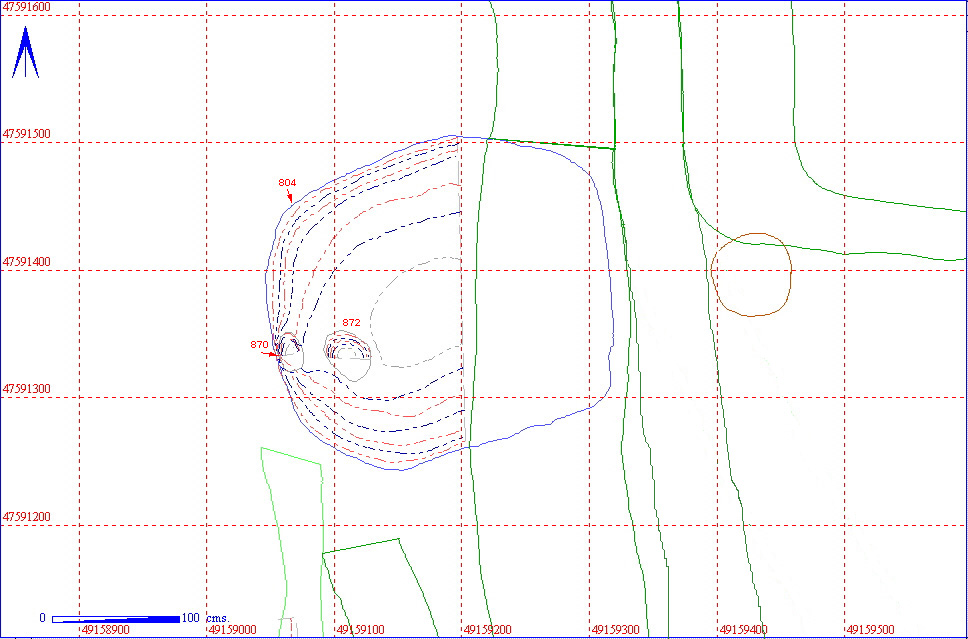

 The western side of a small Grubenhaus in the west of area 11CE. The eastern half of this structure was entirely cut away by two north/south aligned ditches, 011CE20002 and 011CE00691, therefore the length of the structure is not known. Two post holes were present; one central in the west side (011CE00870) and the other approximately 20cm further east (011CE00872). An unexcavated pit (011CE00897) may be the east side post hole of this structure although this was never established with certainty.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
011CE20004
011CE00804
011CE00803
   14  16

011CE00807
      3

011CE00868
   3

011CE00870
011CE00869


011CE00872
011CE00871


Object Totals by Material

011CE00803 Object Totals by Material

011CE00803 Charcoal 1
  Daub 2
  Flint 2
  Pottery 6 of which No Entry 2 Roman 4
  Snail 1
  Stone 1
  Unfired Clay 1

011CE00868 Object Totals by Material

011CE00868 Charcoal 1
  Unfired Clay 1
  Worked Stone 1

Animal Bone Totals by Species

011CE00803 Animal Bone Totals by Species

KEY_ID SPECIES No
011CE00803 Amphibian spp.
2
Horse
1
Pig
3
Sheep/Goat
10


011CE00807 Animal Bone Totals by Species

KEY_ID SPECIES No
011CE00807 Sheep
1
Sheep/Goat
2

Structural Details

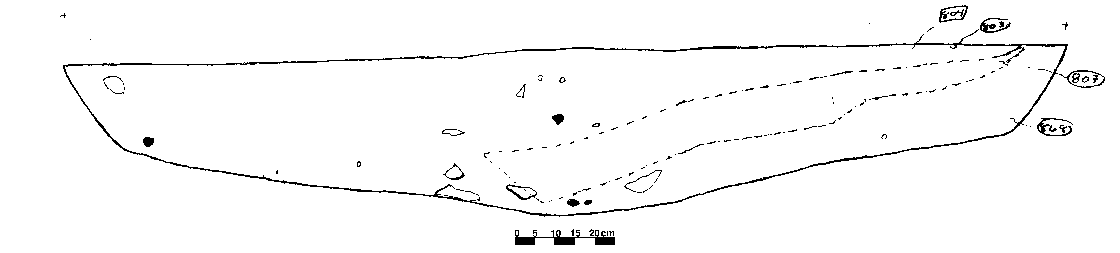

011CE00804 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011CE00803 GRUB FILL SUB-RECTANGULAR
165
192
23
 WIDE V FINAL FILL OF GRUB. CONTAINED ANIMAL BONE;BURNT BONE;FLINT AND POTTERY. CUT BY DITCHES 690/691 AND 692/693. CHALK INC 5% 1-3CM IN DIAMETER.
011CE00804 GRUB CUT SUB-RECTANGULAR
165
245
40
 WIDE V CUT OF GRUB. GRUB WAS CUT BY DITCHES 690/691 AND 692/693. ONLY MEASURED UP TO THE POINT WHERE GRUB WAS CUT AWAY. CUT INTO CHALK NATURAL.
011CE00807 GRUB FILL SUB-RECTANGULAR
117
126
17
 FLAT BASED U CHARCOAL LAYER IN GRUB 804 CUT AWAY BY DITCHES 691 AND 693. LAYER CONTAINED BURNT AND UNBURNT BONE AND CARBONISED WHEAT. NO SOIL INFO AS ITS CHARCOAL.
011CE00868 GRUB FILL SUB-RECTANGULAR
126
195
12
 FLAT BASED V PRIMARY FILL OF GRUB 804. FINDS RECOVERED BY WET SIEVING. UNFIRED LOOM WEIGHT. CHALK INC 5% 1-2 CM IN DIAMETER. A FEW CHALK ROCKS c 6 CM IN LENGTH.

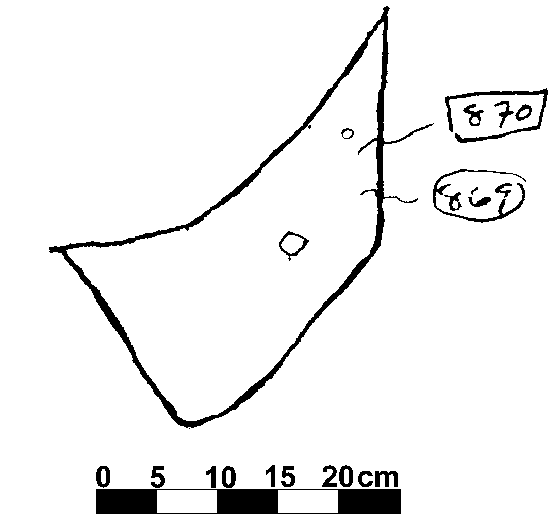

011CE00870 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011CE00869 POST HOLE FILL SUB-RECTANGULAR
30
26
38
 USHAPED NO FINDS. ONE PIECE OF CHALK 3 CM IN DIAMETER. WESTERNMOST POST OF TWO IN THE WESTERN SIDE OF GRUB 804.
011CE00870 POST HOLE CUT SUB-RECTANGULAR
30
26
38
 USHAPED WESTERNMOST POST OF TWO IN THE WESTERN SIDE OF GRUB 804. CUT INTO THE SLOPING SIDE OF 804 AND INTO CHALK NATURAL.

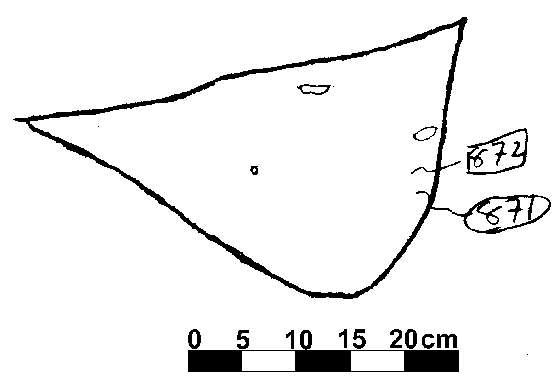

011CE00872 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011CE00871 POST HOLE FILL SUB-RECTANGULAR
40
35
22
 USHAPED EASTERN POST HOLE OF 2 POSTS SET IN THE WESTERN SIDE OF GRUB 804. NO FINDS. CHALK INCLUSIONS 1% 1-2 CM IN DIAMETER. NO POST PACKING.
011CE00872 POST HOLE CUT SUB-RECTANGULAR
40
35
22
 USHAPED EASTERN POST HOLE OF 2 POSTS SET IN THE WESTERN SIDE OF GRUB 804. CUT INTO THE BASE OF GRUB CUT 804 AND INTO THE CHALK NATURAL.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
011CE00803 AG   CHARCOAL CHARCOAL SAMPLE
1
011CE00803 AE EARLY SAXON DAUB DAUB
2
011CE00803 AN EARLY SAXON DAUB DAUB
1
011CE00803 AB PREHISTORIC FLINT FLAKE
1
011CE00803 AH PREHISTORIC FLINT BLADE
1
011CE00803 AF ROMAN POTTERY SHERD   R-B
1
011CE00803 AI ROMAN POTTERY SHERD   R-B
1
011CE00803 AJ ROMAN POTTERY SHERD   R-B
1
011CE00803 AK ROMAN POTTERY SHERD   R-B
1
011CE00803 AA   POTTERY SHERD
1
011CE00803 AM   POTTERY SHERD
1
011CE00803 AL   SNAIL SNAIL SAMPLE
1
011CE00803 AC   STONE PEBBLES
2
011CE00803 AD EARLY SAXON UNFIRED CLAY UNFIRED CLAY
2
011CE00868 AC   CHARCOAL CHARCOAL SAMPLE
1
011CE00868 AA EARLY SAXON UNFIRED CLAY UNFIRED CLAY
6
011CE00868 AB EARLY SAXON WORKED STONE LAVA NIEDERMENDIG
1


Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
011CE00803 Amphibian spp. Other 1
0
 0 0 0
011CE00803 Amphibian spp. Other *
1
 0 0 0
011CE00803 Horse Phalanx 2 1
0
 0 0 0
011CE00803 Pig Ld4 1
1
 0 0 0
011CE00803 Pig LM3 1
0
 0 0 0
011CE00803 Pig N.Cuboid 1
0
 0 0 0
011CE00803 Sheep/Goat Astragalus 1
0
 0 0 0
011CE00803 Sheep/Goat Femur br 1
0
 0 0 0
011CE00803 Sheep/Goat M/C br 1
0
 0 0 1
011CE00803 Sheep/Goat M/T D 1
0
 0 0 1
011CE00803 Sheep/Goat Mandible 1
0
 0 0 1
011CE00803 Sheep/Goat N.Cuboid 1
0
 1 0 0
011CE00803 Sheep/Goat Patella 1
0
 0 0 0
011CE00803 Sheep/Goat Pelvis 1
0
 0 0 0
011CE00803 Sheep/Goat Phalanx 2 1
0
 1 0 0
011CE00803 Sheep/Goat Phalanx 3 1
0
 1 0 0
011CE00807 Sheep Phalanx 2 1
0
 0 0 0
011CE00807 Sheep/Goat Phalanx 2 1
0
 0 0 0
011CE00807 Sheep/Goat Ulna 1
0
 1 0 0
