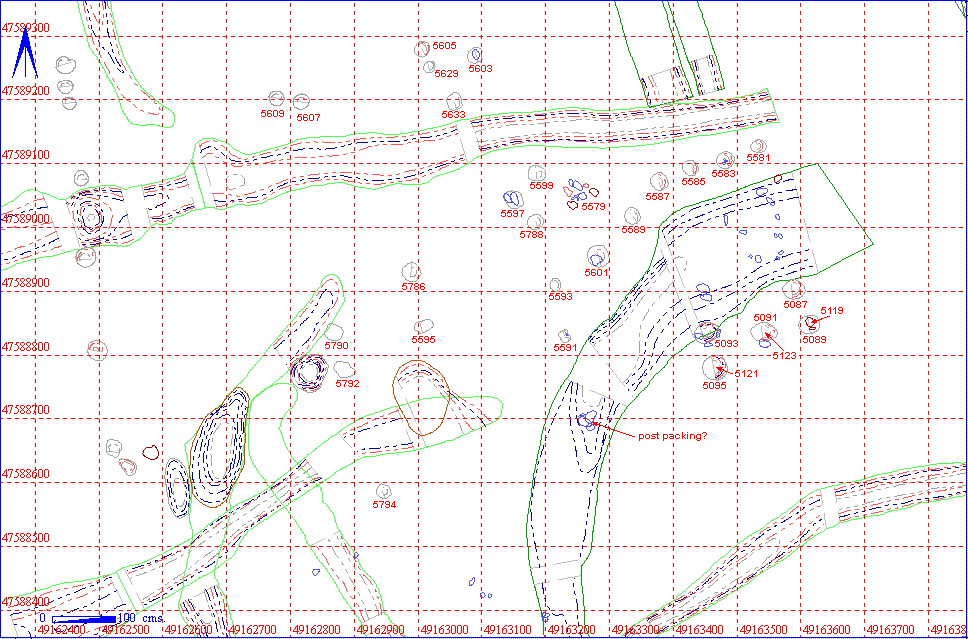

Post-Hole Structure Details | |||||||||||||
Length | 690 | Width | 275 | ||||||||||
Area | 18.97 sq. m | Ratio | 2.5:1 | ||||||||||
Number of Posts | 23 | Deepest | 19 | 011CD05089 and 011CD05091 | Shallowest | 4 | 011CD05790 and 011CD05792 |
|
9 | ||||
North Wall | 7 Posts | Average Depth | 6 | ||||||||||
East Wall | 1 Post | Average Depth | 13 | ||||||||||
South Wall | 4 Posts | Average Depth | 18 | ||||||||||
West Wall | 3 Posts | Average Depth | 4 | ||||||||||

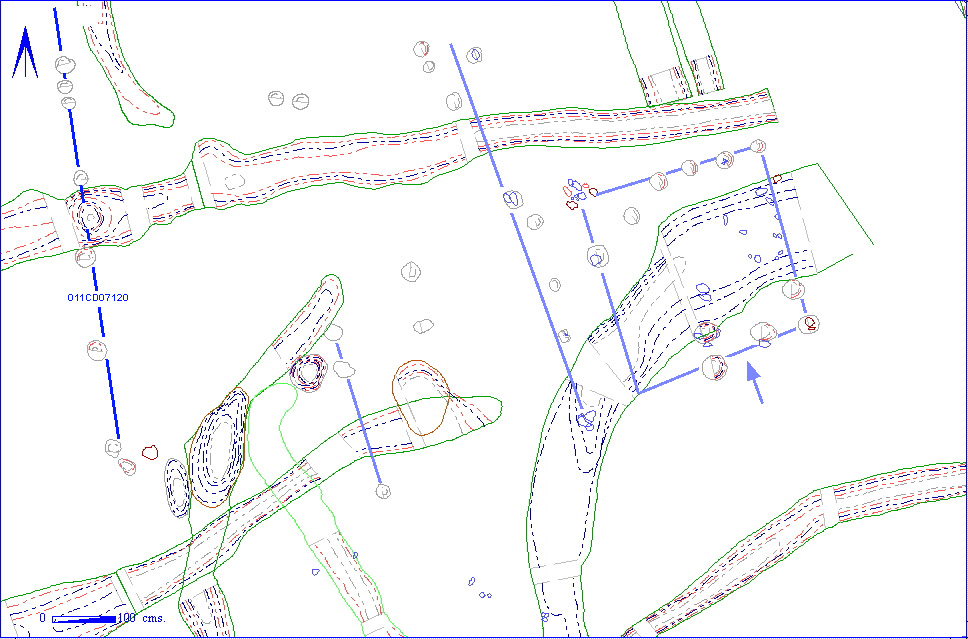

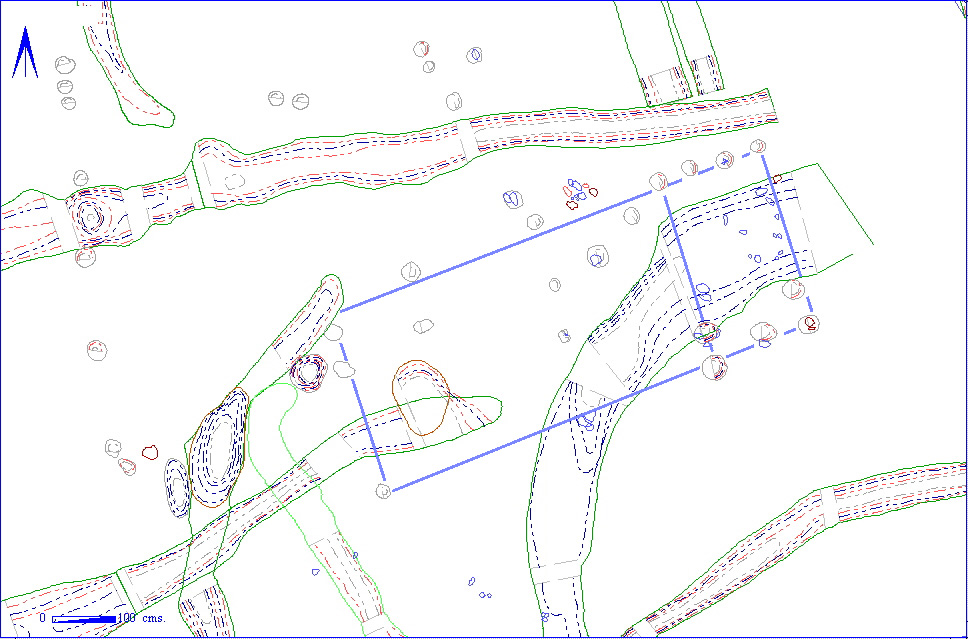

Interior Divisions: | Possibly a partition in the west side. A central line of post holes may indicate that building was divided into two roughly equal halves. | ||||||||||||
Highest Elevation Value | 6088 | 011CD05794 | |||||||||||
Lowest Elevation Value | 6005 | 011CD05581 | |||||||||||
Bearing | 69 degrees | ||||||||||||
Plank\Post | Post | ||||||||||||
Doorways | Unclear. | ||||||||||||
Repairs: | |||||||||||||
Structural Class | |||||||||||||
Material Culture | Number of Objects | 8 | Number of Animal Bones | 5 | |||||||||
Environmental |
MASTER | CUT | FILL | VOLUME | OBJECTS | AN BONE | DENSITY |
011CD20019 |
|
|
||||
|
|
|||||
|
|
|||||
|
|
1 | 1 | |||
|
|
|||||
|
|
1 | ||||
|
|
1 | ||||
|
|
|||||
POST PACKING |
|
|||||
|
|
|||||
|
|
1 | ||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
2 | ||||
|
|
|||||
|
|
|||||
|
|
1 | ||||
|
|
1 | ||||
|
|
1 | 1 | |||
|
|
|||||
|
|
1 | ||||
|
|
|||||
|
|
|||||
|
|
1 | ||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
KEY_ID | PERIOD | MATERIAL | No |
011CD05092 | EARLY SAXON | DAUB | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05118 | No Entry | STONE | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05582 | No Entry | POTTERY | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05594 | No Entry | CHARCOAL | 1 |
EARLY SAXON | DAUB | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05600 | EARLY SAXON | WORKED STONE | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05604 | Unassigned | STONE | 1 |
KEY_ID | PERIOD | MATERIAL | No |
011CD05608 | Unassigned | STONE | 1 |
KEY_ID | SPECIES | No |
011CD05092 | HORSE |
1
|
KEY_ID | SPECIES | No |
011CD05121 | SHEEP/GOAT |
1
|
KEY_ID | SPECIES | No |
011CD05602 | SHEEP/GOAT |
1
|
KEY_ID | SPECIES | No |
011CD05604 | SHEEP/GOAT |
1
|
KEY_ID | SPECIES | No |
011CD05786 | CATTLE |
1
|
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

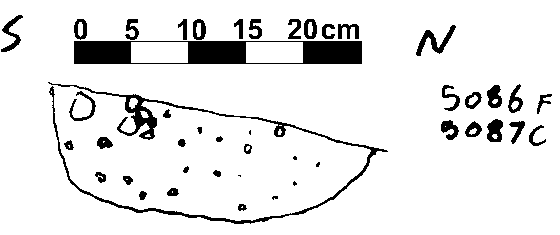

011CD05086 | POST HOLE FILL | ROUND |
33
|
32
|
13
|
USHAPED | NO FINDS. ASSOCIATED WITH GROUP OF POST HOLES 5088/5089 5090/5091 5092/5093 AND 5094/5095. NO ASSOCIATED POST PIPE. |
011CD05087 | POST HOLE CUT | ROUND |
33
|
32
|
13
|
USHAPED | CUT INTO COLLUVIAL HILL WASH. NEAR WATERLOGGED AREA. ASSOCIATED WITH POST HOLES 5089 5091 5093 AND 5095. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05088 | POST HOLE FILL | ROUND |
37
|
33
|
19
|
USHAPED | FILL INCLUDED POST PACKING (RED SANDSTONE RED CHALK AND CHERT). ASSOCIATED WITH POST PIPE 5118/5119. |
011CD05089 | POST HOLE CUT | ROUND |
37
|
33
|
19
|
USHAPED | CUT INTO COLLUVIAL HILL WASH. ASSOCIATED WITH POST HOLES 5087 5091 5093 AND 5095. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

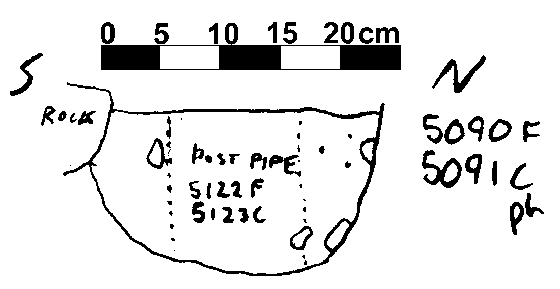

011CD05090 | POST HOLE FILL | ROUND |
30
|
29
|
19
|
USHAPED | FILL OF POST HOLE. NO FINDS APART FROM POST PACKING (SANDSTONE). ASSOCIATED POST PIPE 5122/5123. |
011CD05091 | POST HOLE CUT | ROUND |
30
|
29
|
19
|
USHAPED | CUT INTO COLLUVIAL HILL WASH. ASSOCIATED WITH POST HOLES 5087 5089 5093 AND 5095. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05092 | POST HOLE FILL | ROUND |
46
|
53
|
18
|
USHAPED | ASSOCIATED WITH 5086/5088/5090/5094. PACKING IN SOUTHERN HALF OF POST HOLE INDICATES PRESENCE OF POST PIPE. |

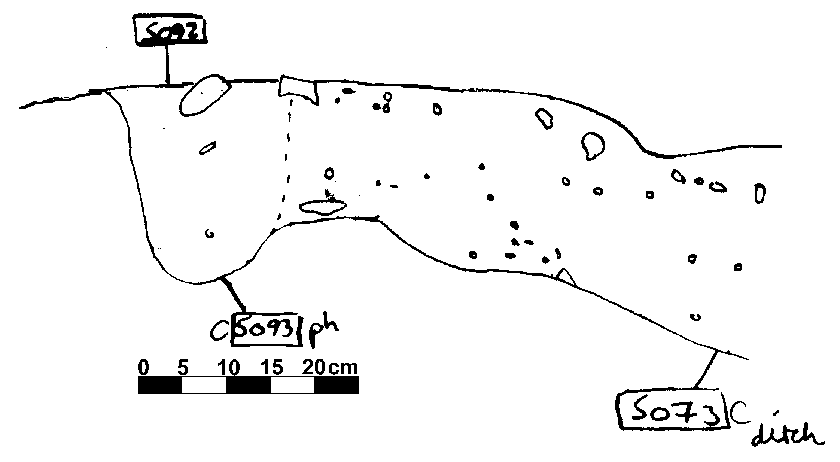

011CD05093 | POST HOLE CUT | ROUND |
46
|
53
|
18
|
USHAPED | ASSOCIATED WITH 5087/5089/5091/5095. CUT INTO THE COLLUVIAL HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

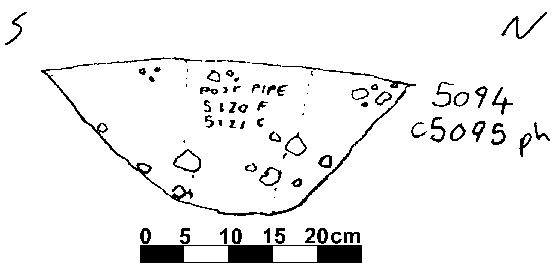

011CD05094 | POST HOLE FILL | ROUND |
38
|
38
|
16
|
USHAPED | FILL OF POST HOLE INCLUDED ONLY ONE SHERD OF POTTERY. THE ASSOCIATED POSYPIPE WAS 5120/5121. NO ANIMAL BONE FINDS. |
011CD05095 | POST HOLE CUT | ROUND |
38
|
38
|
16
|
USHAPED | ASSOCIATED WITH P:HOLES 5088 5086 5090 AND 5092. CUT INTO COLLUVIAL HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05118 | POST PIPE FILL | ROUND |
18
|
26
|
16
|
USHAPED | POST PIPE FILL FLOATED. ONLY NOTICED BECAUSE OF DARK CHARCOAL FILL. POSSIBLE REMNANTS OF FIRE HARDENED STAKE. |
011CD05119 | POST PIPE CUT | ROUND |
18
|
26
|
16
|
USHAPED | CUT INTO COLLUVIAL HILL WASH. EVENT OCCURRED AFTER CUT PH 5089 AND BEFORE FILL PH 5088. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05120 | POST PIPE FILL | ROUND |
26
|
26
|
14
|
USHAPED | ALL FILL REMOVED FOR FLOTATON. NO PACKING VISIBLE IN HALF SECTION. PIPE ONLY VISIBLE BY DARK CHARCOAL FILL. |
011CD05121 | POST PIPE CUT | ROUND |
26
|
26
|
14
|
USHAPED | PIPE CUT INTO COLLUVIAL HILL WASH. AFTER P.H. CUT 5095 AND BEFORE POST HOLE FILL 5094. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05122 | POST PIPE FILL | ROUND |
14
|
22
|
8
|
USHAPED | POST PIPE FILL VISIBLE ONLY BY DARK CHARCOAL MATERIAL. POSSIBLE REMNANT OF FIRE-HARDENED STAKE. ALL FILL FLOATED. |
011CD05123 | POST PIPE CUT | ROUND |
14
|
22
|
8
|
USHAPED | CUT INTO HILL WAS AND P.H. CUT 5091. LIES BENEATH P.H. FILL 5090. ONE OF THREE VISIBLE POST PIPES IN CLOSE PROXIMITY. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05579 | POST PACKING | SUB-CIRCULAR |
48
|
48
|
9
|
COMPLEX | PROBABLE POST PACKING AS THIS STONE ARRANGEMENT LAY IN A LINE OF POST HOLES IN THE EASTERN SIDE OF CD. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

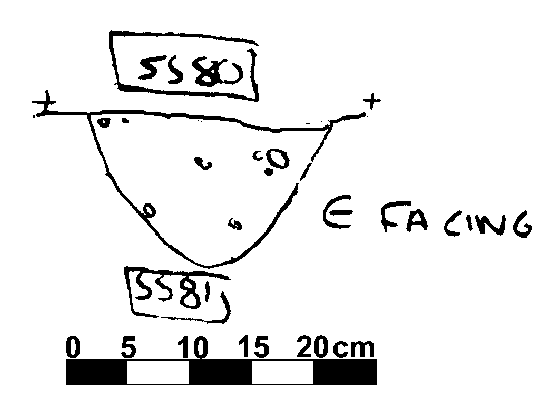

011CD05580 | POST HOLE FILL | ROUND |
24
|
22
|
5
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05581 | POST HOLE CUT | ROUND |
24
|
22
|
5
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

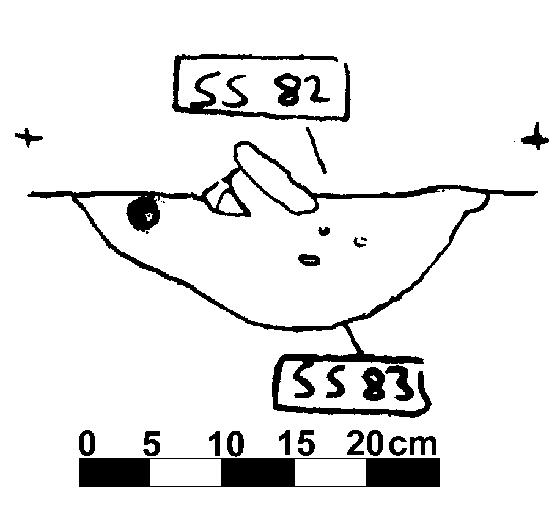

011CD05582 | POST HOLE FILL | ROUND |
26
|
26
|
7
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. 2 FRAGS OF RED POTTERY +FRAG BONE |
011CD05583 | POST HOLE CUT | ROUND |
26
|
26
|
7
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

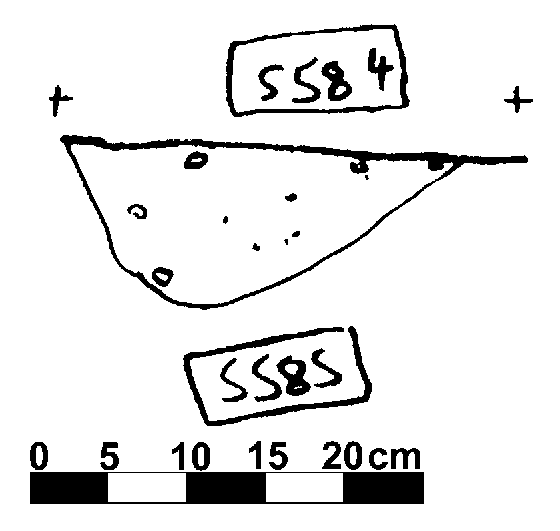

011CD05584 | POST HOLE FILL | ROUND |
24
|
25
|
6
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05585 | POST HOLE CUT | ROUND |
24
|
25
|
6
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

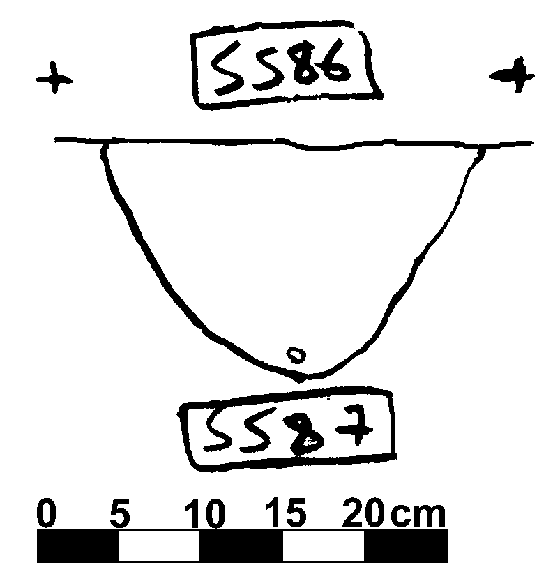

011CD05586 | POST HOLE FILL | ROUND |
23
|
24
|
8
|
USHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05587 | POST HOLE CUT | ROUND |
23
|
24
|
8
|
USHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

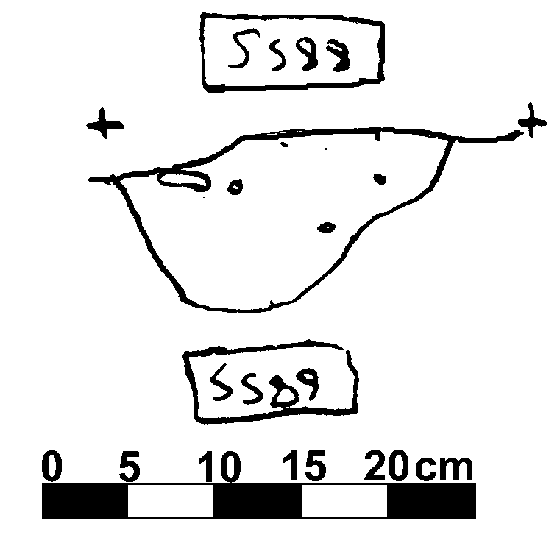

011CD05588 | POST HOLE FILL | ROUND |
20
|
23
|
8
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05589 | POST HOLE CUT | ROUND |
20
|
23
|
8
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05590 | POST HOLE FILL | ROUND |
19
|
24
|
6
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05591 | POST HOLE CUT | ROUND |
19
|
24
|
6
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

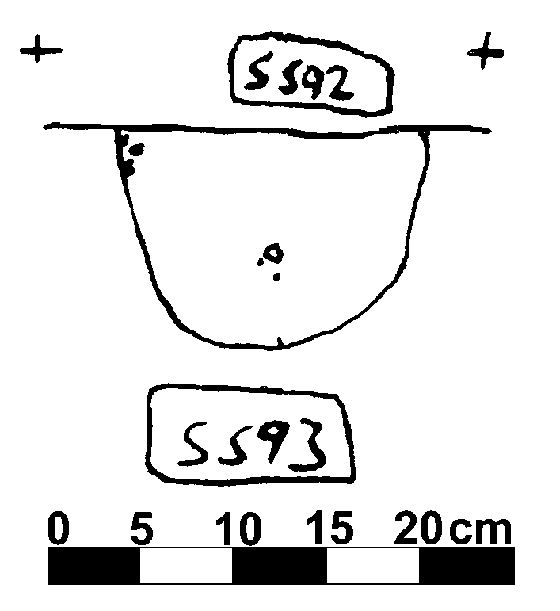

011CD05592 | POST HOLE FILL | ROUND |
15
|
18
|
6
|
VSHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CONTAINED NO FINDS. |
011CD05593 | POST HOLE CUT | ROUND |
15
|
18
|
6
|
VSHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |
011CD05594 | POST HOLE FILL | ROUND |
13
|
13
|
4
|
USHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. ANIMAL BONE AND CHARCOAL FINDS. |

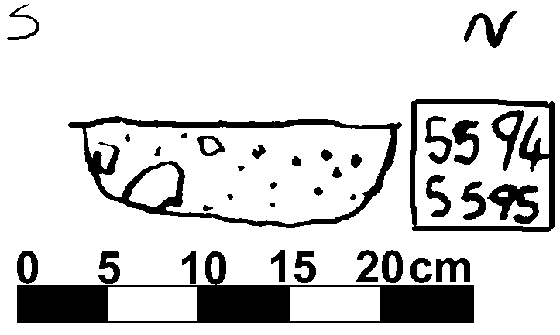

011CD05595 | POST HOLE CUT | ROUND |
13
|
13
|
4
|
USHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

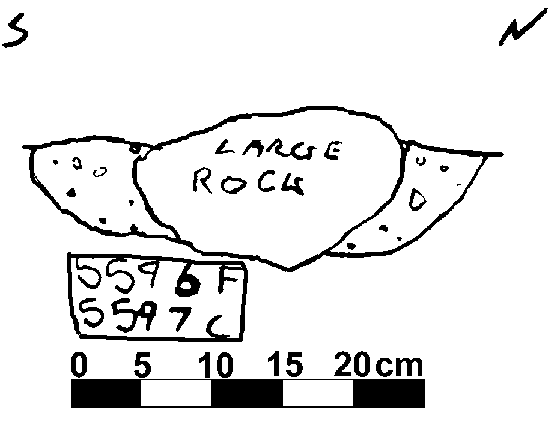

011CD05596 | POST HOLE FILL | ROUND |
31
|
31
|
12
|
USHAPED | FILL OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. AN BONE AND NIED LAVA ON SURFACE. |
011CD05597 | POST HOLE CUT | ROUND |
31
|
31
|
12
|
USHAPED | CUT OF POST HOLE WHICH HAS ASSOCIATION WITH LINE OF POSTS RUNNING E/W AS INDICATED ON PLAN IN CXT RECORD 5580/5581. CUT INTO HILL WASH. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

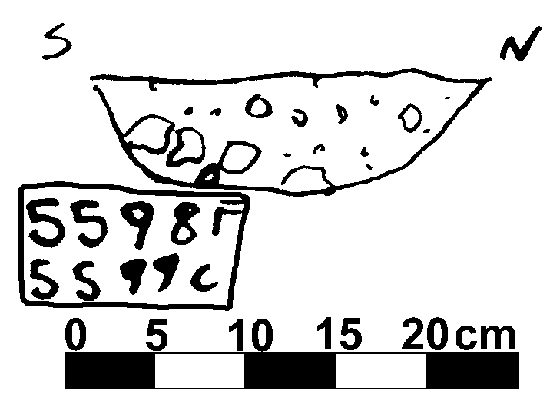

011CD05598 | POST HOLE FILL | OVATE | 19 | 22 | 8 | USHAPED | SANDY LOAM FILL WITH CHALK INCLUSIONS APPROX. 40% 0.5-3CM SIZE. CONTAINED NO FINDS. NO POST PACKING APPARENT. |
011CD05599 | POST HOLE CUT | OVATE | 19 | 22 | 8 | USHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS APPROX. 40% O.5-3CM SIZE. MAY BE ASSOCIATED WITH P/H:S ON S SIDE OF DITCH 5054/5055. SEE BOOK. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

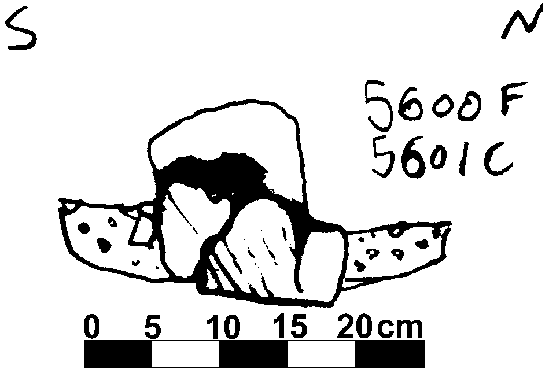

011CD05600 | POST HOLE FILL | ROUND |
32
|
30
|
10
|
USHAPED | CONTAINED ONE SHERD OF ANIMAL BONE. SANDY LOAM FILL WITH CHALK INCLUSIONS c.40% 1-4CM SIZE. CHALK & RED SANDSTONE MAY BE POST PACKING REMNANTS. |
011CD05601 | POST HOLE CUT | ROUND |
32
|
30
|
10
|
USHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS APPROX. 40% 1-4CM SIZE. MAY BE ASSOCIATED WITH LINE OF P/H:S ON NORTH SIDE OF DITCH 5055.SEE BOOKK |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

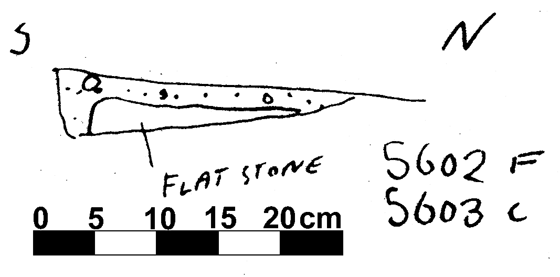

011CD05602 | POST HOLE FILL | OVATE |
22
|
24
|
9
|
U-SHAPED | SANDY LOAM FILL WITH CHALK INCLUSIONS c.30% 0.2-0.5CM SIZE. LARGE CHALK c15CM LENGTH PROBABLE POST PACKING REMNANT. CONTAINED NO FINDS. |
011CD05603 | POST HOLE CUT | OVATE |
22
|
24
|
9
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS c.30% 0.2-1CM SIZE. MAY BE ASSOCIATED WITH P/H:S ON N SIDE OF DITCH 5054/5055. SEE BOOK. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

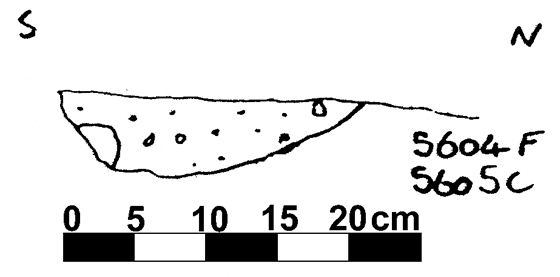

011CD05604 | POST HOLE FILL | OVATE |
19
|
20
|
10
|
U-SHAPED | CONTAINED ANIMAL BONE. SANDY LOAM FILL WITH CHALK INCLUSIONS APPROX. 5-10% 0.2-2CM SIZE. PROBABLE FENCE POST. |
011CD05605 | POST HOLE CUT | OVATE |
19
|
20
|
10
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS c.40% 1-4CM SIZE. IN CLOSE PROXIMITY TO P/H 5629. MAY HAVE ASSOCIATION WITH P/H:S ON N SSIDEOF50555 |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

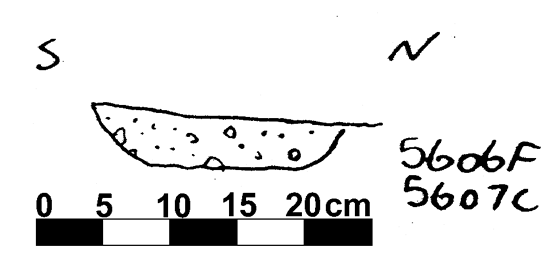

011CD05606 | POST HOLE FILL | ROUND |
21
|
16
|
6
|
U-SHAPED | CONTAINED NO FINDS. SANDY LOAM FILL WITH CHALK INCLUSIONS APPROX. 30% 0.2-1CM SIZE. MAY BE ASSOCIATED WITH P/H:S ON N SIDE OF 5055. PROBABLE FENCEPOST |
011CD05607 | POST HOLE CUT | ROUND |
21
|
16
|
6
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS APPROX. 60% 0.2-3CM SIZE. MAY BE ASSOCIATED WITH P/H:S ON N SIDE OF 5055. PROBABLE FENCE POST. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

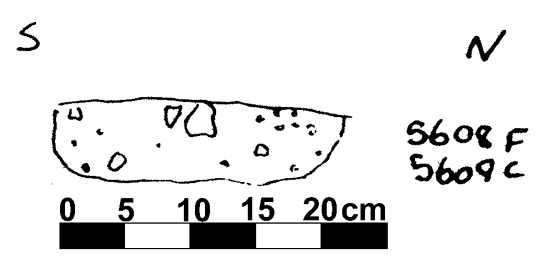

011CD05608 | POST HOLE FILL | ROUND |
20
|
22
|
6
|
U-SHAPED | CONTAINED ONE SHERD OF ANIMAL BONE AND RED SANDSTONE c.3CM IN LENGTH. SANDY LOAM FILL WITH CHALK INCLUSIONS c.20% 1-2CM SIZE.PROBABLE FENCE POST. |
011CD05609 | POST HOLE CUT | ROUND |
20
|
22
|
6
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH WITH CHALK INCLUSIONS APPROX. 30% 1-5CM SIZE. MAY BE ASSOCIATED WITH P/H:S ON N SIDE OF 5055.PROBABLE FENCE POST.SEE BOOK |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

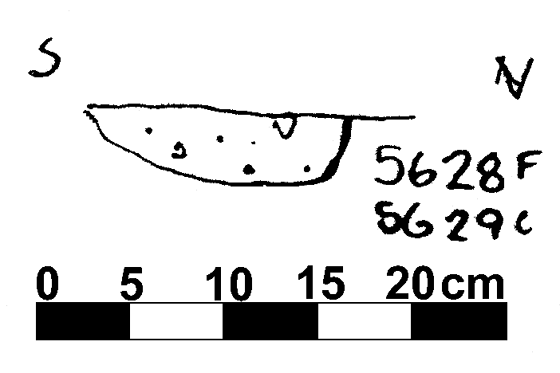

011CD05628 | POST HOLE FILL | ROUND |
14
|
12
|
8
|
U-SHAPED | SANDY LOAM FILL WITH CHALK INCLUSIONS c.10% 0.2-0.5CM SIZE. CONTAINED NO FINDS. NO POST PACKING EVIDENT. PROBABLE FENCE POST. SEE BOOK. |
011CD05629 | POST HOLE CUT | ROUND |
14
|
12
|
8
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH. CHALK INCLUSIONS c.40% 1-4CM SIZE.MAY BE ASSOCIATED WITH P/H:S ON N SIDE OF DITCH 5054/5055. PROBABLE FENCE POST.SEE5599 |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

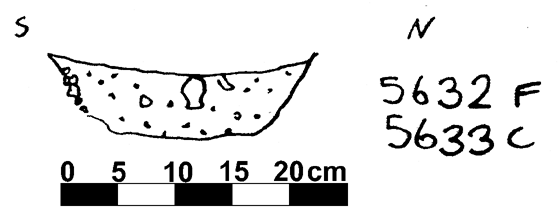

011CD05632 | POST HOLE FILL | ROUND |
19
|
17
|
9
|
U-SHAPED | SANDY LOAM FILL WITH CHALK INCLUSIONS c.20% 0.5-2CM SIZE. CONTAINED SMALL FRAGMENT OF ANIMAL BONE. NO POST PACKING EVIDENT. SEE BOOK FOR SKETCH. |
011CD05633 | POST HOLE CUT | ROUND |
19
|
17
|
9
|
U-SHAPED | CUT INTO COLLUVIAL HILL WASH. CHALK INCLUSIONS c.40% 1-3CM SIZE. MAY BE ASSOCIATED WITH POSTS ON N SIDE OF DITCH 5054/5055. SEE SKETCH 5599. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

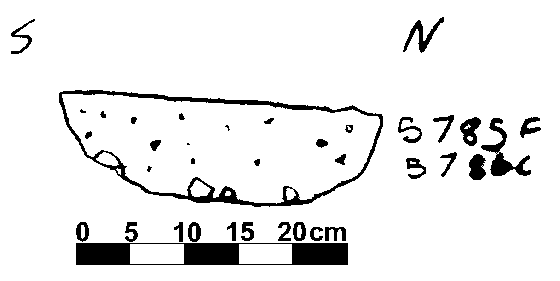

011CD05785 | POST HOLE FILL | ROUND |
33
|
36
|
6
|
USHAPED | FILL OF POST HOLE. NO FINDS. THIS IS ONE OF THE NORTHERN SIDE WALL POST HOLES IN THE BUILDING NW OF THE WATERLOGGED AREA. |
011CD05786 | POST HOLE CUT | ROUND |
33
|
36
|
6
|
USHAPED | CUT INTO HILL WASH THIS IS ONE OF THE NORTHERN POSTS IN THE BUILDING m20019 NW OF THE WATERLOGGED AREA. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

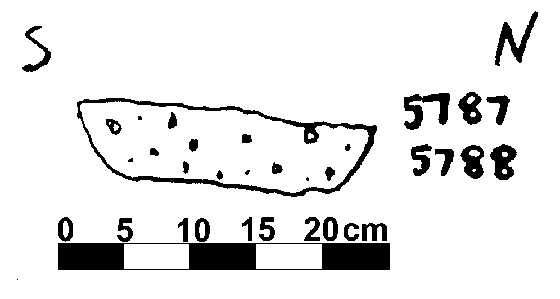

011CD05787 | POST HOLE FILL | ROUND |
23
|
29
|
5
|
USHAPED | FILL OF POST HOLE. NO FINDS. ONE OF THE NORTHERN WALL POSTS IN THE BUILDING (M20019) N/W OF THE WATERLOGGED AREA. |
011CD05788 | POST HOLE CUT | ROUND |
23
|
29
|
5
|
USHAPED | CUT INTO HILL WASH THIS IS ONE OF THE NORTHERN WALL POSTS IN THE BUILDING (M20019) N/W OF THE WATERLOGGED AREA. |
KEY_ID TYPE | SHAPE | L | B | D | PROFILE | NOTES | |
011CD05789 | POST HOLE FILL | ROUND |
19
|
23
|
4
|
USHAPED | FILL OF POST HOLE. NO FINDS. ONE OF THE WESTERN END POSTS IN THE BUILDING N/W OF THE WATERLOGGED AREA. (N/W CORNER POST). |

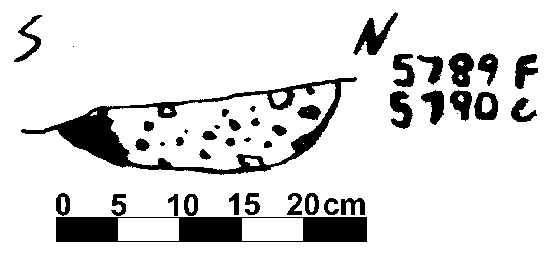

011CD05790 | POST HOLE CUT | ROUND |
19
|
23
|
4
|
USHAPED | CUT INTO HILL WASH THIS IS THE N/W CORNER POST OF M20019 THE BUILDING N/W OF THE WATERLOGGED AREA. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

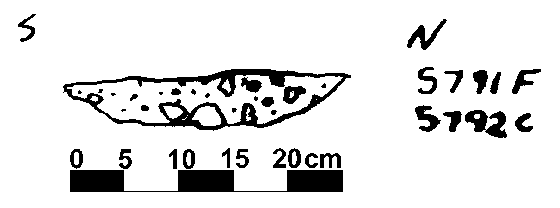

011CD05791 | POST HOLE FILL | ROUND |
24
|
25
|
4
|
USHAPED | FILL OF POST HOLE. NO FINDS. ONE OF THE WESTERN SIDE POSTS OF M20019 THE BUILDING N/W OF THE WATERLOGGED AREA. |
011CD05792 | POST HOLE CUT | ROUND |
24
|
25
|
4
|
USHAPED | CUT INTO HILLWASH AND CHALK GRAVEL. ONE OF THE WESTERN SIDE OF POSSIBLE POST HOLE BUILDING M20019. |
KEY_ID | TYPE | SHAPE | L | B | D | PROFILE | NOTES |

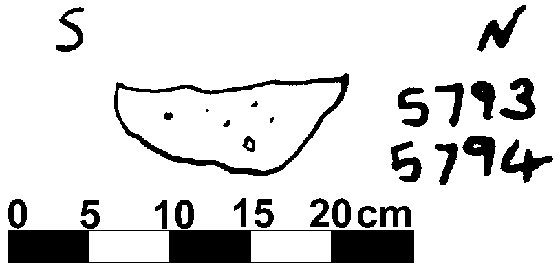

011CD05793 | POST HOLE FILL | ROUND |
20
|
23
|
5
|
USHAPED | FILL OF POST HOLE. NO FINDS. THIS IS THE S/E CORNER POST OF THE BUILDING M20019 N/W OF THE WATERLOGGED AREA. |
011CD05794 | POST HOLE CUT | ROUND |
20
|
23
|
5
|
USHAPED | CUT INTO CHALK NATURAL. THIS IS THE S/E CORNER POST OF M20019 THE BUILDING N/W OF THE WATERLOGGED AREA. |
