011BC07049

Post in Trench Structure



Post-Hole Structure Details
Length  1330 Width  445
Area   59.18 sq. m Ratio  3:1
Number of Posts  11 Deepest  23 011BC00679 Shallowest 9 011BC00674
Average Depth
 17
North Wall  2 Posts Average Depth 14
East Wall  2 Posts Average Depth 32
South Wall  3 Posts Average Depth 9
West Wall  2 Posts Average Depth 16
Interior Divisions: Partition approximately 290cm wide on east side
Highest Elevation Value  5630  011BC00651
Lowest Elevation Value 5582  011BC00672 and 011BC00679
Bearing    96 degrees
Plank\Post Post and trench
Doorways 1 doorway east of centre in north long wall.
Repairs: No repairs noted
Structural Class
Material Culture Number of Objects  16 (all in trench fill) Number of Animal Bones 0
Environmental

Phasing

Although no finds were specifically from this period, typologically a Middle Saxon date is assigned to this feature.

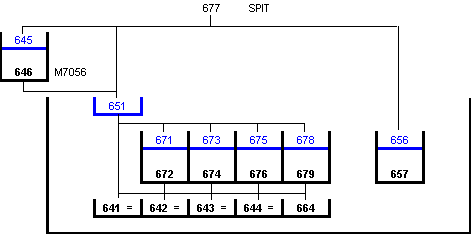

Stratigraphic Matrix Diagram



Discussion

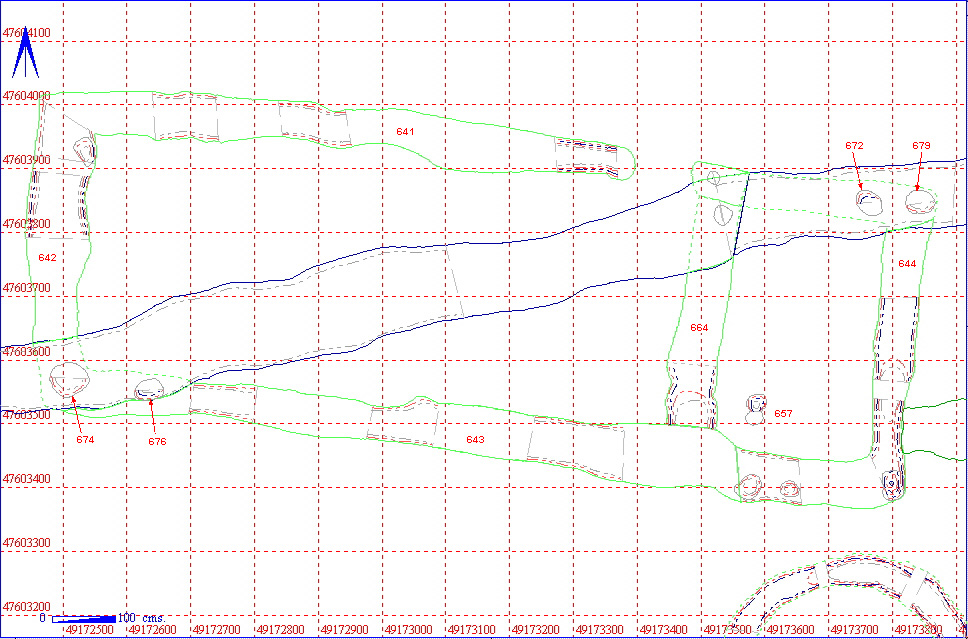

 A NW/SE aligned post and trench structure in central 11BC. Each wall of the structure was issued with a separate cut number although a single context was issued to the fill of the entire trench (011BC00651). The dimensions for the structure were attained by measuring from central points in the trenches. The trench was not fully excavated and therefore not all of the post holes were recovered. The average depth for the excavated sections of the trench is 17cm.
The corner posts were much deeper than those present in the walls (with the exception of the south/west corner 011BC00674), with an average depth of  24cm. An internal trench denoting a partition wall was recovered in the east side, partitioning off an area approximately 290cm wide. A break in the north trench is interpreted as a doorway into the easternmost part of the main body of the building.
A trench to the south/west of the structure (011BC00661) may be contemporary, possibly a fence line. A medieval furrow (011BC00646) cut through the structure and may be responsible for the shallow depth of the corner post 011BC00674.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
011BC07049
011BC00641
011BC00651
    16

011BC00642


011BC00643


011BC00644


011BC00664


011BC00657
011BC00656


011BC00672
011BC00671


011BC00674
011BC00673


011BC00676
011BC00675


011BC00679
011BC00678


Structural Details

011BC00641 Section and Notes

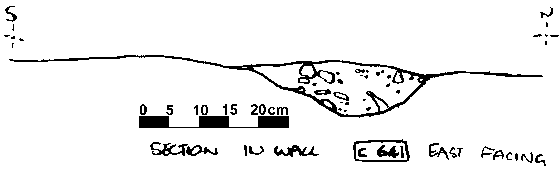

011BC00641 East Facing Section

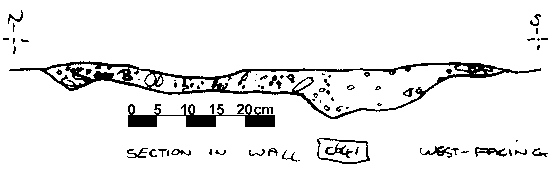

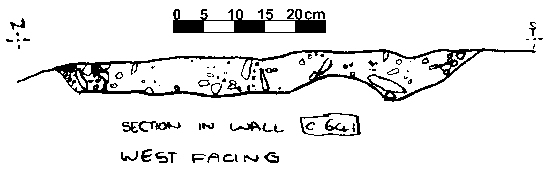

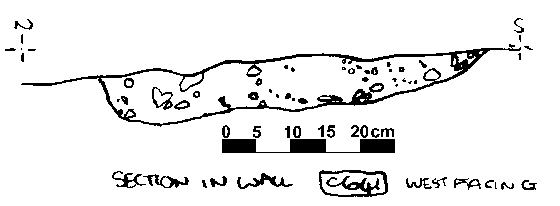

011BC00641 West Facing Section

011BC00641 West Facing Section

011BC00641 West Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00641 DITCH CUT LINEAR
148
72
15
 COMPLEX N WALL DITCH OF POST IN TRENCH STRUCTURE PH 11BC672 MAY INDICATE NE CORNER AS THIS IS CUT BY R & F LINE 11BC646 POSS GAP 570 CM E ALONG WALL

011BC00642 Section and Notes

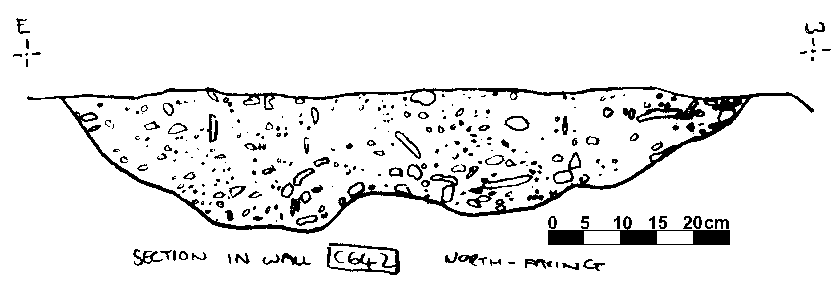

011BC00642 North Facing Section

011BC00642 North West Facing Section

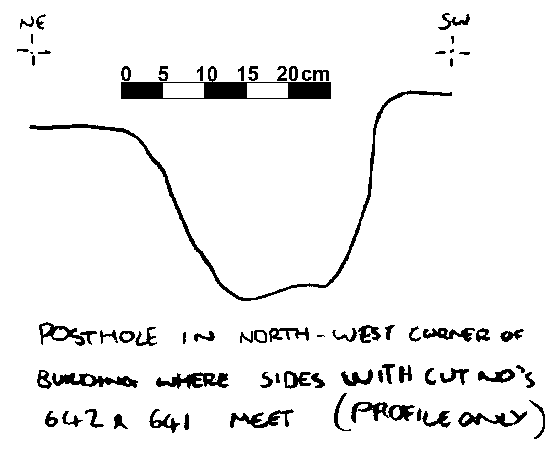

A post hole in the north/west corner of the structure, not issued with separate context numbers (24cm deep).

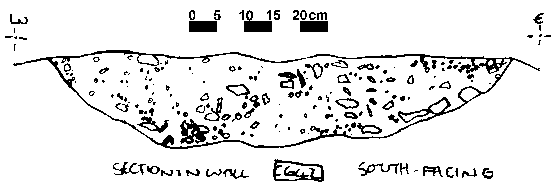

011BC00642 South Facing Section

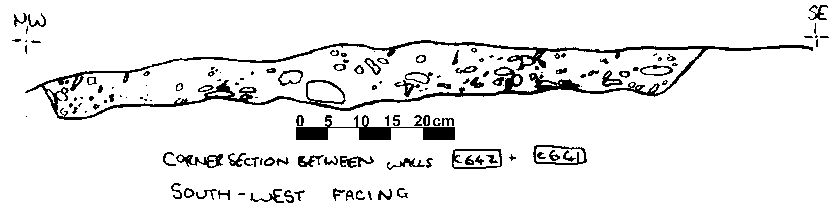

011BC00642 South West Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00642 DITCH CUT LINEAR
500
93
16
 COMPLEX W WALL DITCH OF POST IN TRENCH STRUCTURE SW CORNER CUT BY R & F LINE 11BC646 MAY SURVIVE AS PH 11BC 674 PH IN NW CORNER 34 BY 24 CM & 23 CM DEEP

011BC00643 Section and Notes

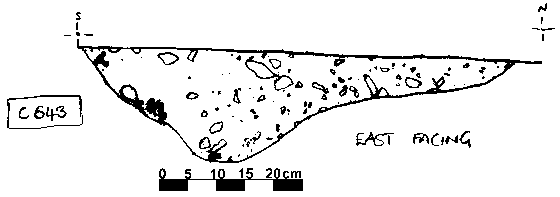

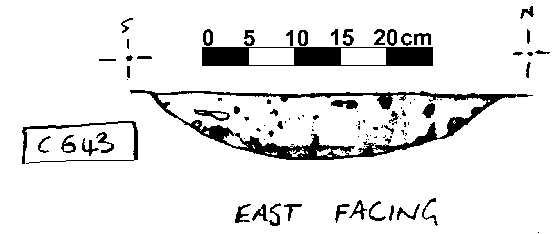

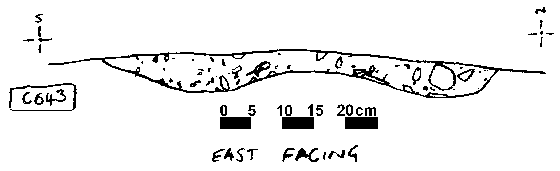

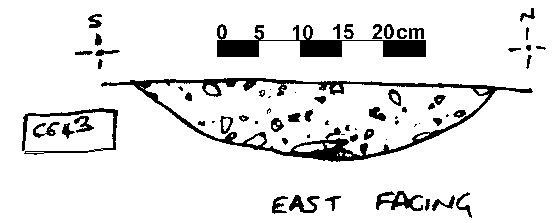

011BC00643 East Facing Section

011BC00643 East Facing Section

011BC00643 East Facing Section

011BC00643 East Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00643 DITCH CUT LINEAR
1400
82
19
 COMPLEX S WALL DITCH OF POST IN TRENCH STRUCTURE APPEARS TO BE GAP 680 CM E ALONG WALL PHS 11BC 674 & 676 UNDER R &F = W EXTENT PH AT E END 45 BY 33 CM 42 CM DEEP

011BC00644 Section and Notes

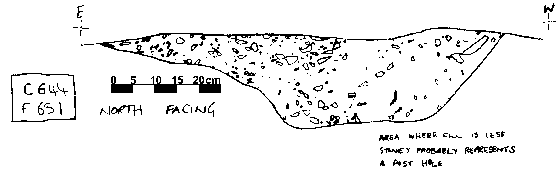

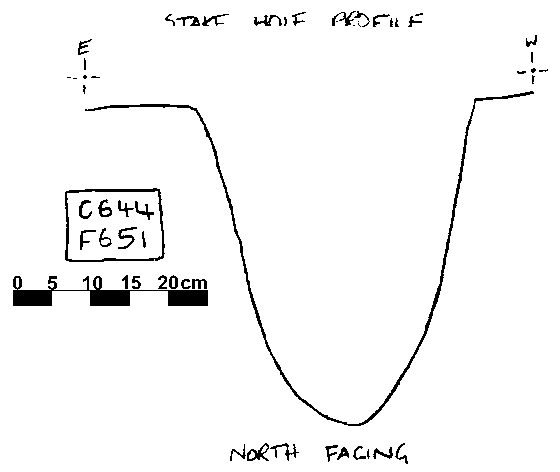

011BC00644 North Facing Section

011BC00644 North Facing Section
A post/stake hole in the south/east corner of the structure, not issued with separate contexts numbers (42cm deep).

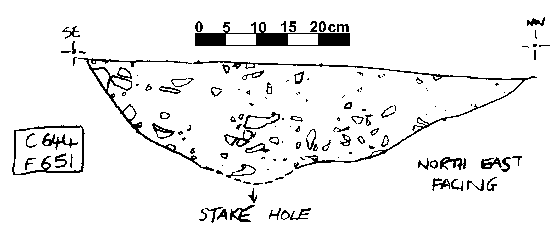

011BC00644 North East Facing Section

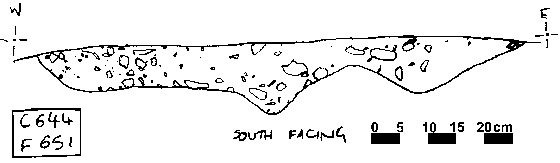

011BC00644 South Facing Section

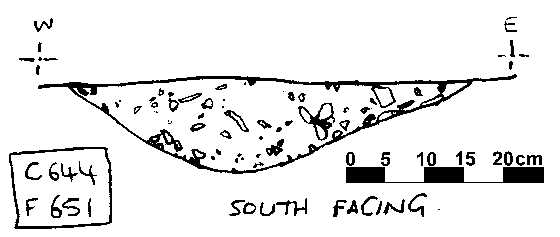

011BC00644 South Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00644 DITCH CUT LINEAR
500
73
22
 COMPLEX E WALL DITCH OF POST IN TRENCH STRUCTURE NW CORNER UNDER R&F LINE 11BC6456 THIS CORNER DEMARCATED BY PH 11BC679

011BC00664 Section and Notes

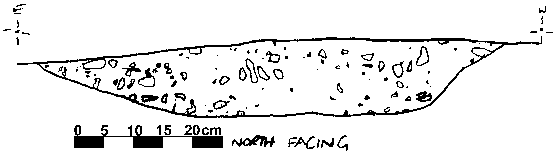

011BC00664 North Facing Section

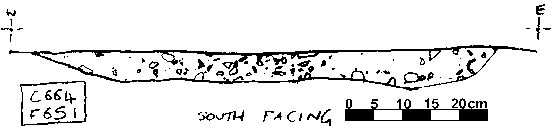

011BC00664 South Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00664 DITCH CUT LINEAR
145
77
14
 WIDE U POSSIBLE PARTITION WALL DITCH 340 CM FROM EAST END OF POST IN TRENCH STRUCTURE APPEARS TO HAVE GAP AND MAY CONTINUE N BUT UNDER R & F 11BC646

011BC00651 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00651 DITCH FILL LINEAR
0
0
0
 WIDE U FILL OF POST IN TRENCH STRUCTURE COMPRISING WALL CUTS 11BC641 TO 644 & 664 NO DIMENSIONS GIVEN FOR THIS REASON

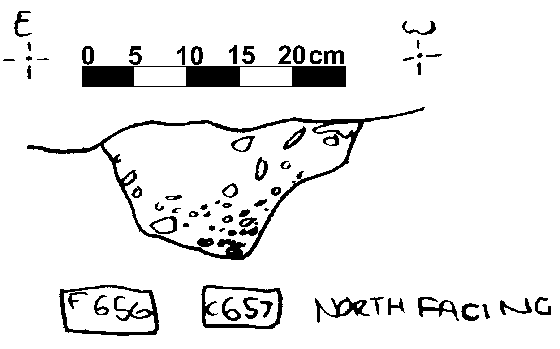

011BC00657 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00656 POST HOLE FILL OVATE
47
23
15
 USHAPED POSSIBLE PH CONTAINS A FEW STONE FRAGS 0.5 TO 2 CM IN SIZE
011BC00657 POST HOLE CUT OVATE
47
23
15
 USHAPED POSSIBLE PH

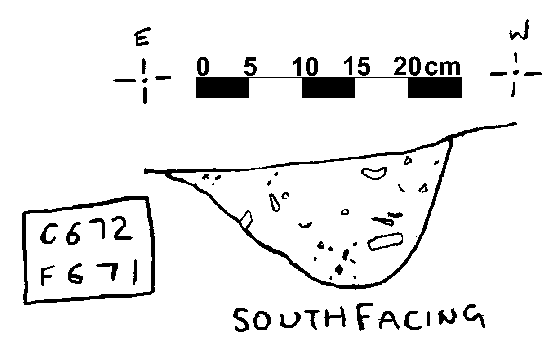

011BC00672 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00671 POST HOLE FILL OVATE
44
28
14
 ROUND BASED PH AT NE CORNER OF POST IN TRENCH STRUCTURE SEALED BY R & F 11BC646 CONTAINS VERY LITTLE STONE FRAGS <0.5 TO 1 CM IN SIZE
011BC00672 POST HOLE CUT OVATE
44
28
14
 ROUND BASED PH AT NE CORNER OF POST IN TRENCH STRUCTURE SEALED BY R & F LINE 11BC646

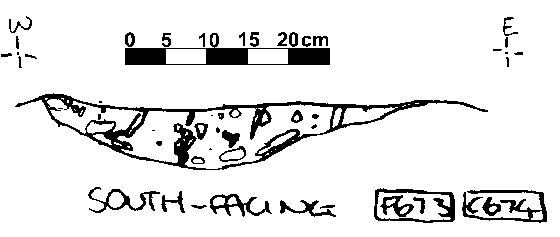

011BC00674 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00673 POST HOLE FILL OVATE
40
39
9
 ROUND BASED PH AT SW CORNER OF POST IN TRENCH STRUCTURE SEALED BY R & F LINE 11BC646 CONTAINS CHALK AND GRAVEL FRAGS <0.5 TO 2 CM IN SIZE N
011BC00674 POST HOLE CUT OVATE
40
39
9
 ROUND BASED PH AT SW CORNER OF POST IN TENCH STRUCTURE SEALED BY R & F LINE 11BC646

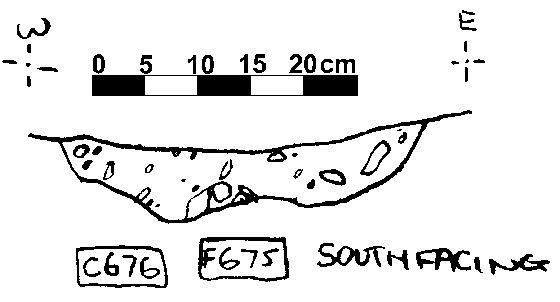

011BC00676 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00675 POST HOLE FILL OVATE
45
35
7
 ROUND BASED PH AT W END OF S WALL 11BC643 OF POST IN TRENCH STRUCTURE SEALED BY R & F LINE 11BC646 CONTAINS CHALK FRAGS <0.5 TO 1 CM IN SIZE
011BC00676 POST HOLE CUT OVATE
45
35
0
 ROUND BASED PH AT W END OF S WALL 11BC643 OF POST IN TRENCH STRUCTURE

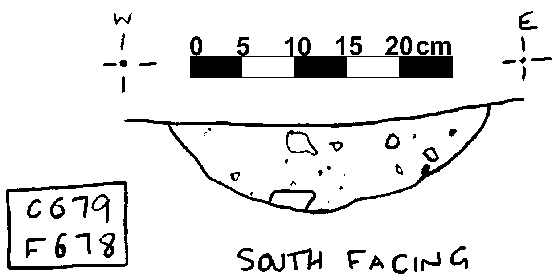

011BC00679 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00678 POST HOLE FILL OVATE
41
40
23
 USHAPED PH AT NE CORNER OF POST IN TRENCH STRUCTURE SEALED BY R & F LINE 11BC646 CONTAINS A VERY FEW CHALK FRAGS <0.5 TO1 CM IN SIZE
011BC00679 POST HOLE CUT OVATE
41
40
23
 USHAPED PH AT NE CORNER OF POST IN TRENCH STRUCTURE SEALED BY R & F LINE 11BC646

Objects By Context


KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
011BC00651 AA ROMAN POTTERY SHERD   ?R-B 1
011BC00651 AB No Entry POTTERY SHERD     1
011BC00651 AC No Entry STONE COKE FRAGMENT     1
011BC00651 AD ROMAN POTTERY SHERD   R-B 1
011BC00651 AE MEDIEVAL POTTERY SHERD   ?MED 1
011BC00651 AG EARLY SAXON POTTERY SHERD   ANGLIAN III 1
011BC00651 AH ROMAN POTTERY SHERD   ?R-B 1
011BC00651 AI ROMAN POTTERY SHERD   R-B 1
011BC00651 AJ ROMAN POTTERY SHERD   GREY WARE 1
011BC00651 AK No Entry POTTERY SHERD     1
011BC00651 AL No Entry POTTERY SHERD     1
011BC00651 AM No Entry POTTERY SHERD     1
011BC00651 AN No Entry STONE STONE   NAT IRON 1
011BC00651 AO ROMAN POTTERY SHERD   GREY WARE 1
011BC00651 AP ROMAN POTTERY SHERD   R-B 1
011BC00651 AQ ROMAN POTTERY SHERD   GREY WARE 1
