West Heslerton: Anglian Settlement: Structural CatalogueWest Heslerton: Anglian Settlement: Structural Catalogue

011BC10017

Post Hole Structure

Post-Hole Structure Details

Length

406

Width

270

Area

10.96 sq. m

Ratio

1.5:1

Number of Posts

Deepest

011BC00900

Shallowest

011BC00888

Average Depth

North Wall

6 Posts

Average Depth

East Wall

2 Posts

Average Depth

South Wall

4 Posts

Average Depth

West Wall

1 Post

Average Depth

Interior Divisions:

Possibly some internal posts.

Highest Elevation Value

5523

011BC00888

Lowest Elevation Value

5467

011BC00900

Bearing

82 degrees

Plank\Post

Post

Doorways

Unknown

Repairs:

Structural Class

Material Culture

Number of Objects

Number of Animal Bones

Environmental

Phasing
Discussion

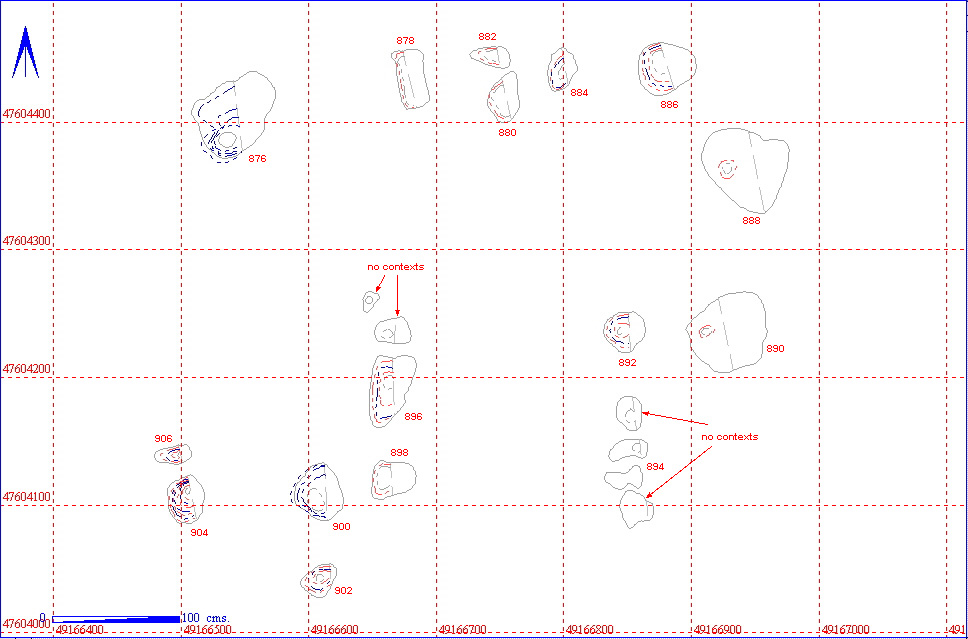

A group of post holes in the north/west of area 11BC, possibly forming a small east/west aligned structure. The arrangement of the post holes is unusual, especially the two large, shallow ones in the east side. Only one post hole was recovered that may indicate the presence of the west wall (011BC00906).

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
011BC10017	011BC00876	011BC00875
	011BC00878	011BC00877
	011BC00880	011BC00879
	011BC00882	011BC00881
	011BC00884	011BC00883
	011BC00886	011BC00885
	011BC00888	011BC00887
	011BC00890	011BC00889
	011BC00892	011BC00891
	011BC00894	011BC00893
	011BC00896	011BC00895
	011BC00898	011BC00897
	011BC00900	011BC00899
	011BC00902	011BC00901
	011BC00904	011BC00903
	011BC00906	011BC00905

Structural Details

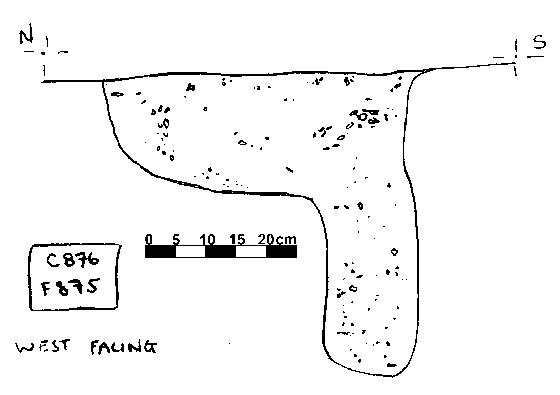

011BC00876 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00875	POST HOLE FILL	SUB-CIRCULAR	58	50	53	NARROW U	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00876	POST HOLE CUT	SUB-CIRCULAR	58	50	53	NARROW U	POST HOLE CUT. CUT INTO CHALK NATURAL. POST SITUATED IN S. ONE OF SERIES FORMING PART OF STRUCTURE M10017.

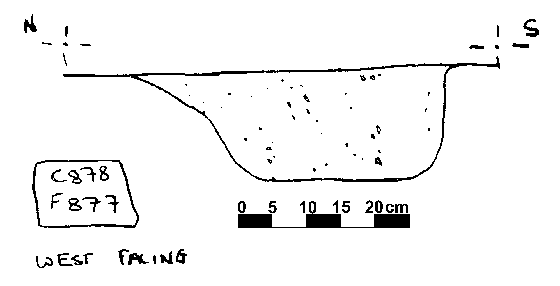

011BC00878 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00877	POST HOLE FILL	OVATE	49	28	16	U SHAPED	POST HOLE FILL. 5% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00878	POST HOLE CUT	OVATE	49	28	16	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. DISTURBED BY ANIMAL BURROW. ONE OF SERIES FORMING PART OF STRUCTURE M10017.

011BC00880 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00879	POST HOLE FILL	SUB-CIRCULAR	50	30	17	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00880	POST HOLE CUT	SUB-CIRCULAR	50	30	17	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. HALF OF DOUBLE POST HOLE WITH 881/882. ONE OF SERIES FORMING PART OF STRUCTURE M10017.

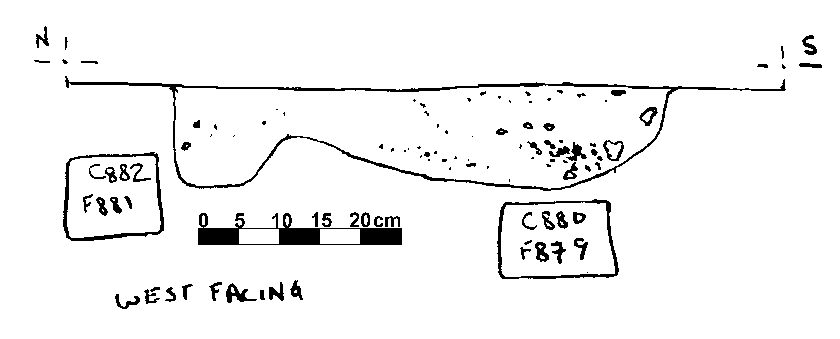

011BC00882 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00881	POST HOLE FILL	SUB-CIRCULAR	36	16	15	U SHAPED	POST HOLE FILL. 5% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00882	POST HOLE CUT	SUB-CIRCULAR	36	16	15	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. HALF OF DOUBLE POST HOLE WITH 879/880. ONE OF SERIES FORMING PART OF STRUCTURE M10017.

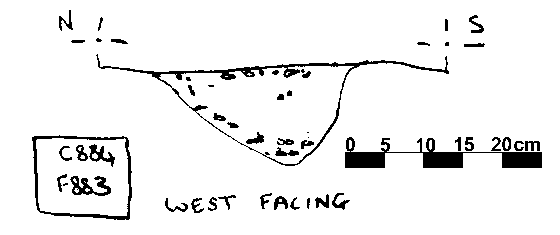

011BC00884 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00883	POST HOLE FILL	SUB-CIRCULAR	32	28	13	U SHAPED	POST HOLE FILL. 30% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00884	POST HOLE CUT	SUB-CIRCULAR	32	28	13	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING PART OF STRUCTURE M10017.

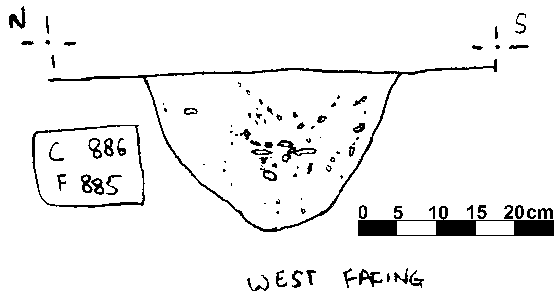

011BC00886 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00885	POST HOLE FILL	SUB-CIRCULAR	44	40	24	U SHAPED	POST HOLE FILL. 40% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00886	POST HOLE CUT	SUB-CIRCULAR	44	40	24	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

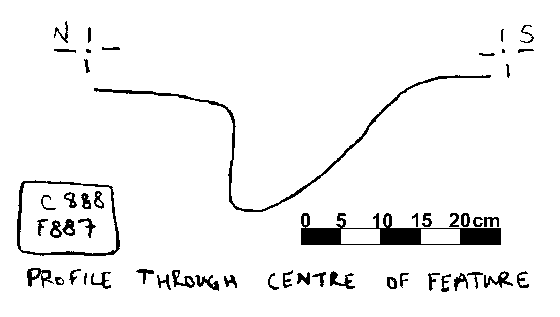

011BC00888 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00887	POST HOLE FILL	SUB-CIRCULAR	58	57	8	BOWL SHAPED	POST HOLE FILL. 45% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00888	POST HOLE CUT	SUB-CIRCULAR	58	57	8	BOWL SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

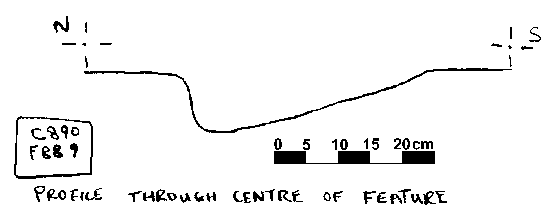

011BC00890 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00889	POST HOLE FILL	SUB-CIRCULAR	60	51	10	BOWL SHAPED	POST HOLE FILL. 80% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00890	POST HOLE CUT	SUB-CIRCULAR	60	51	10	BOWL SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

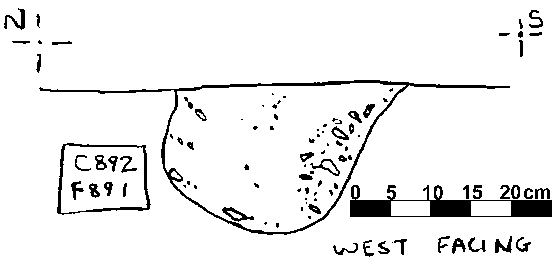

011BC00892 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00891	POST HOLE FILL	SUB-CIRCULAR	50	31	20	U SHAPED	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00892	POST HOLE CUT	SUB-CIRCULAR	50	31	20	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

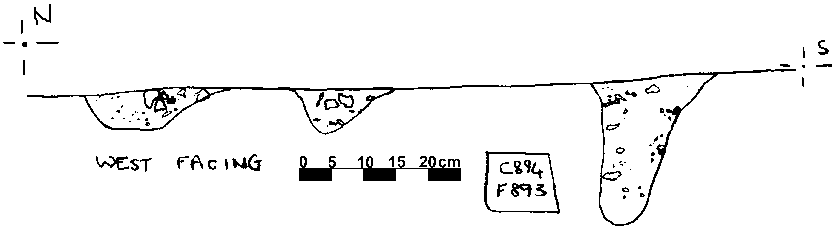

011BC00894 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00893	POST HOLE FILL	SUB-CIRCULAR	37	23	26	V SHAPED	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00894	POST HOLE CUT	SUB-CIRCULAR	37	23	26	V SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

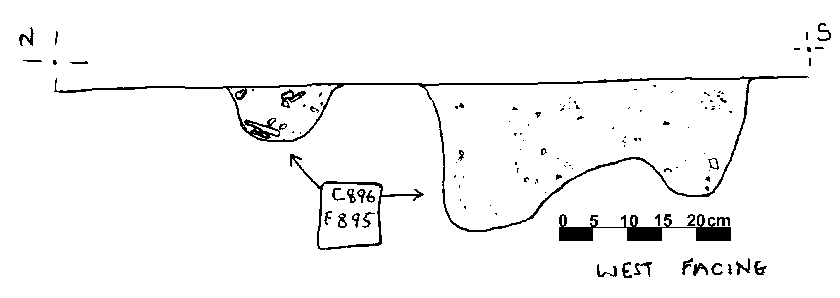

011BC00896 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00895	POST HOLE FILL	AMORPHOUS				COMPLEX	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00896	POST HOLE CUT	AMORPHOUS				COMPLEX	POST HOLE CUT. CUT INTO CHALK NATURAL. BADLY DAMAGED BY ANIMAL BURROWING. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

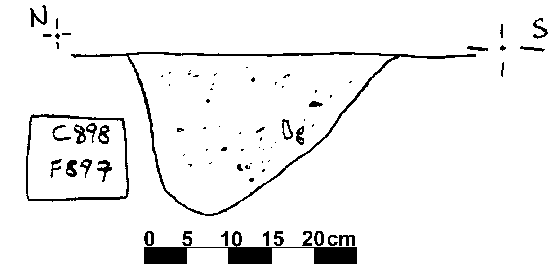

011BC00898 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00897	POST HOLE FILL	SUB-CIRCULAR	34	30	21	U SHAPED	POST HOLE FILL. 30% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00898	POST HOLE CUT	SUB-CIRCULAR	34	30	21	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

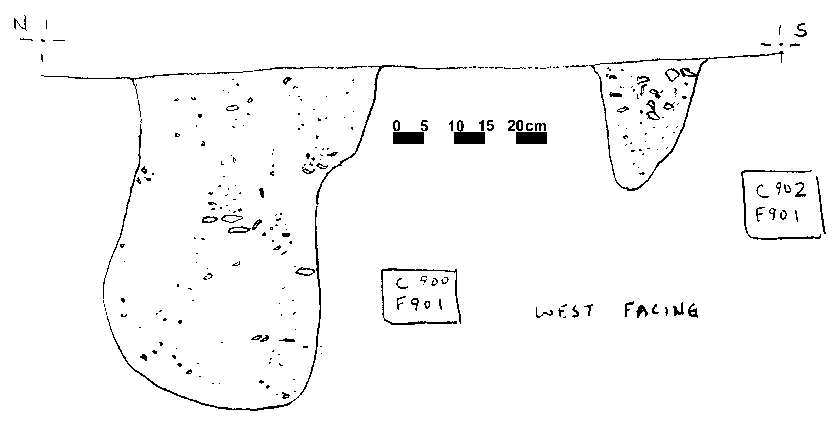

011BC00900 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00899	POST HOLE FILL	ROUND	47	47	54	U SHAPED	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00900	POST HOLE CUT	ROUND	47	47	54	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. SIDES SLIGHTLY UNDERCUT SURFACE. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

011BC00902 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00901	POST HOLE FILL	OVATE	30	30	23	NARROW U	POST HOLE FILL. 70% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00902	POST HOLE CUT	OVATE	30	30	23	NARROW U	POST HOLE CUT. CUT INTO CHALK NATURAL. N EDGE UNDERCUT SURFACE. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

011BC00904 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00903	POST HOLE FILL	ROUND	38	38	38	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00904	POST HOLE CUT	ROUND	38	38	38	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.

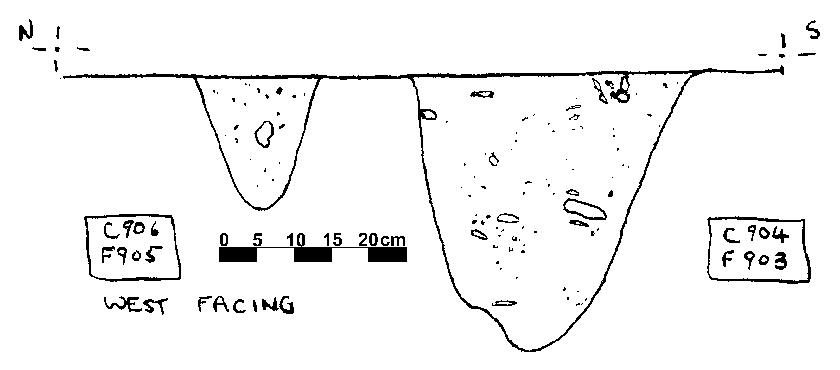

011BC00906 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00905	POST HOLE FILL	SUB-CIRCULAR	16	14	22	V SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00906	POST HOLE CUT	SUB-CIRCULAR	16	14	22	V SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. SMALL-POSSIBLE STAKEHOLE. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10017.
