011BC10016

Post Hole Structure

Post-Hole Structure Details

Length

Unknown

Width

350

Area

Unknown

Ratio

Unknown

Number of Posts

Deepest

011BC00842

Shallowest

011BC00840

Average Depth

North Wall

6 Posts

Average Depth

19.5

East Wall

5 Posts

Average Depth

South Wall

6 Posts

Average Depth

West Wall

Unknown

Average Depth

Interior Divisions:

None apparent

Highest Elevation Value

5494

011BC00842, 011BC00844 and 011BC00846

Lowest Elevation Value

5451

011BC00797, 011BC00799 and 011BC00820

Bearing

85 degrees

Plank\Post

Post

Doorways

Unclear

Repairs:

No repairs noted

Structural Class

Material Culture

Number of Objects

Number of Animal Bones

Environmental

Phasing
Discussion

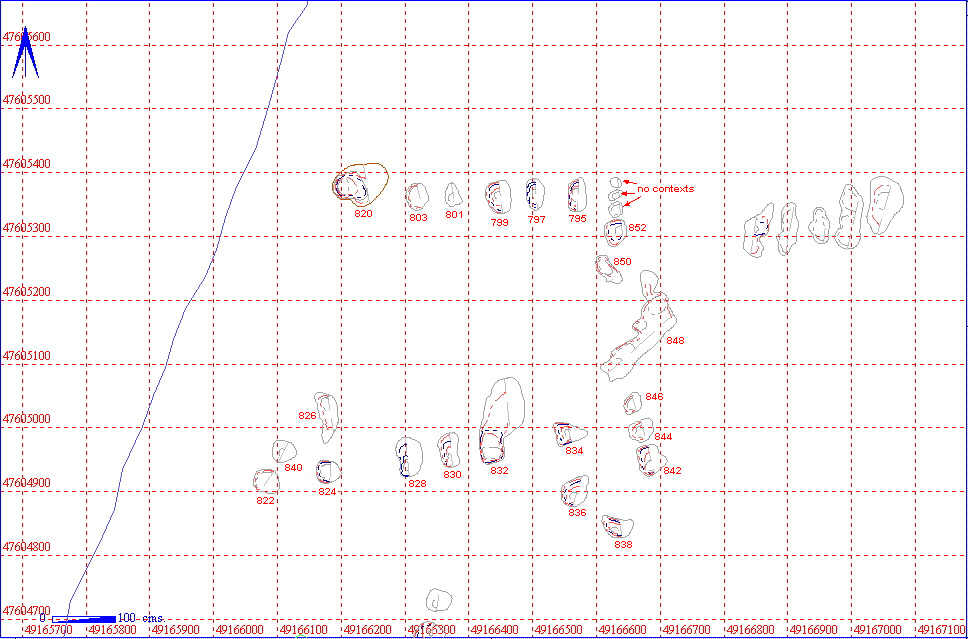

An east/west aligned post hole structure in the north/west corner of area 11BC. No features were recovered on the west side to indicate the presence of a west wall although the evidence may have been destroyed by the stream channel that runs close by.

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
011BC10016	011BC00795	011BC00794		2
	011BC00797	011BC00796
	011BC00799	011BC00798
	011BC00801	011BC00800
	011BC00803	011BC00802
	011BC00820	011BC00819
	011BC00822	011BC00821
	011BC00824	011BC00823
	011BC00826	011BC00825
	011BC00828	011BC00827
	011BC00830	011BC00829
	011BC00832	011BC00831
	011BC00834	011BC00833
	011BC00836	011BC00835
	011BC00838	011BC00837		1
	011BC00840	011BC00839
	011BC00842	011BC00841
	011BC00844	011BC00843
	011BC00846	011BC00845
	011BC00848	011BC00847
	011BC00850	011BC00849
	011BC00852	011BC00851

Structural Details

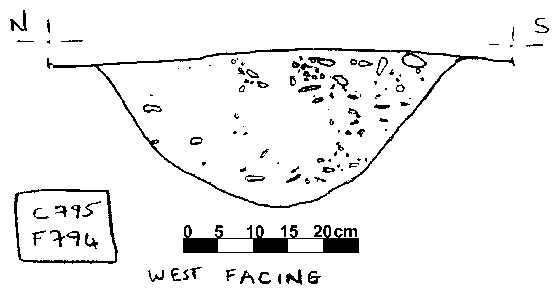

011BC00795 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00794	POST HOLE FILL	OVATE	46	26	23	U SHAPED	POST HOLE FILL. 35% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00795	POST HOLE CUT	OVATE	46	26	23	U SHAPED	POST HOLE CUT. POSS. DOUBLE POST. ONE OF SERIES FORMING POST HOLE BUILDING M10016.

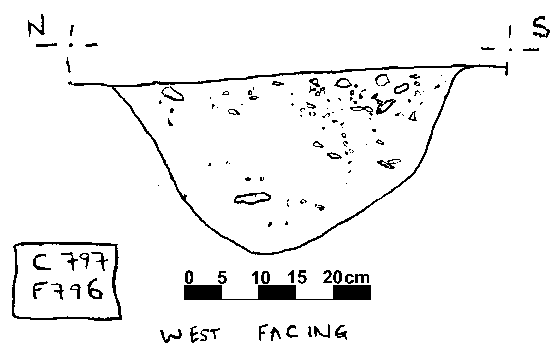

011BC00797 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00796	POST HOLE FILL	OVATE	46	28	24	U SHAPED	POST HOLE FILL. 40% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. AREA OF FEWER INCLUSIONS MAY INDICATE POST PIPE.
011BC00797	POST HOLE CUT	OVATE	46	28	24	U SHAPED	POST HOLE CUT. EVEN U SHAPED CUT. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10016.

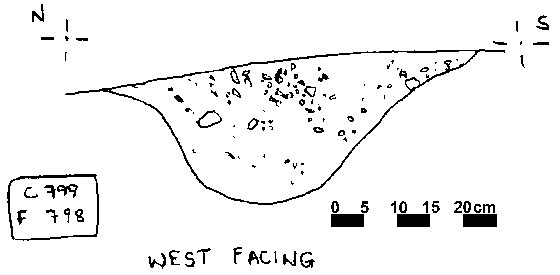

011BC00799 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00798	POST HOLE FILL	OVATE	61	48	23	U SHAPED	POST HOLE FILL. 50% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00799	POST HOLE CUT	OVATE	61	48	23	U SHAPED	POST HOLE CUT. EVEN U SHAPED CUT. ONE OF SERIES OF POST HOLES FORMING STRUCTURE M10016.

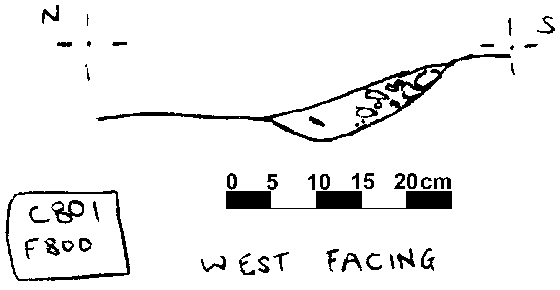

011BC00801 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00800	POST HOLE FILL	SUB-CIRCULAR	32	26	9	U SHAPED	POST HOLE FILL. 65% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00801	POST HOLE CUT	SUB-CIRCULAR	32	26	9	U SHAPED	POST HOLE CUT. VERY SHALLOW. MAY BE REMNANT OF POST HOLE FORMING STRUCTURE M10016.

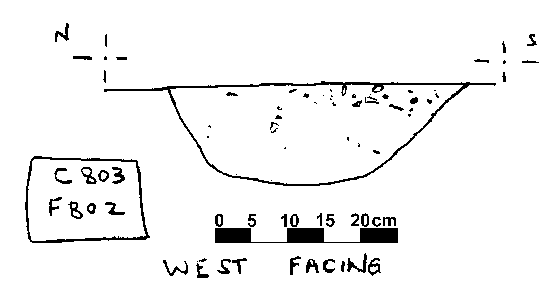

011BC00803 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00802	POST HOLE FILL	CIRCULAR	38	38	16	U SHAPED	POST HOLE FILL. 15% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BC00803	POST HOLE CUT	CIRCULAR	38	38	16	U SHAPED	POST HOLE CUT. EVEN U SHAPED CUT. ONE OF SERIES FORMING STRUCTURE M10016.

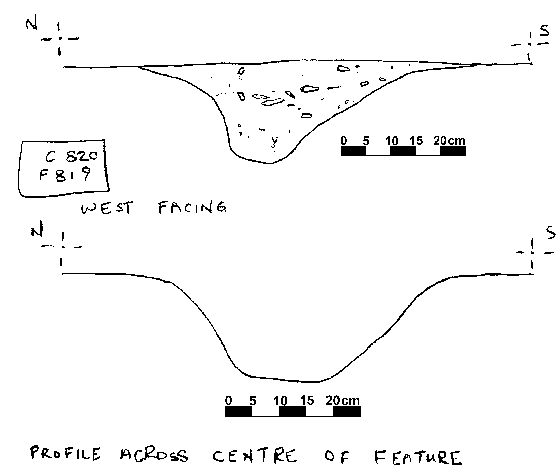

011BC00820 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00819	POST HOLE FILL	SUB-CIRCULAR	106	80	22	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE.
011BC00820	POST HOLE CUT	SUB-CIRCULAR	106	80	22	U SHAPED	POST HOLE CUT. ONE OF SERIES FORMING STRUCTURE M10016. SUB CIRCULAR WITH U SHAPED PROFILE.

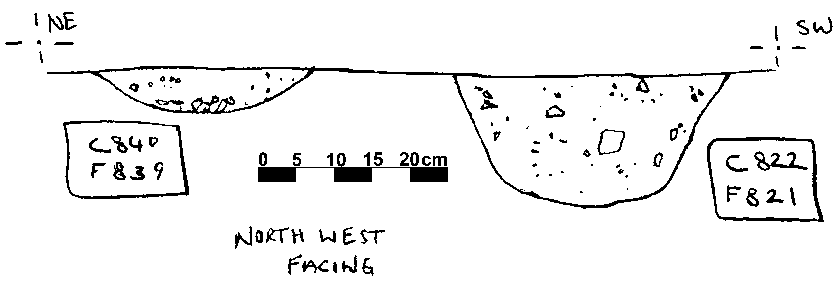

011BC00822 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00821	POST HOLE FILL	OVATE	35	35	19	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE.
011BC00822	POST HOLE CUT	OVATE	35	35	19	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES FORMING PART OF STRUCTURE M10016. OVATE WITH U SHAPED PROFILE.

011BC00824 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00823	POST HOLE FILL	OVATE	32	32	19	U SHAPED	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00824	POST HOLE CUT	OVATE	32	32	19	U SHAPED	POST HOLE CUT. OVATE WITH U SHAPED PROFILE. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

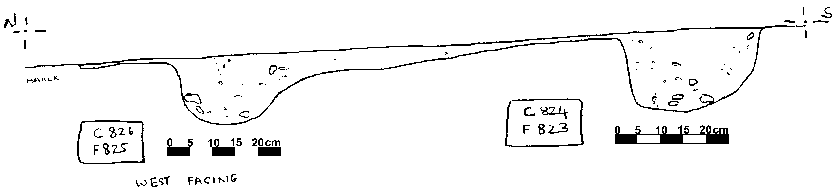

011BC00826 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00825	POST HOLE FILL	SUB-CIRCULAR	62	30	17	U SHAPED	POST HOLE FILL. 30% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00826	POST HOLE CUT	SUB-CIRCULAR	62	30	17	U SHAPED	POST HOLE CUT. SUB CIRCULAR WITH U SHAPED PROFILE. ONE OF SERIES FORMING PART OF STRUCTURE M10016. CUT INTO CHALK NATURAL.

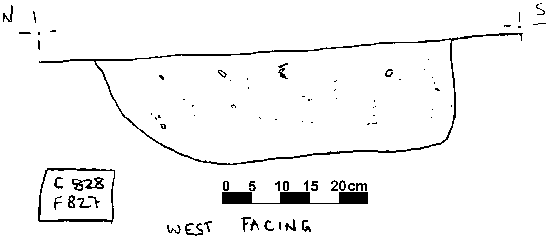

011BC00828 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00827	POST HOLE FILL	SUB-CIRCULAR	63	40	20	BOWL SHAPED	NO FINDS AND NO CHARCOAL. NO EVIDENCE OF POST PIPE. ONE OF POST HOLES IN SOUTHERN LONG WALL OF BUILDING. POSSIBLY A DOUBLE POST HOLE.
011BC00828	POST HOLE CUT	SUB-CIRCULAR	63	40	20	U SHAPED	POST HOLE CUT. SUB CIRCULAR WITH U SHAPED PROFILE. ONE OF SERIES FORMING PART OF STRUCTURE M10016. CUT INTO CHALK NATURAL.

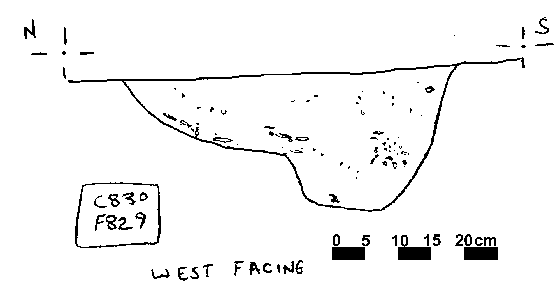

011BC00830 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00829	POST HOLE FILL	SUB-CIRCULAR	50	30	22	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00830	POST HOLE CUT	SUB-CIRCULAR	50	30	22	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. SHAPE INDICATES POSSIBLE DOUBLE POST HOLE. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

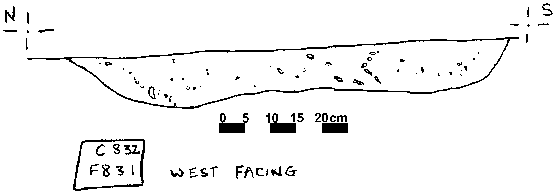

011BC00832 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00831	POST HOLE FILL	OVATE	16	31	25	U SHAPED	POST HOLE FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00832	POST HOLE CUT	OVATE	16	31	25	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ANIMAL BURROWED. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

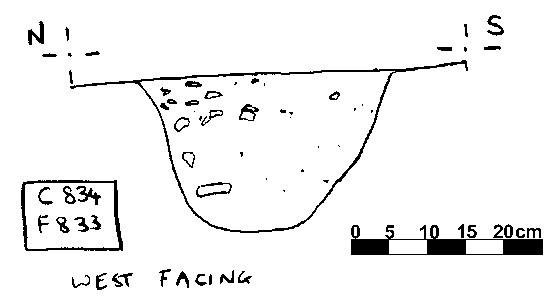

011BC00834 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00833	POST HOLE FILL	SUB-CIRCULAR	36	35	20	FLAT BASED U	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00834	POST HOLE CUT	SUB-CIRCULAR	36	35	20	FLAT BASED U	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

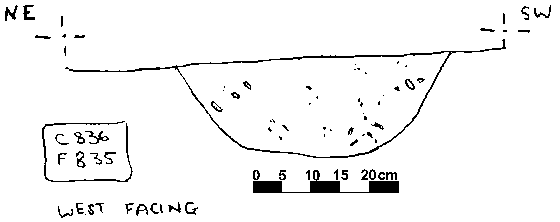

011BC00836 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00835	POST HOLE FILL	SUB-CIRCULAR	48	33	20	FLAT BASED U	POST HOLE FILL. 25% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00836	POST HOLE CUT	SUB-CIRCULAR	48	33	20	FLAT BASED U	POST HOLE CUT. CUT INTO CHALK NATURAL. PROFILE INDICATES POSSIBLE DOUBLE POST HOLE. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

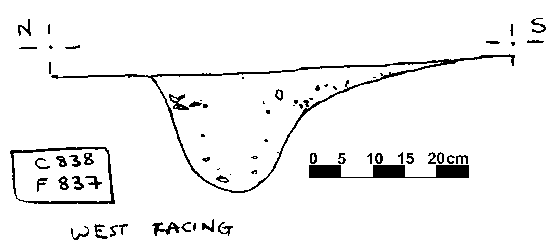

011BC00838 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00837	POST HOLE FILL	SUB-CIRCULAR	55	43	21	STEPPED U	POST HOLE FILL. 15% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00838	POST HOLE CUT	SUB-CIRCULAR	55	43	21	STEPPED U	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

011BC00840 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00839	POST HOLE FILL	ROUND	34	32	6	BOWL SHAPED	POST HOLE FILL. 45% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00840	POST HOLE CUT	ROUND	34	32	6	BOWL SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. VERY SHALLOW. OUTER POST HOLE OF DOUBLE LINE FORMING SIDE OF STRUCTURE M10016.

011BC00842 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00841	POST HOLE FILL	OVATE	46	40	25	STEPPED V	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00842	POST HOLE CUT	OVATE	46	40	25	STEPPED V	POST HOLE CUT. CUT INTO CHALK NATURAL. OBSCURED BY MEDIEVAL R&F. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

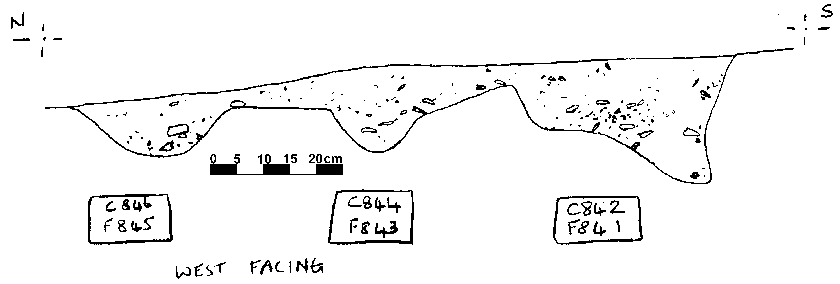

011BC00844 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00843	POST HOLE FILL	SUB-CIRCULAR	40	40	16	V SHAPED	POST HOLE FILL. 35% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00844	POST HOLE CUT	SUB-CIRCULAR	40	40	16	V SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

011BC00846 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00845	POST HOLE FILL	SUB-CIRCULAR	34	30	18	U SHAPED	POST HOLE FILL. 15% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00846	POST HOLE CUT	SUB-CIRCULAR	34	30	18	U SHAPED	POST HOLE CUT. CUT INTO CHALK NATURAL. EVEN U SHAPED PROFILE. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

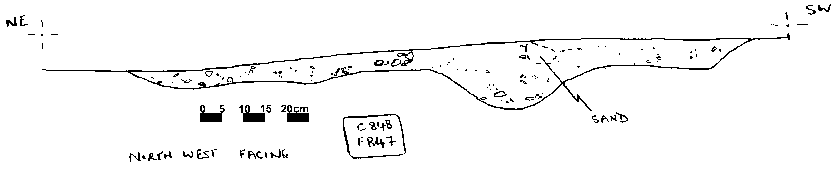

011BC00848 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00847	POST HOLE FILL	OVATE	72	33	17	STEPPED U	POST HOLE FILL. 20% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00848	POST HOLE CUT	OVATE	72	33	17	STEPPED U	POST HOLE CUT. CUT INTO CHALK NATURAL. PLANT OR ANIMAL DISTURBED. ONE OF SERIES FORMING PART OF STRUCTURE M10016.

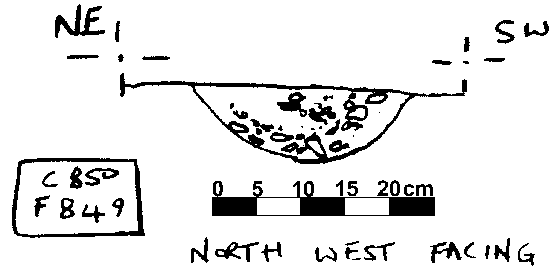

011BC00850 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00849	?NAT FILL	AMORPHOUS	56	20	15	COMPLEX	ANIMAL HOLE.
011BC00850	?NAT CUT	AMORPHOUS	56	20	15	COMPLEX	ANIMAL HOLE.

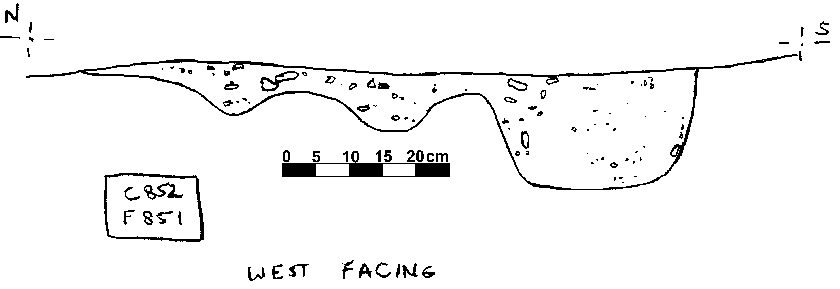

011BC00852 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BC00851	POST HOLE FILL	ROUND	40	40	19	FLAT BASED U	POST HOLE FILL. 10% CHALK INCLUSIONS. NO FINDS OR CHARCOAL. NO EVIDENCE OF POST PIPE VISIBLE.
011BC00852	POST HOLE CUT	ROUND	40	40	19	FLAT BASED U	POST HOLE CUT. CUT INTO CHALK NATURAL. OVERCUT INTO ANIMAL BURROW. ONE OF SERIES OF POST HOLES FORMING PART OF STRUCTURE M10016.

Objects By Context

KEY_ID	OBJ	PERIOD	MATERIAL	TYPE	SUB_TYPE	CLASS	No
011BC00794	AA	EARLY SAXON	DAUB	BURNT DAUB			1
011BC00794	AB	EARLY SAXON	DAUB	BURNT DAUB			1
011BC00838	AA	MEDIEVAL	POTTERY	SHERD		?MED	1
