011BC10005

Post Hole Structure



Post-Hole Structure Details
Length  630 Width  400
Area   25.2 sq. m Ratio 1.6:1
Number of Posts  22 Deepest 19 011BC00266 Shallowest  10 011BC00260, 011BC00348, 011BC00378 and 011BC00382
Average Depth
 13
North Wall   4 Posts Average Depth  13.5
East Wall   6 Posts Average Depth  13
South Wall   4 Posts Average Depth  13
West Wall   3 Posts Average Depth  12
Interior Divisions:  Possible row of three post holes roughly dividing structure into two.
Highest Elevation Value  5537  011BC00246
Lowest Elevation Value  5509  011BC00262 and 011BC00266
Bearing   167 degrees
Plank\Post  Post and Trench A small slot (011BC00370) recovered in the north/west corner may indicate a building trench.
Doorways 1 clear doorway centrally located in the east long wall.
Repairs:  No repairs noted
Structural Class
Material Culture  Number of Objects  0 Number of Animal Bones 0
Environmental

Phasing
Discussion

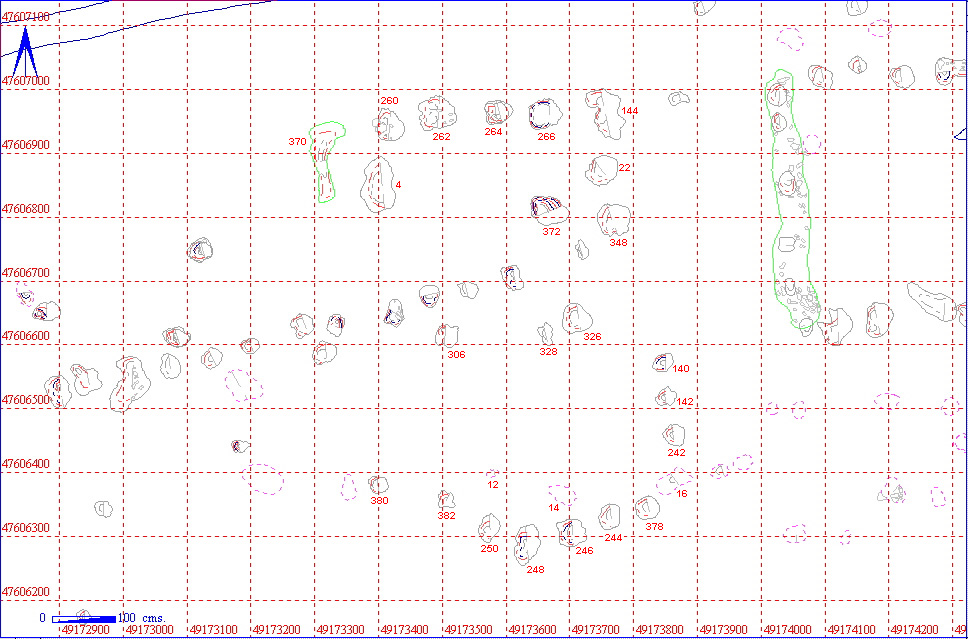

An unusual, north/south aligned structure in the north of area 11BC and immediately to the west of east/west aligned structure 011BC10004. The plan is partially obscured by the presence of a line of post holes, possibly a fence line, running approximately NNE/SSW through the structure (master 011BC10006). A small L shaped trench in the north/west corner is probably associated with this building (011BC00370) as is a line of three post holes (011BC00306, 011BC00326 and 011BC00328) to the south of fence line 011BC10006. These posts probably divided the structure into roughly equal halves. The west side of the building is unclear and few post holes could be determined to form the long wall.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
011BC10005
011BC00004
011BC00003


011BC00012
011BC00011


011BC00014
011BC00013


011BC00016
011BC00015


011BC00022
011BC00021


011BC00140
011BC00139


011BC00142
011BC00141


011BC00144
011BC00143


011BC00242
011BC00241


011BC00244
011BC00243


011BC00246
011BC00245


011BC00248
011BC00247


011BC00250
011BC00249


011BC00260
011BC00259


011BC00262
011BC00261


011BC00264
011BC00263


011BC00266
011BC00265


011BC00306
011BC00305


011BC00326
011BC00325


011BC00328
011BC00327


011BC00348
011BC00347

011BC00370
011BC00369

011BC00372
011BC00371


011BC00378
011BC00377

011BC00380
011BC00379

011BC00382
011BC00381



Structural Details

011BC00004 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00003 POST HOLE FILL OVATE
80
52
13
 FLAT BASED U CONTAINS CHALK PIECES 0.5 TO 2.5 CM IN SIZE
011BC00004 POST HOLE CUT OVATE
80
52
13
 FLAT BASED U INITIALLY WAS UNDEREXCAVATED THEREFORE FURTHER EXCAVATED TO ESTABLISH TRUE CHARACTER AND DIMENSIONS

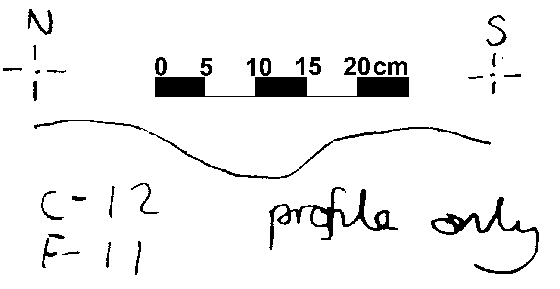

 011BC00012 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00011 ?NAT FILL

20
20
5
 IRREGULAR CONTAINS SILTY CHALK. FILL ALMOST COMPLETELY ERODED BY CLEANING AND SUBSEQUENT WEATHERING
011BC00012 ?NAT CUT

20
20
5
 IRREGULAR DIMENSIONS GIVEN ARE APPROXIMATIONS DUE TO THE INDISTINCT NATURE OF THIS FEATURE ORIGINALLY THOUGHT TO BE POSSIBLE PH

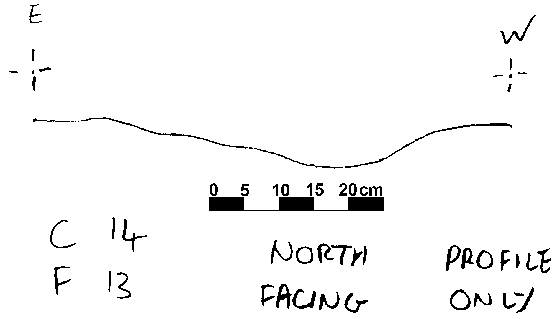

011BC00014 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00013 ?NAT FILL

33
33
7
 IRREGULAR CONTAINS MUCH SILTY CHALK. FILL HAS BEEN ALMOST TOTALLY ERODED BY CLEANING AND SUBSEQUENT WEATHERING
011BC00014 ?NAT CUT

33
33
7
 IRREGULAR DIMENSIONS GIVEN ARE APPROXIMATIONS DUE TO THE IRREGULAR NATURE OF THIS FEATURE ORIGINALLY THOUGHT TO BE POSSIBLE PH

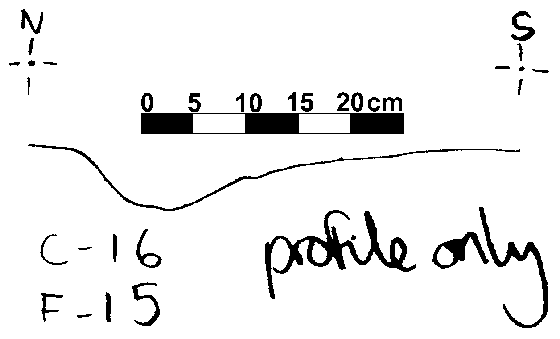

011BC00016 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00015 ?NAT FILL

35
30
10
 IRREGULAR CONTAINS MUCH SILTY AND CRUMBLY CHALK. FILL HAS BEEN HEAVILY ERODED BY CLEANING AND SUBSEQUENT WEATHERING
011BC00016 ?NAT CUT

35
30
10
 IRREGULAR DIMENSIONS GIVEN ARE APPROXIMATIONS DUE TO THE IRREGULAR NATURE OF THIS FEATURE ORIGINALLY THOUGHT TO BE POSSIBLE PH

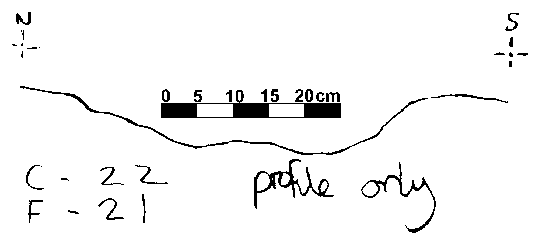

011BC00022 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00021 POST HOLE FILL ROUND
50
33
14
 WIDE U POST HOLE FILL
011BC00022 POST HOLE CUT ROUND
50
33
14
 WIDE U POST HOLE CUT

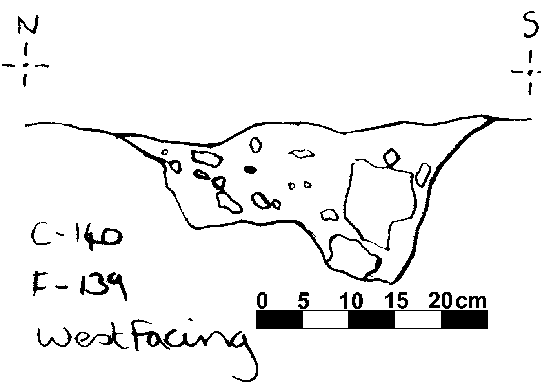

011BC00140 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00139 POST HOLE FILL OVATE
45
32
15
 USHAPED CONTAINS CHALK PIECES UP TO 5 CM IN SIZE AS WELL AS MUCH POWDERY CHALK
011BC00140 POST HOLE CUT OVATE
45
32
15
 USHAPED POST HOLE CUT

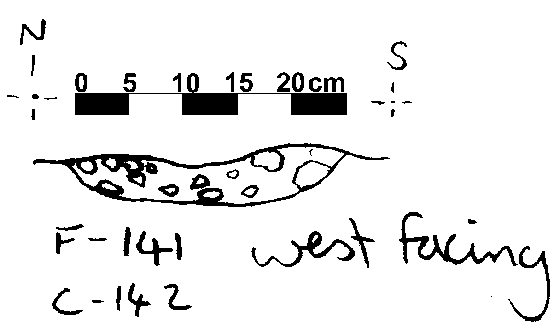

011BC00142 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00141 UNDEF FILL OVATE
35
30
13
 ROUND BASED CONTAINS GRANULAR AND LARGER CHALK < 0.5 TO 2.5 CM IN SIZE
011BC00142 UNDEF CUT OVATE
35
30
13
 ROUND BASED POSSIBLE POST-HOLE DEFINED ONLY AFTER FURTHER EXCAVATION

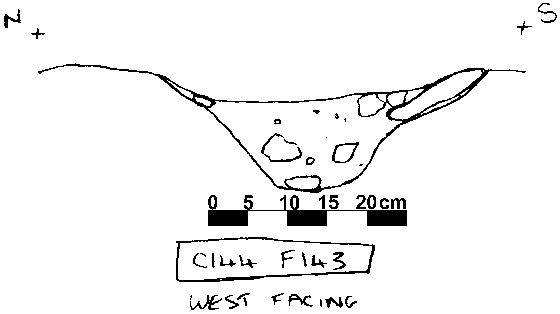

011BC00144 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00143 POST HOLE FILL OVATE
60
56
13
 ROUND BASED CONTAINS OCCASIONAL CHALK PIECE APPROX 3 CM IN SIZE
011BC00144 POST HOLE CUT OVATE
60
56
13
 ROUND BASED RE-EXCAVATED TO FIND TRUE PROPORTIONS

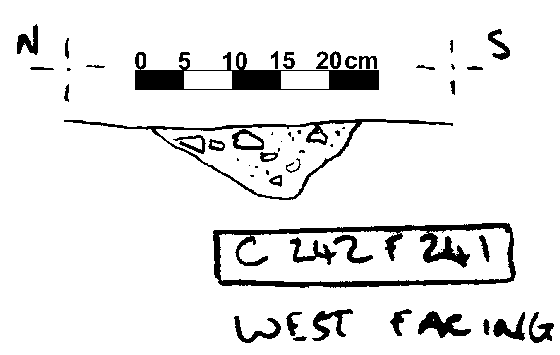

011BC00242 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00241 POST HOLE FILL OVATE
40
30
1200
 ROUND BASED CONTAINS CHALK PIECES 1 TO 6 CM IN SIZE AND MUCH CRUMBLY CHALK
011BC00242 POST HOLE CUT OVATE
40
30
12
 USHAPED RE-EXCAVATED TO FIND TRUE PROPORTIONS OF FEATURE

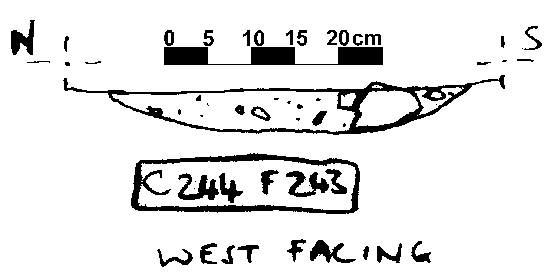

011BC00244 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00243 UNDEF FILL OVATE
42
40
11
 ROUND BASED CONTAINS CHALK PIECES 0.5 TO 6 CM IN SIZE ALSO MUCH CRUMBLY CHALK
011BC00244 UNDEF CUT OVATE
42
40
11
 ROUND BASED POSSIBLE POST-HOLE

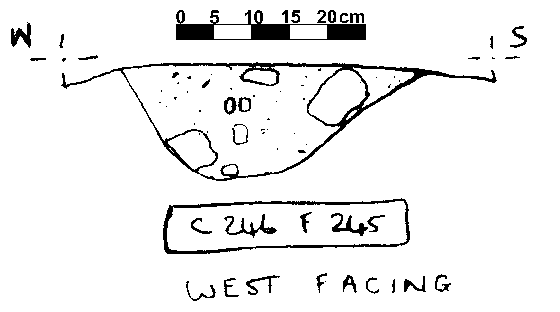

011BC00246 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00245 POST HOLE FILL ROUND
42
41
16
 USHAPED CONTAINS CHALK PIECES 1 TO 7 CM IN SIZE AND SILTY CHALK AT BASE OF FILL
011BC00246 POST HOLE CUT ROUND
42
41
16
 USHAPED POST HOLE CUT

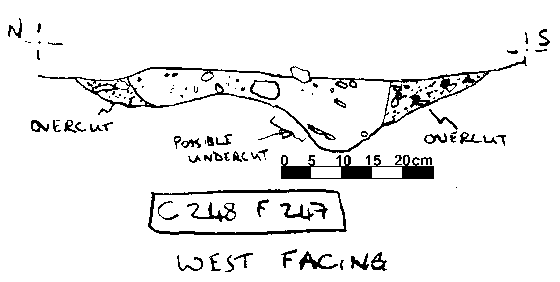

011BC00248 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00247 POST HOLE FILL OVATE
67
48
15
 WIDE U CONTAINS CHALK PIECES 0.5 TO 6 CM IN SIZE LARGER PIECES PROBABLY POST-PACKING MATERIAL
011BC00248 POST HOLE CUT OVATE
67
48
15
 WIDE U RE-EXCAVATED TO REMOVE POST-PACKING MATERIAL PROBABLE DOUBLE POST FORM

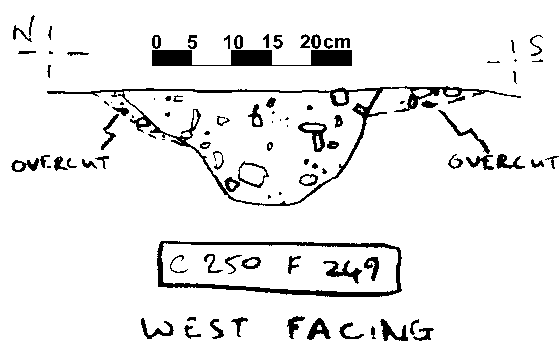

011BC00250 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00249 POST HOLE FILL OVATE
45
33
14
 FLAT BASED U CONTAINS CHALK PIECES 0.5 TO 2.5 CM IN SIZE AND SILTY CHALK LOWER IN TH EFILL
011BC00250 POST HOLE CUT OVATE
45
33
14
 FLAT BASED U POST HOLE CUT

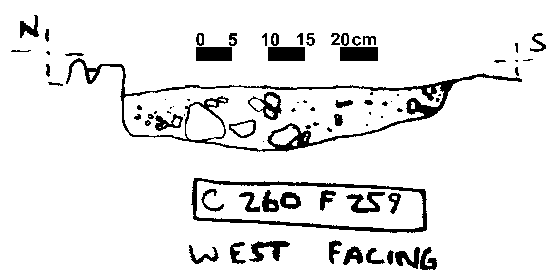

011BC00260 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00259 POST HOLE FILL SUB-RECTANGULAR
46
33
10
 COMPLEX CONTAINS CHALK PIECES 2.5 TO 15 CM IN SIZ LARGER PIECES POSSIBLY POST-PACKING MATERIAL
011BC00260 POST HOLE CUT SUB-RECTANGULAR
46
33
10
 COMPLEX PROBABLE DOUBLE POST-FORM

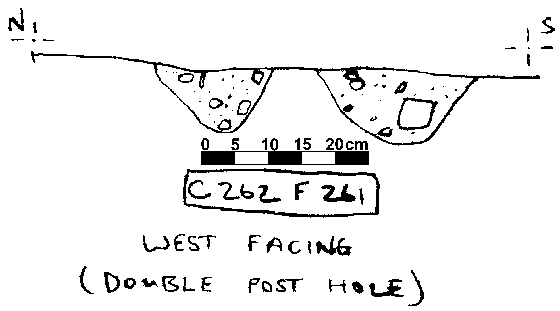

011BC00262 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00261 POST HOLE FILL SUB-RECTANGULAR
63
51
14
 WIDE U CONTAINS CHALK PIECES 0.5 TO 11 CM IN SIZE LARGER PIECES PROBABLE POST-PACKING MATERIAL
011BC00262 POST HOLE CUT SUB-RECTANGULAR
63
51
14
 WIDE U PROBABLE DOUBLE FORM POST-HOLE

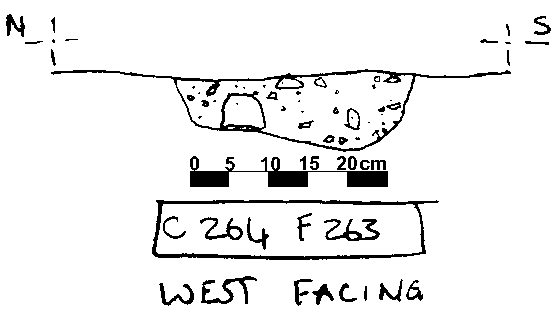

011BC00264 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00263 POST HOLE FILL SUB-RECTANGULAR
42
33
12
 WIDE U CONTAINS CHALK PIECES 1 TO 6 CM IN SIZE LARGER PIECES POSSIBLE POST-PACKING MATERIAL CRUMBLY CHALK LOWER IN FILL
011BC00264 POST HOLE CUT SUB-RECTANGULAR
42
33
12
 WIDE U RE-EXCAVATED TO FIND TRUE PROPORTIONS OF FEATURE

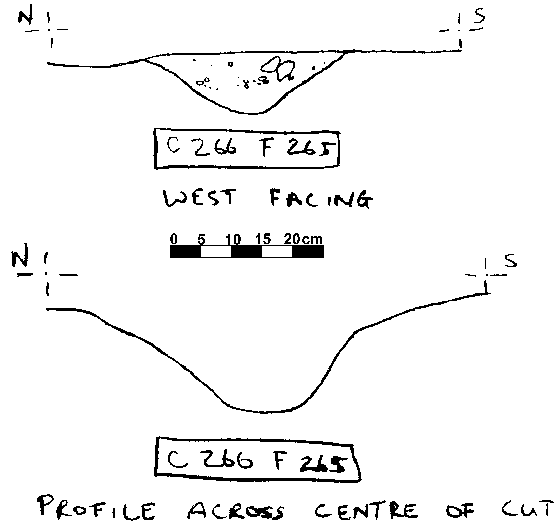

011BC00266 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00265 POST HOLE FILL SUB-RECTANGULAR
50
47
19
 WIDE U CONTAINS CHALK PIECES 1 TO 10 CM IN SIZ LARGER PIECES PROBABLY POST-PACKING MATERIAL GRITTY CHALK LOWER IN FILL
011BC00266 POST HOLE CUT SUB-RECTANGULAR
50
47
19
 WIDE U POST HOLE CUT

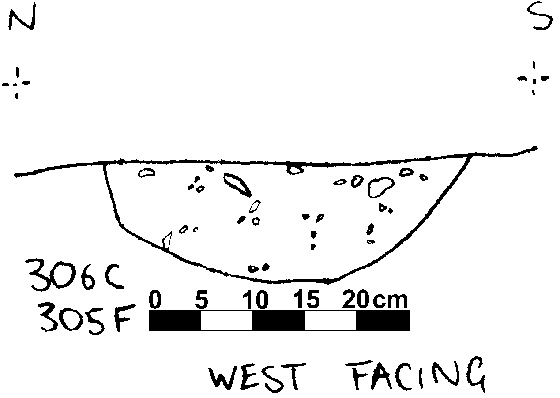

 011BC00306 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00305 POST HOLE FILL SUB-RECTANGULAR
40
38
10
 USHAPED CONTAINS CHALK 0.5 TO 1.5 CM IN SIZE AND SILTY CHALK LOWER IN THE FILL
011BC00306 POST HOLE CUT SUB-RECTANGULAR
40
38
10
 USHAPED RE-EXCAVATED TO FIND TRUE PROPORTIONS

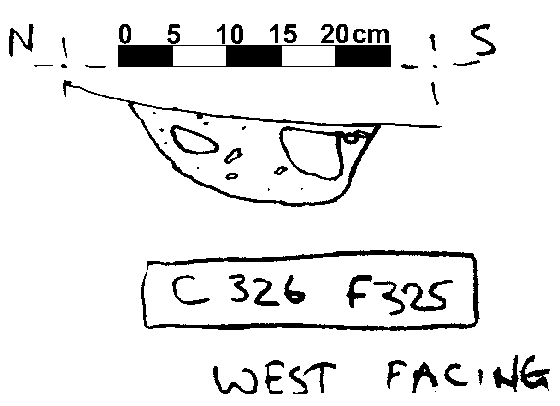

011BC00326 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00325 POST HOLE FILL SUB-RECTANGULAR
47
43
10
 FLAT BASED U CONTAINS CHALK PIECES 1 TO 4 CM IN SIZE
011BC00326 POST HOLE CUT SUB-RECTANGULAR
47
43
10
 FLAT BASED U RE-EXCAVATED TO DETERMINE TRUE PROPORTIONS OF FEATURE INITIALLY ONLY POST-PIPE WAS REMOVED

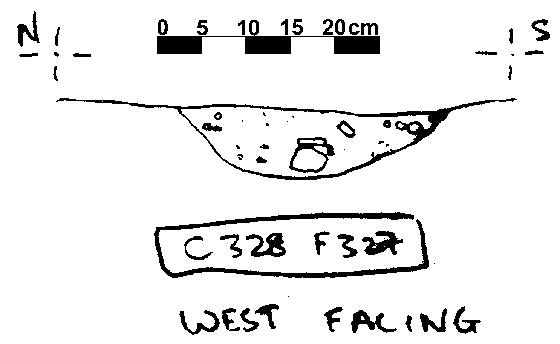

011BC00328 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00327 POST HOLE FILL OVATE
31
25
6
 WSHAPED CONTAINS CHALK PIECES 1 TO 2 CM IN SIZE
011BC00328 POST HOLE CUT OVATE
31
25
6
 WSHAPED APPEARS TO HAVE BEEN UNDER EXCAVATED ONLY DOUBLE POST-PIPES WERE REMOVED

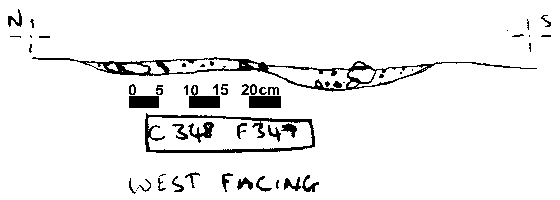

011BC00348 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00347 POST HOLE FILL OVATE
61
57
10
 WIDE U CONTAINS CHALK PIECES 1 TO 3.5 CM IN SIZE AS WELL AS GRITTY CHALK LOWER IN THE FILL
011BC00348 POST HOLE CUT OVATE
61
57
10
 WIDE U RE-EXCAVATED TO DETERMINE TRUE PROPORTIONS OF FEATURE

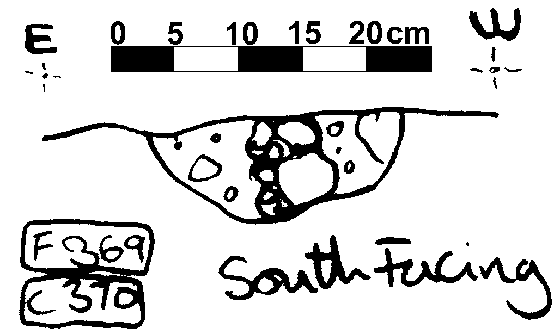

011BC00370 Section and Notes



KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00369 DITCH FILL LINEAR SEG.
126
60
11
 ROUND BASED CONTAINS MUCH GRITTY AND SILTY CHALK
011BC00370 DITCH CUT LINEAR SEG.
126
60
11
 ROUND BASED POST-TRENCH

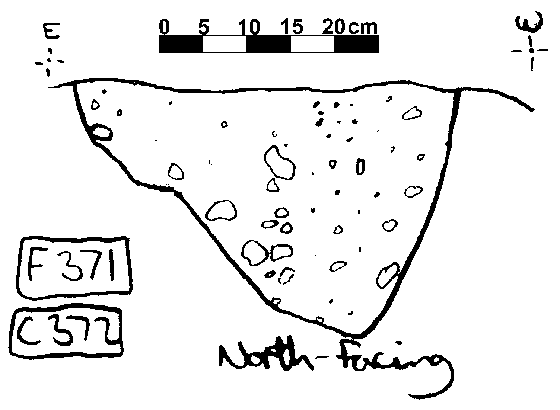

 011BC00372 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00371 POST HOLE FILL OVATE
57
44
30
 VERT.SIDE V.BASE CONTAINS OCCASIONAL CHALK 1 TO 5 CM IN SIZE
011BC00372 POST HOLE CUT OVATE
57
44
30
 VERT.SIDE V.BASE POST HOLE CUT

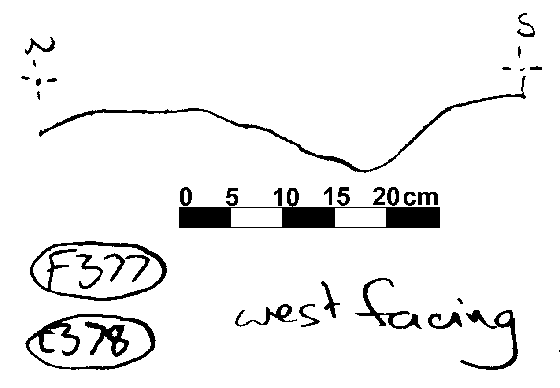

011BC00378 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00377 POST HOLE FILL OVATE
39
32
10
 USHAPED CONTAINS CHALK PIECES 1 TO 3 CM IN SIZE AS WELL AS MUCH CRUMBLY CHALK
011BC00378 POST HOLE CUT OVATE
39
32
10
 USHAPED POST HOLE CUT

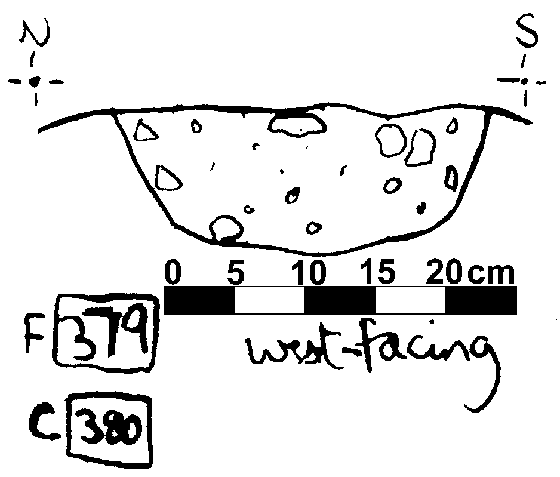

011BC00380 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00380 POST HOLE CUT OVATE
30
25
12
 VSHAPED POST HOLE CUT
011BC00379 POST HOLE FILL OVATE
30
25
12
 VSHAPED CONTAINS A FEW CHALK PIECES 1 TO 2 CM IN SIZE

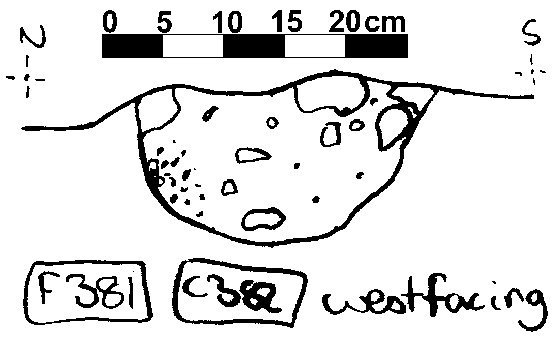

011BC00382 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
011BC00381 POST HOLE FILL SUB-RECTANGULAR
28
24
10
 FLAT BASED U CONTAINS A FEW CHALK PIECES 1 TO 7 CM IN SIZE
011BC00382 POST HOLE CUT SUB-RECTANGULAR
28
24
10
 FLAT BASED U POSSIBLE THAT ONLY POST-PIPE HAS BEEN EXCAVATED
