011BC10004

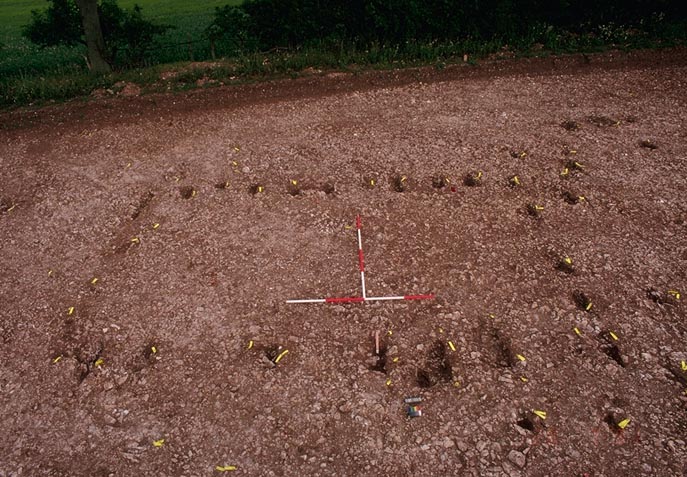

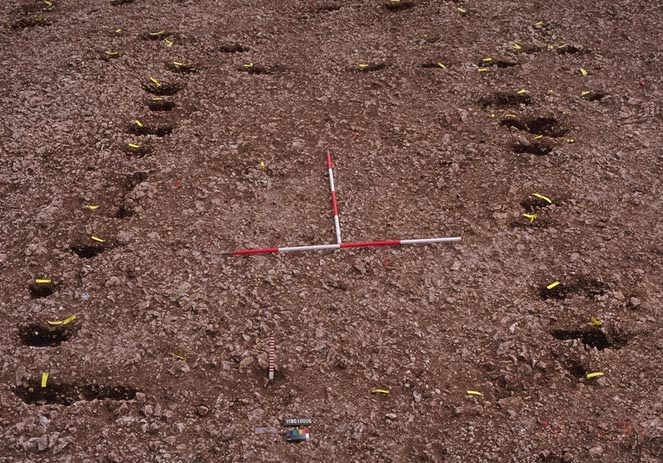

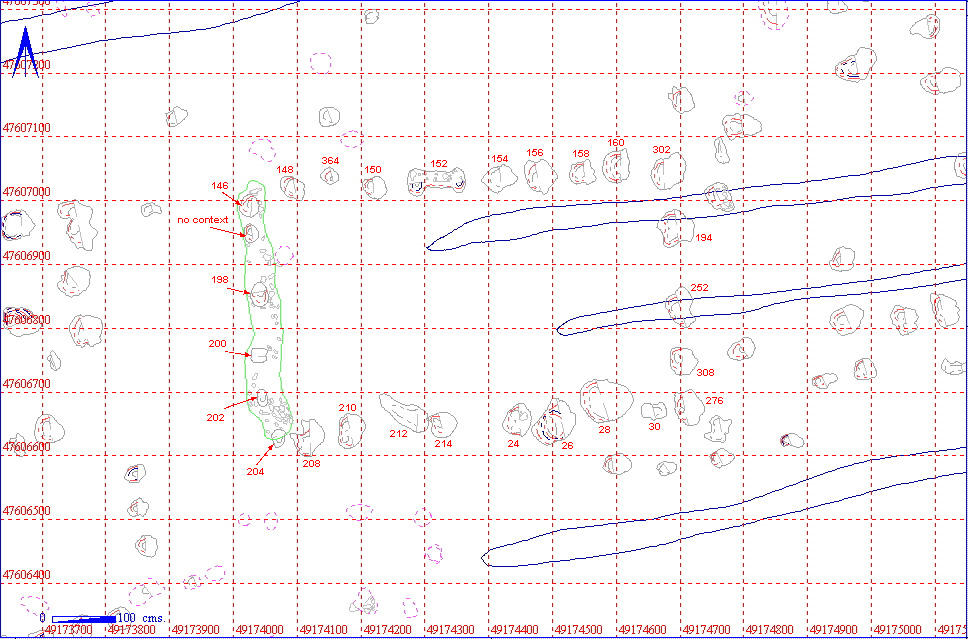

Post Hole Structure View of post hole structure from the west View of post hole structure from the south



Post-Hole Structure Details
Length 620 Width  340
Area   21.08 sq. m Ratio 1.8:1
Number of Posts 26 Deepest 22 011BC00026 Shallowest 4 011BC00200
Average Depth
 11
North Wall  9 Posts Average Depth 13
East Wall  3 Posts Average Depth 10
South Wall  10 Posts Average Depth 12
West Wall  5 Posts Average Depth 8.5
Interior Divisions: None apparent
Highest Elevation Value  5540  011BC00026
Lowest Elevation Value 5511  011BC00146, 011BC00160 and 011BC00194
Bearing   85 degrees
Plank\Post Post and trench
Doorways 2 doorways centrally located in the long walls.
Repairs: No repairs noted
Structural Class
Material Culture Number of Objects  3 Number of Animal Bones 0
Environmental

Phasing
Discussion

A small, east/west aligned structure in the north of area 11BC immediately to the east of north/south aligned structure 011BC10005. Evidence remained on the west short side of a shallow trench with small post holes cut through it, possibly indicative of how the entire structure was built. The structure is on the same alignment as larger post hole structure 011BC10010 to the south/west. Three objects were recovered from post hole 011BC00276, two of which were sherds of Early Saxon pottery.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
011BC10004 011BC00024 011BC00023
011BC00026 011BC00025
011BC00028 011BC00027
011BC00030 011BC00029
011BC00146 011BC00145
011BC00148 011BC00147
011BC00150 011BC00149
011BC00152 011BC00151
011BC00154 011BC00153
011BC00156 011BC00155
011BC00158 011BC00157
011BC00160 011BC00159
011BC00194 011BC00193
011BC00198 011BC00197
011BC00200 011BC00199
011BC00202 011BC00201
011BC00204 011BC00203
011BC00208 011BC00207
011BC00210 011BC00209
011BC00212 011BC00211
011BC00214 011BC00213
011BC00252 011BC00251
011BC00276 011BC00275 3
011BC00302 011BC00301
011BC00308 011BC00307
011BC00364 011BC00363

Structural Details

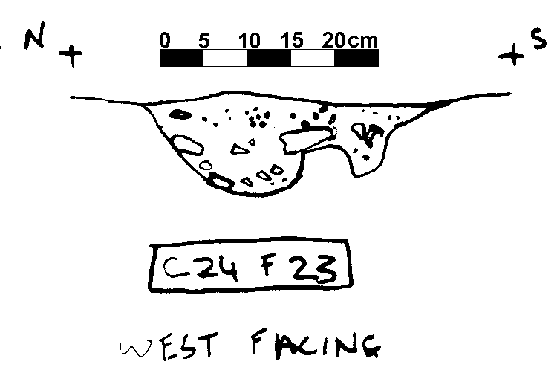

011BC00024 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00023 POST HOLE FILL SUB-RECTANGULAR 46 46 14 FLAT BASED U CONTAINS CHALK PIECES LESS THAN 0.5 TO 2 CM IN SIZE
011BC00024 POST HOLE CUT SUB-RECTANGULAR 46 46 14 FLAT BASED U INITIALLY UNDER EXCAVATED THEREFORE FURTHER EXCAVATION WAS REQUIRED TO ESTABLISH TRUE PROPORTIONS OF FEATURE

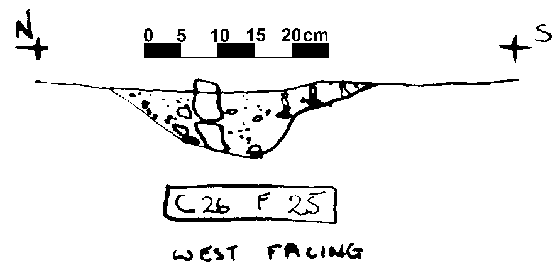

011BC00026 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00025 POST HOLE FILL AMORPHOUS 82 62 22 WIDE U CONTAINS CHALK PIECES 1 TO 5 CM IN SIZE LARGER PIECES POSSIBLY VESTIGES OF POST-PACKING MATERIAL
011BC00026 POST HOLE CUT AMORPHOUS 82 62 22 WIDE U INITIALLY UNDER EXCAVATED THEREFORE FURTHER EXCAVATION REQUIRED TO ESTABLISH TRUE PROPORTIONS OF FEATURE

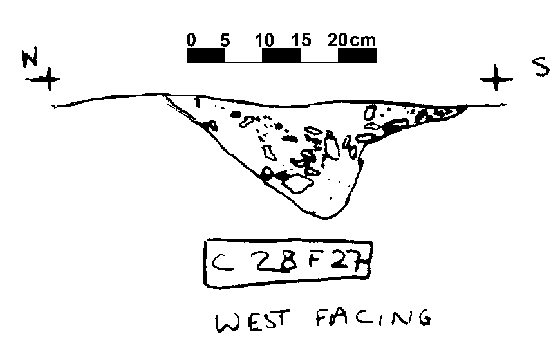

011BC00028 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00027 POST HOLE FILL SUB-RECTANGULAR 63 63 12 FLAT BASED U CONTAINS CHALK PIECES 1 TO 2.5 CM IN SIZE
011BC00028 POST HOLE CUT SUB-RECTANGULAR 63 63 12 FLAT BASED U INITIALLY UNDER EXCAVATED AND LIKELY THAT ONLY POST-PIPE REMOVED THEREFORE FURTHER EXCAVATED TO ESTABLISH TRUE PROPORTIONS OF FEATURE

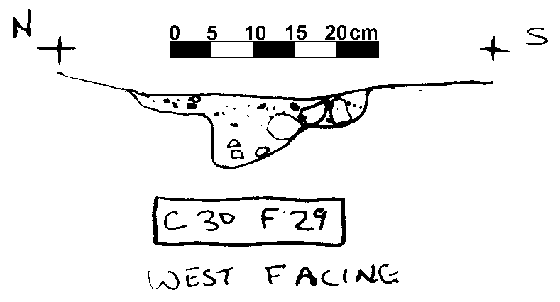

011BC00030 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00029 POST HOLE FILL SUB-RECTANGULAR 27 26 8 STEPPED U CONTAINS CHALK PIECES 3 TO 5 CM IN SIZE AS WELL AS TRACES OF SILTY CHALK
011BC00030 POST HOLE CUT SUB-RECTANGULAR 27 26 8 STEPPED U POST HOLE CUT

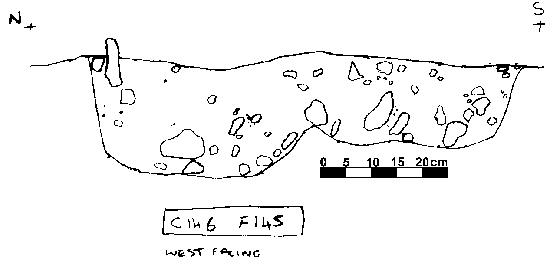

011BC00146 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00145 POST HOLE FILL OVATE 82 50 14 WIDE U CONTAINS CHALK PIECES 0.5 TO 5 CM IN SIZE AS WELL AS CRUMBLY CHALK IN THE LOWER AND CENTRAL PARTS OF THE FILL
011BC00146 POST HOLE CUT OVATE 82 50 14 WIDE U POSSIBLY TWO ADJACENT FEATURES

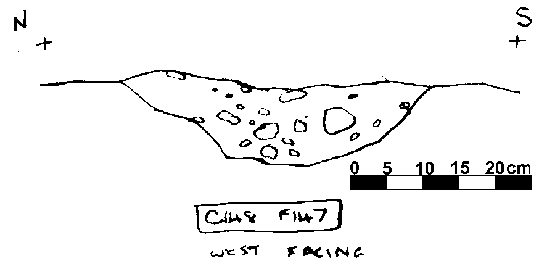

011BC00148 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00147 POST HOLE FILL ROUND 46 42 19 USHAPED CONTAINS CHALK 1 TO 4 CM IN SIZE
011BC00148 POST HOLE CUT ROUND 46 42 19 USHAPED RE-EXCAVATED TO FIND TRUE PROPORTIONS

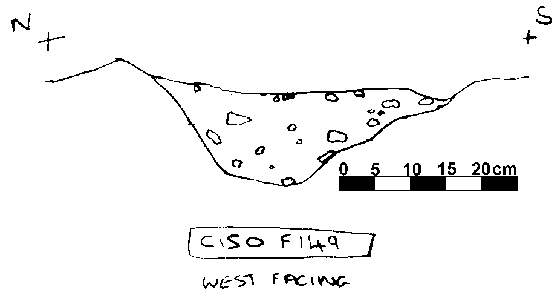

011BC00150 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00149 POST HOLE FILL ROUND 44 33 14 USHAPED CONTAINS CHALK PIECES 1 TO 3 CM IN SIZE
011BC00150 POST HOLE CUT ROUND 44 33 14 USHAPED POST HOLE CUT

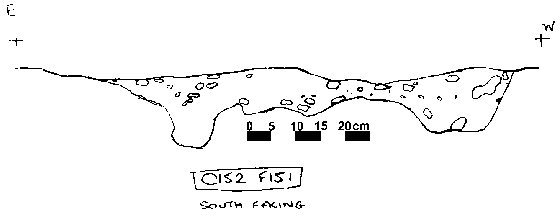

011BC00152 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00151 POST HOLE FILL SUB-CIRCULAR 93 49 16 COMPLEX CONTAINS CHALK PIECES < 0.5 TO 2.5 CM IN SIZE
011BC00152 POST HOLE CUT SUB-CIRCULAR 93 49 16 COMPLEX ORIGINALLY PERCIEVED AS ONE FEATURE THIS IS LIKELY TO BE TWO POST-HOLES

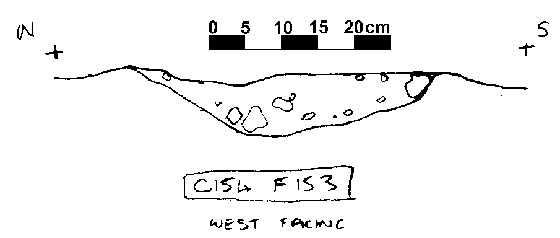

011BC00154 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00153 POST HOLE FILL OVATE 53 43 7 ROUND BASED CONTAINS CHALK PIECES 1 TO 2.5 CM IN SIZE
011BC00154 POST HOLE CUT SUB-CIRCULAR 53 43 7 FLAT BASED U INITIALLY UNDER EXCAVATED THEREFORE FUTHER EXCAVATION WAS REQUIRED TO DETERMINE TRUE PROPORTIONS

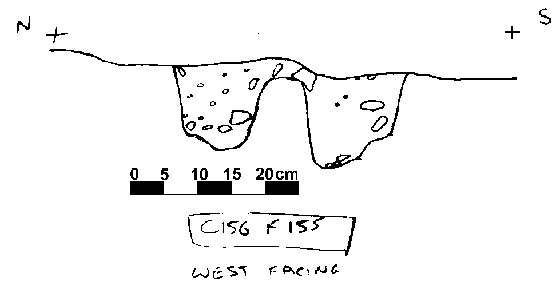

011BC00156 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00155 POST HOLE FILL SUB-RECTANGULAR 47 36 14 FLAT BASED U CONTAINS CHALK PIECES 0.5 TO 1.5 CM IN SIZE AND PIECES AVERAGING 3 CM IN SIZE THAT ARE POSSIBLE POST-PACKING MATERIAL
011BC00156 POST HOLE CUT SUB-RECTANGULAR 47 36 14 FLAT BASED U RE-EXCAVATED TO FIND TRUE EXTENT OF FEATURE DOUBLE POST-PIPES WERE REMOVED IN INITIAL EXCAVATION

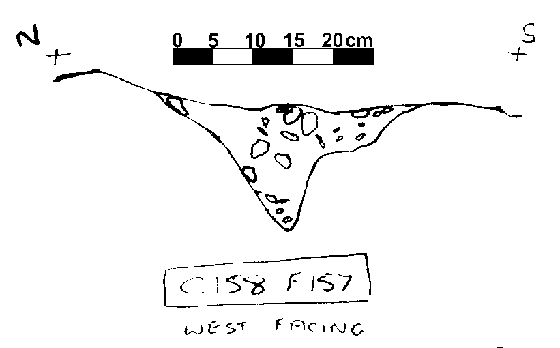

011BC00158 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00157 POST HOLE FILL SUB-RECTANGULAR 46 35 14 FLAT BASED U CONTAINS CHALK FRAGS 1 TO 3 CM IN SIZE
011BC00158 POST HOLE CUT SUB-RECTANGULAR 46 35 14 FLAT BASED U INITIALLY ONLY POST PIPE EXCAVATED THEREFORE REEXCAVATED TO FIND TRUE PROPORTIONS

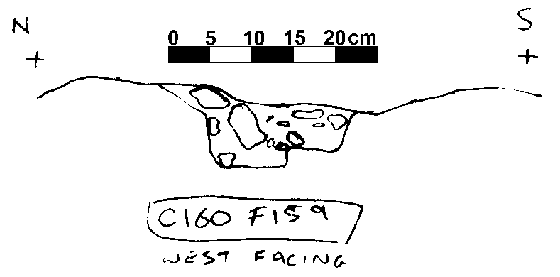

011BC00160 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00159 POST HOLE FILL OVATE 50 38 18 ROUND BASED CONTAINS CHALK FRAGS 1 TO 3 CM IN SIZE AND LARGER PIECES UP TO 8 CM IN SIZE POSSIBLE PACKING MATERIAL SMALL CARBON FRAGS AVERAGING 1 CM IN SIZE
011BC00160 POST HOLE CUT OVATE 50 38 18 ROUND BASED INITIALLY ONLY POST PIPES EXCAVATED THEREFORE REEXCAVATED TO FIND TRUE PROPORTIONS OF FEATURE

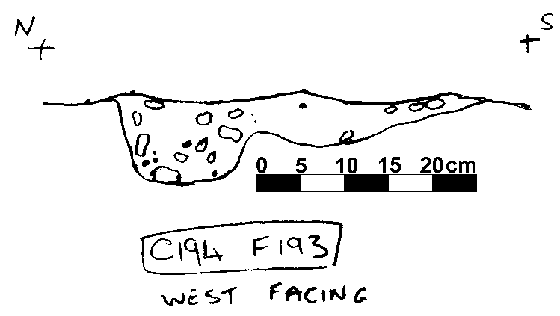

011BC00194 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00193 POST HOLE FILL ROUND 52 51 12 FLAT BASED U CONTAINS FEW FRAGS OF CHALK AVERAGING 1 CM IN SIZE AS WELL AS CRUMBLY CHALK LOWER IN THE FILL
011BC00194 POST HOLE CUT ROUND 52 51 12 FLAT BASED U APPEARS THAT ONLY POST PIPE WAS INITIALLY EXCAVATED THEREFORE REEXCAVATED TO FIND TRUE PROPORTIONS OF POST HOLE

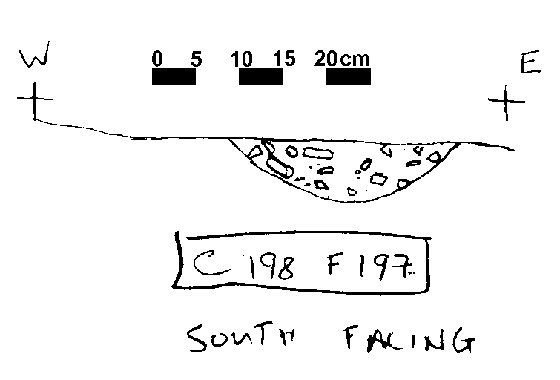

011BC00198 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00197 POST HOLE FILL OVATE 38 29 11 ROUND BASED CONTAINS A LITTLE CHALK 1 TO 3.5 CM IN SIZE
011BC00198 POST HOLE CUT OVATE 38 29 11 ROUND BASED POST HOLE CUT

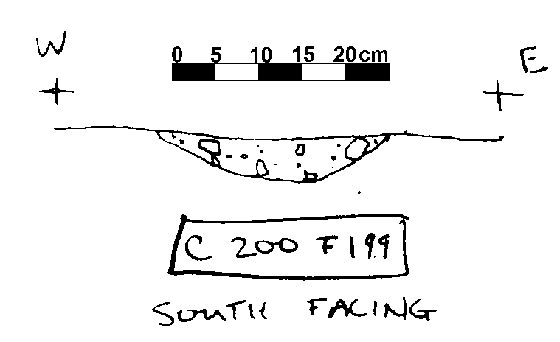

011BC00200 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00199 POST HOLE FILL OVATE 26 20 4 FLAT BASED U CONTAINS FEW CHALK PIECES 0.5 TO 3 CM IN SIZE
011BC00200 POST HOLE CUT OVATE 26 20 4 FLAT BASED U POSSIBLY UNDER EXCAVATED OR HEAVILY ERODED POST-HOLE

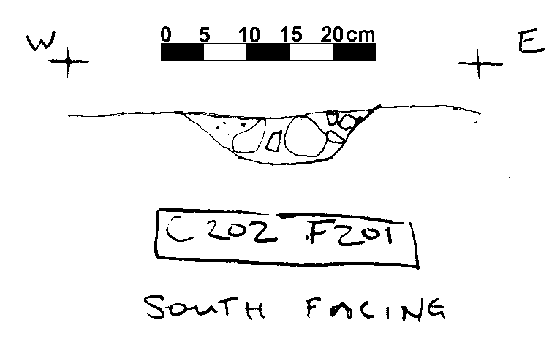

011BC00202 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00201 POST HOLE FILL OVATE 35 26 5 FLAT BASED U CONTAINS CHALK PIECES 3 TO 12 CM IN SIZE POSSIBLY POST-PACKING MATERIAL
011BC00202 POST HOLE CUT OVATE 35 26 5 FLAT BASED U POSSIBLE POST-HOLE WHICH IS HEAVILY ERODED OR UNDER EXCAVATED

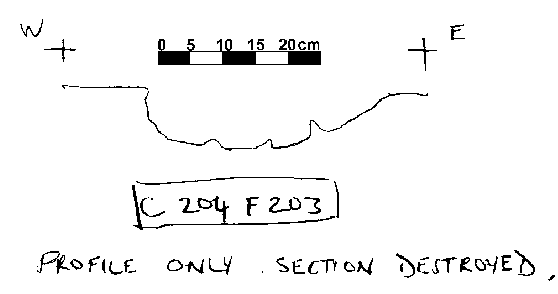

011BC00204 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00203 POST HOLE FILL OVATE 39 31 7 ROUND BASED CONTAIN CHALK PIECES < 0.5 TO 2.5 CM IN SIZE
011BC00204 POST HOLE CUT OVATE 39 31 7 ROUND BASED POSSIBLE INDICATION OF DOUBLE POST FORM IE POST-PACKING MATERIAL

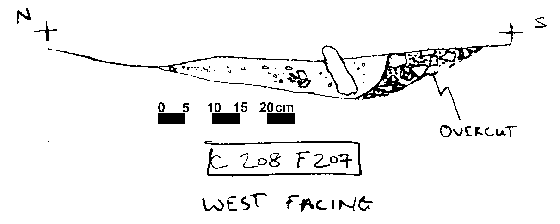

011BC00208 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00207 POST HOLE FILL OVATE 56 49 15 ROUND BASED CONTAINS CHALK < 0.5 TO 4 CM IN SIZE AS WELL AS WELL AS CRUMBLY CHALK LOWER IN FILL
011BC00208 POST HOLE CUT OVATE 56 49 15 ROUND BASED RE-EXCAVATED TO FIND TRUE PROPORTIONS OF FEATURE

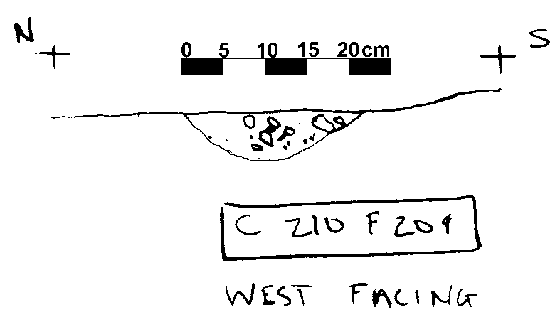

011BC00210 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00209 POST HOLE FILL   53 34 14 COMPLEX CONTAINS CHALK 0.5 TO 2.5 CM IN SIZE
011BC00210 POST HOLE CUT   53 34 14 COMPLEX RE-EXCAVATED TO DETERMINE TRUE EXTENT OF FEATURE

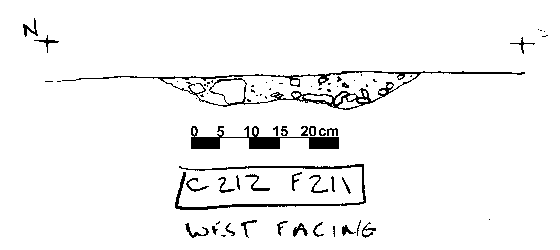

011BC00212 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00211 POST HOLE FILL OVATE 44 36 5 FLAT BASED U CONTAINS CHALK PIECES 0.5 TO 3 CM IN SIZE
011BC00212 POST HOLE CUT OVATE 44 36 5 FLAT BASED U SHALLOW POST HOLE EITHER HEAVILY ERODED OR UNDER EXCAVATED

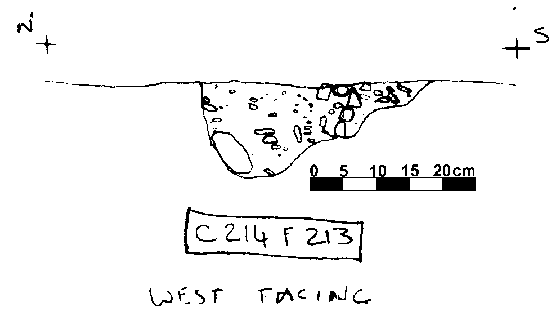

011BC00214 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00213 POST HOLE FILL OVATE 38 25 11 USHAPED CONTAINS OCCASIONAL CHALK PIECES 1 TO 12 CM IN SIZE
011BC00214 POST HOLE CUT OVATE 38 25 11 USHAPED LARGER BLOCKS OF CHALK MAY BE POST-PACKING MATERIAL

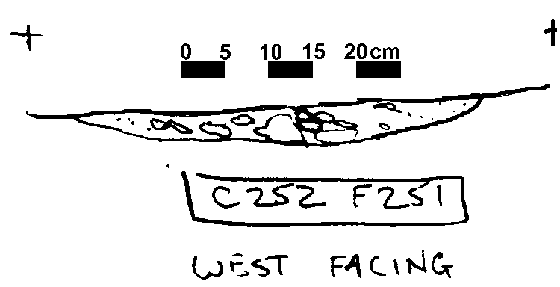

011BC00252 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00251 POST HOLE FILL OVATE 39 28 12 VERT.SIDE U.BASE CONTAINS OCCASIONAL CHALK PIECES 0.5 TO 2.5 CM IN SIZE
011BC00252 POST HOLE CUT OVATE 39 28 12 VERT.SIDE U.BASE R-EXCAVATED TO FIND TRUE PROPORTIONS OF FEATURE

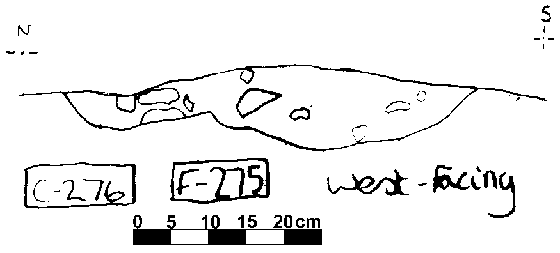

011BC00276 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00275 POST HOLE FILL OVATE 54 37 12 VERT.SIDE C.BASE CONTAINS OCCASI[ONAL CHALK 1.5 TO 3 CM IN SIZE
011BC00276 POST HOLE CUT OVATE 54 37 12 VERT.SIDE C.BASE POSSIBLE DOUBLE POST FORM

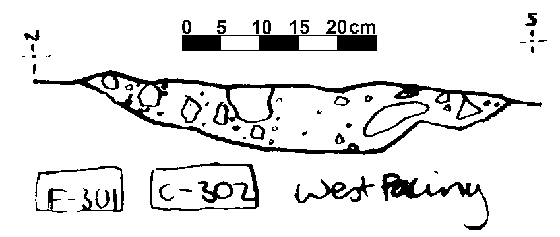

011BC00302 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00301 POST HOLE FILL OVATE 43 39 8 ROUND BASED CONTAINS OCCASIONAL CHALK 1 TO 6 CM IN SIZE
011BC00302 POST HOLE CUT OVATE 43 39 8 ROUND BASED POST HOLE CUT

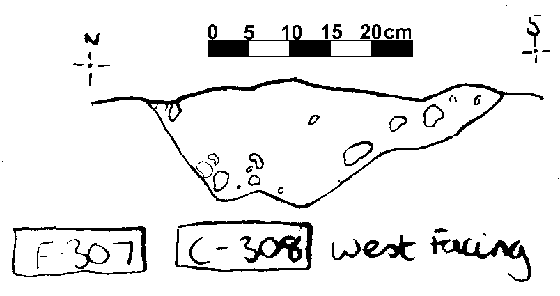

011BC00308 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00307 POST HOLE FILL ROUND 38 35 6 UNDULATING CONTAINS CHALK PIECES 1 TO 5 CM IN SIZE
011BC00308 POST HOLE CUT ROUND 38 35 6 UNDULATING POST HOLE CUT

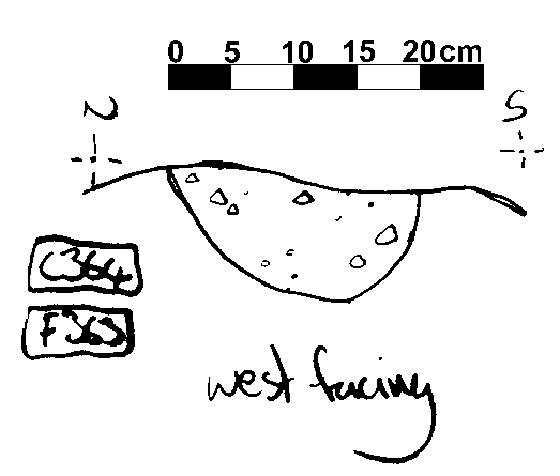

011BC00364 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BC00363 POST HOLE FILL AMORPHOUS 45 32 10 FLAT BASED U CONTAINS A VERY LITTLE CHALK 1 TO 2 CM IN SIZE
011BC00364 POST HOLE CUT AMORPHOUS 45 32 10 FLAT BASED U PROBABLY OVERCUT ON SOUTHERN SIDE

Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
011BC00275 AA No Entry STONE STONE     1
011BC00275 AB EARLY SAXON POTTERY SHERD   ANGLIAN 1
011BC00275 AC EARLY SAXON POTTERY SHERD   ANGLIAN 1
