011AB10005 Enclosure Ditch

Structural Details Back to the main Document

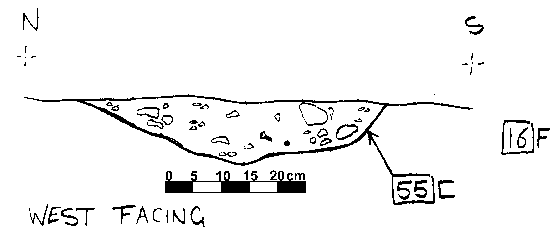

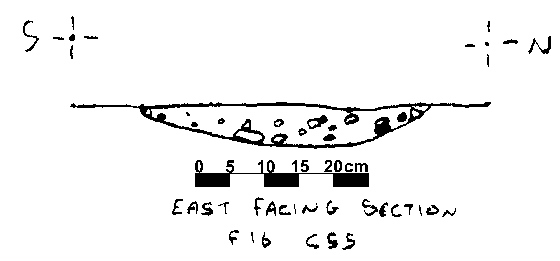

011AB00055 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00055 DITCH CUT LINEAR SEG. 282 62 13 WIDE U CUT 0F INNER ENCLOSURE DITCH SEGMENT: NORTH SIDE. SECTION OF SOUTHERN EDGE OVER EXCAVATED/ EXTENDED CUT. CUT INTO CHALK/GRAVEL NATURAL.

011AB00016 DITCH FILL LINEAR SEG. 282 62 13 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH:N SIDE. ORIENTATED E-W. POSSIBLE OVER EXCAVATED SOUTH SIDE. DARK HUMIC FILL WITH 10% GRAVEL INCLUSIONS & CHALK .

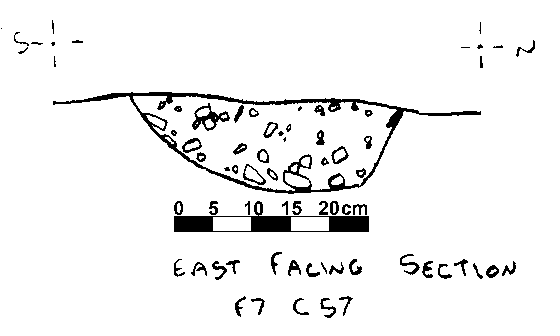

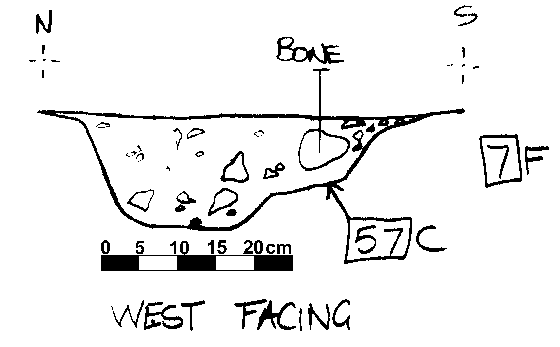

011AB00057 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00057 DITCH CUT LINEAR SEG. 200 52 12 USHAPED CUT OF INNER ENCLOSURE DITCH NORTH SIDE. CUTS INTO NATURAL. DISTURBED BY PLOUGHING. POSSIBLE POSTHOLE CUT INTO BASE. MASTER NUMBER IS 10005.

011AB00007 DITCH FILL LINEAR SEG. 200 52 12 USHAPED PRIMARY FILL OF INNER ENCLOSURE DITCH. 10% CHALK & GRAVEL INCLUSIONS. POSSIBLE POSTHOLE. DISTURBED BY PLOUGH & MACHINING. MASTER NUMBER IS 10004.

011AB00060 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00060	DITCH CUT	LINEAR SEG.	125	90	90	FLAT BASED U	CUT OF INNER ENCLOSURE DTCH SEGMENT: CUT BY MODERN PIPE TRENCH: LOCATED IN NW 11AB. CUT INTO CHALK/GRAVEL & SAND. FINDS BY CONTEXT.
							THE FILLS OF THIS SEGMENT OF THE DITCH WERE EXCAVATED AS TWO SPITS (011AB00022 AND 011AB00029) NOT INCLUDED HERE AS THEY ALSO COVERED AREAS OUTSIDE THE DITCH.

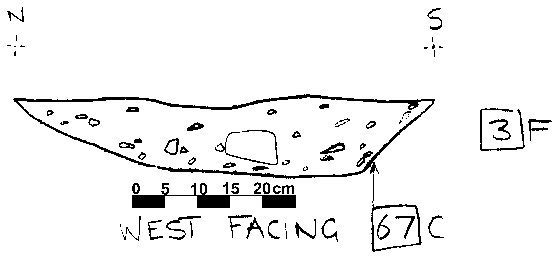

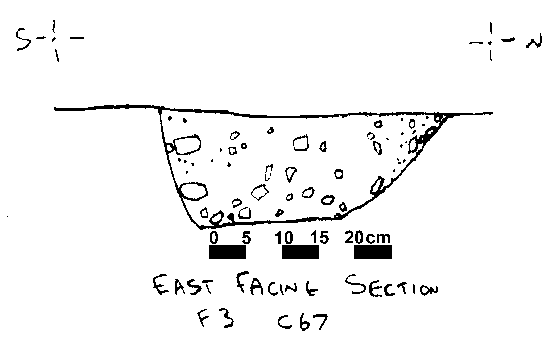

011AB00067 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00067 DITCH CUT LINEAR SEG. 280 57 16 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: N SIDE. CUTS INTO CHALK NATURAL.POSSIBLE POSTHOLE CUTS INTO BASE: S SIDE. CUT SHALLOWS TO EAST.MASTER NO 10005.

011AB00003 DITCH FILL LINEAR SEG. 280 57 16 WIDE U PRIM FILL OF INNER ENCLOSURE DITCH ON NORTH SIDE OF AB. 10% CHALK AND GRAVEL INCLUSIONS. TWO POSTHOLES? CUT INTO BASE. MASTER NUMBER IS 10005.

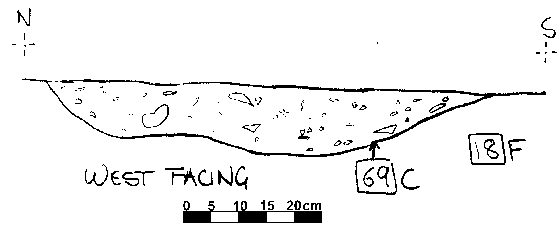

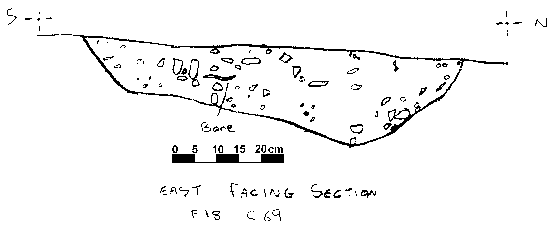

011AB00069 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00069 DITCH CUT LINEAR SEG. 259 90 21 WIDE V CUT OF INNER ENCLOSURE DITCH SEGMENT: AS DITCH TURNS TO N-S. E-W ORIENTATION. NORTH SIDE OF ENCLOSURE. CUTS INTO SOLID CHALK & GRAVEL NATURAL.

011AB00018 DITCH FILL LINEAR SEG. 259 90 21 WIDE V PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: NORTH SIDE. ORIENTATION E-W. DITCH TURNING TO SOUTH AT THIS POINT. DARK HUMIC FILL: 5% INCLUSIONS.

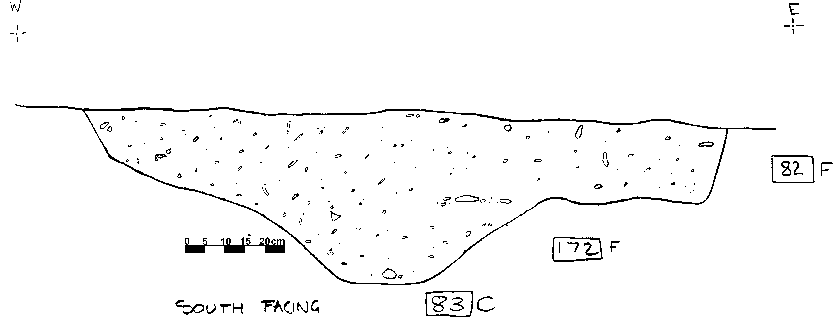

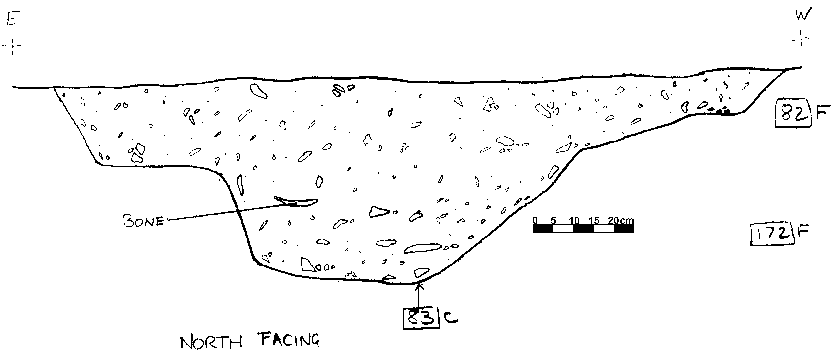

011AB00083 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00083 DITCH CUT LINEAR SEG. 200 176 79 STEPPED U CUT OF INNER ENCLOSURE DITCH SEGMENT: SW 11AB. SLIGHTLY OVEREXCAVATED EASTERN EDGE. CUT INTO CHALK/GRAVEL & SAND NATURAL.RE EXCAVATED.

011AB00082 DITCH FILL LINEAR SEG. 200 166 30 FLAT SECONDARY FILL OF INNER ENCLOSURE DITCH SEGMENT IN SW 11AB. DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT.

011AB00172 DITCH FILL LINEAR SEG. 200 65 18 STEPPED U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT IN SW 11AB. DARK/BROWN HUMIC SANDY FILL WITH 10 % CHALK/GRAVEL INCLUSIONS.

011AB00898 DITCH FILL LINEAR SEG. 197 93 34 ROUND BASED RE-EXCAVATION OF DITCH SEGMENT:INNER ENLOSURE DITCH.ORIGINALLY THOUGHT TO BE NATURAL:SLUMPAGE FROM CUT SIDES.LAYERS OF SAND:GRAVEL & SANDY LOAM.S

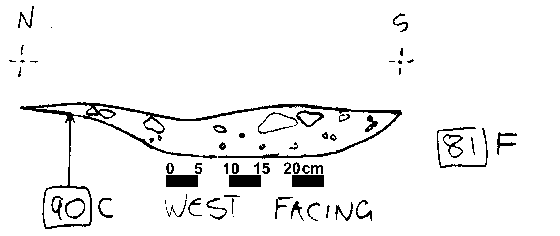

011AB00090 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00090 DITCH CUT LINEAR SEG. 144 44 9 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: N SIDE. NEXT TO MODERN PIPE TRENCH(WEST). V SHALLOW: IRON PAN IN NATURAL GRAVEL. POSSIBLE POSTHOLE?. M 10005.

011AB00081 DITCH FILL LINEAR SEG. 144 44 9 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: N IDE. 5/10% CHALK GRAVEL INCLUSIONS. SOME IRON PAN IN FILL & NATURAL. V SHALLOW/DISTURBED. M 10005.

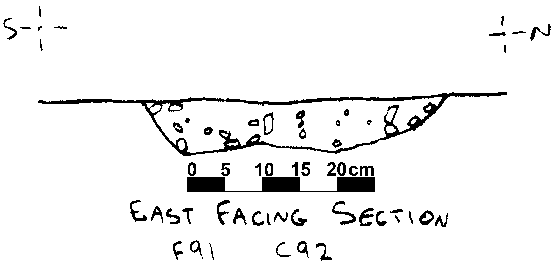

011AB00092 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00092	DITCH CUT	LINEAR SEG.	144	46	6	WIDE U	VERY SHALLOW CUT OF INNER ENCLOSURE DITCH: N SIDE. JUST BEFORE CUT BY MODERN PIPE TRENCH. IRON PAN THROUGH NATURAL. V DISTURBED. MASTER NUMBER 10005.
011AB00091	DITCH FILL	LINEAR SEG.	144	46	6	WIDE U	SECTION OF INNER DITCH N SIDE. SHALLOWS OUT TO CLEANED SURFACE. IRON PAN THROUGH FROM MODERN PIPE TRENCH: TO THE EAST. NO FINDS. MASTER NUMBER 10005.

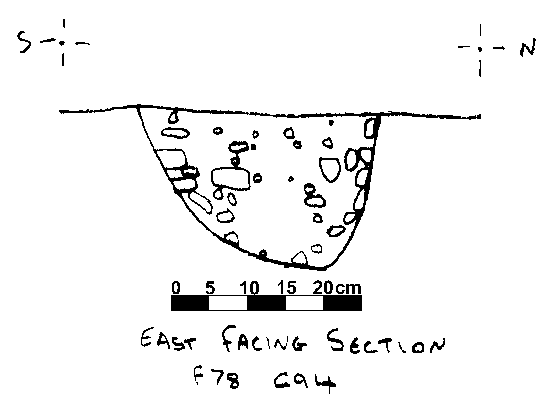

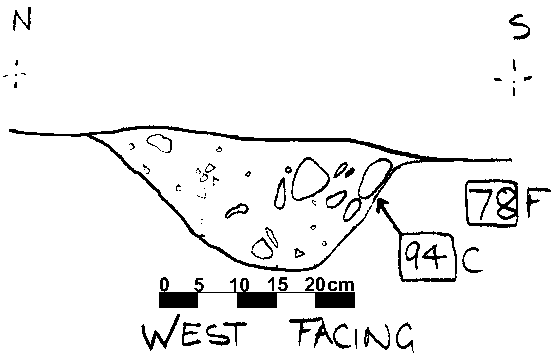

011AB00094 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00094 DITCH CUT LINEAR SEG. 200 48 22 USHAPED CUT OF INNER ENCLOSURE DITCH SECTION: CUT INTO NATURAL. POSSIBLE POSTHOLES IN BASE. DISTURBED BY PLOUGHING & MACHINING. MASTER NUMBER IS 10005.

011AB00078 DITCH FILL LINEAR SEG. 200 48 22 USHAPED PRIMARY FILL OFINNER ENCLOSURE DITCH SEGMENT: N SIDE. DARK HUMIC SANDY FILL: WITH 10% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT: ANIMAL BONE. M 10005.

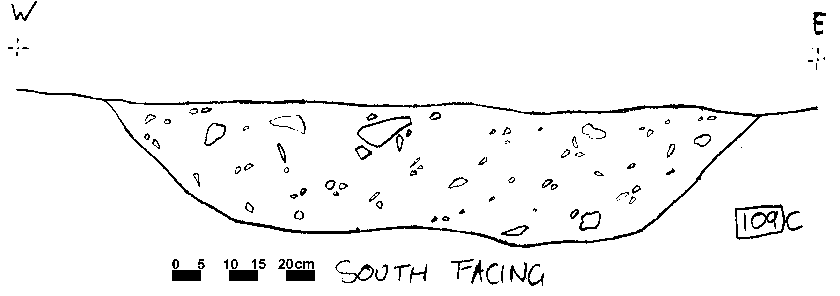

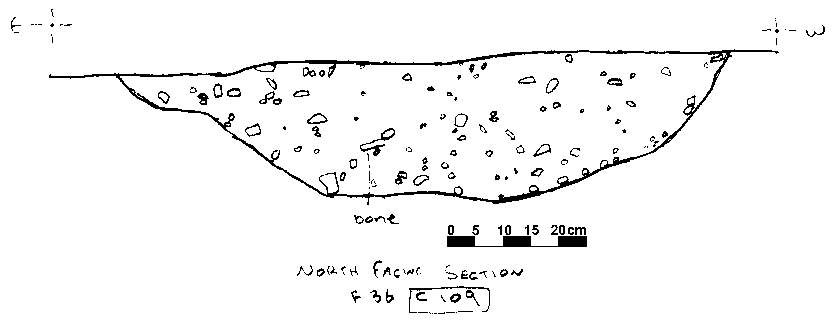

011AB00109 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00109 DITCH CUT LINEAR SEG. 206 116 26 WIDE U CUT OF INNER ENCOSURE DITCH SEGMENT: W SIDE. CUT INTO CHALK/GRAVEL/SAND NATURAL. SIDE CUT DIFFICULT TO FIND: SOME DISTURBANCE.

011AB00036 DITCH FILL LINEAR SEG. 206 116 26 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: W SIDE. ORIENTATED N-S. DARK HUMIC/SANDY FILL WITH 10% CHALK/GRAVEL INCLLUSIONS. ALOT OF ANIMAL BONE.

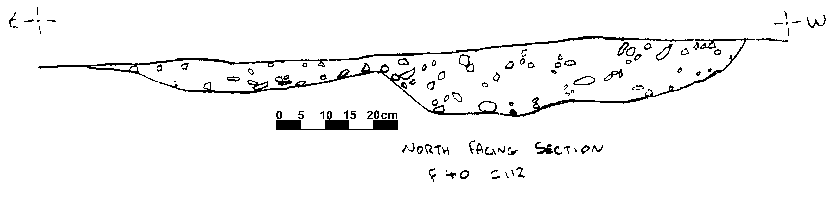

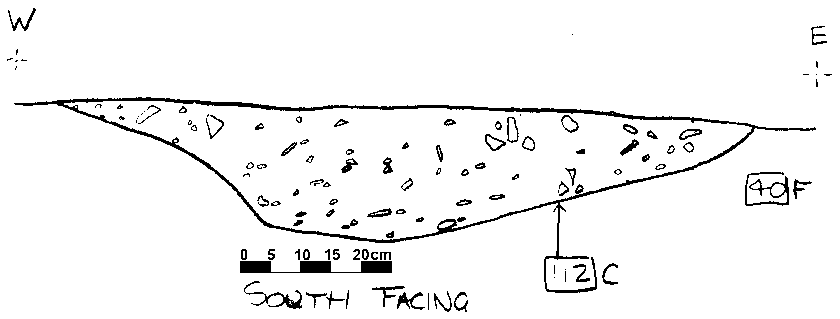

011AB00112 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00112 DITCH CUT LINEAR SEG. 200 132 23 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: WEST SIDE. CUT INTO CHALK/GRAVEL/SAND NATURAL. OVEREXCAVATED SE EDGE. V SHALLOW CUT.

011AB00040 DITCH FILL LINEAR SEG. 200 132 23 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH IN W AB. N-S ORIENTATION. V SHALLOW FILL. DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

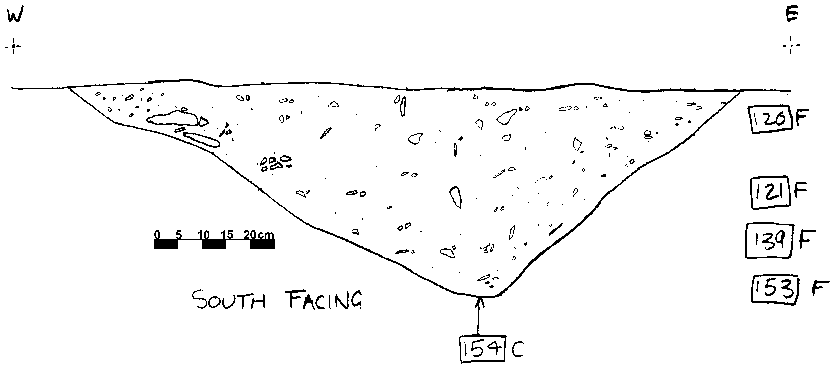

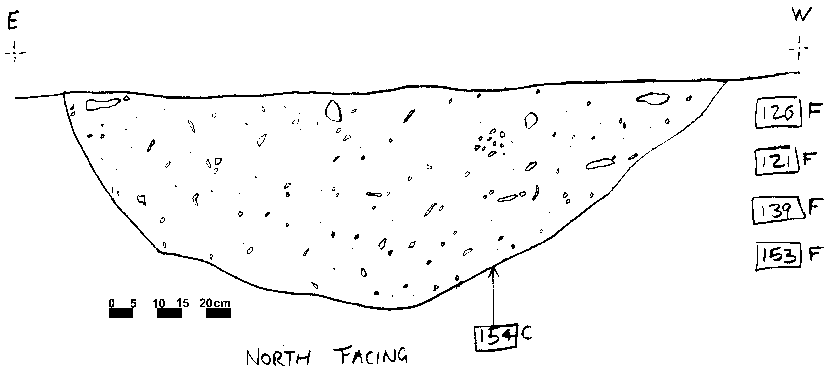

011AB00154 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00154 DITCH CUT LINEAR SEG. 210 206 35 ROUND BASED DITCH CUT.CUTS CK/GRAVEL.GENTLY UNDULATING BASE.BURROWED.MASTER NUMBER IS 10005: INNER ENCLOSURE DITCH.RE EXCAVATED(16/9/90)

011AB00121 DITCH FILL LINEAR SEG. 200 143 10 FLAT 10CM SPIT.FINDS BY CON.<5%INC<5CM CHALK.C/COAL FLECKS THROUGHOUT.CENTRAL?EAST CONCENTRATION BONE:MOSTLY JAW. MASTER NUMBER 10005:INNER ENCLOSURE DITCH

011AB00126 DITCH FILL LINEAR SEG. 200 143 10 WIDE U 10CM SPIT.FINDS BY CON.DARK HUMIC FILL.5% INC <5CM CHALK. FLECKS OF C/COAL.LARGE BONE CONCEN TO EAST. MASTER NUMBER IS 10005: INNER ENCLOSURE DITCH.

011AB00139 DITCH FILL LINEAR SEG. 200 143 10 FLAT 10CM SPIT.FINDS BY CON.C/COAL FLECKS THROUGHOUT.BONE TO CENTRAL/EAST.<5%INC<5CM. NEDAM LAVA TO CEN/EAST. MASTER NUMBER 10005: INNER ENCLOSURE DITCH.

011AB00153 DITCH FILL LINEAR SEG. 200 143 8 ROUND BASED 12CM SPIT.FINDS CON ONLY.C/COAL FLECKS THROUGHOUT.BONE TO CEN/EAST.<5%INC<5CM. MASTER NUMBER IS 10005: INNER ENCLOSURE DITCH.

011AB00897 DITCH FILL LINEAR SEG. 206 136 38 ROUND BASED RE-EXCAVATION OF DITCH SEGMENT LOCATED IN SW 11AB.REVEALED A V SHAPED DITCH WITH POSSIBLE PALISADE.SLUMPAGE OF SAND:GRAVEL & SANDY LOAM FILL.FINDS.

011AB00155 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00155	DITCH CUT	LINEAR SEG.	197	175	16	FLAT BASED U	CUT OF INNER ENCLOSURE DITCH SEGMENT IN WESTERN 11AB. CUT INTO CHALK/GRAVE NATURAL & BY PITS (f330/c331 & f410/c411). PIT FINDS RECORDED UNDER FILL .
011AB00043	DITCH FILL	LINEAR SEG.	197	175	16	FLAT BASED U	PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT IN WESTERN 11AB: CUT BY PITS(c331 & c411). DARK SANDY FIL WITH 10% CHALK/GRAVEL INCLUSIONS.

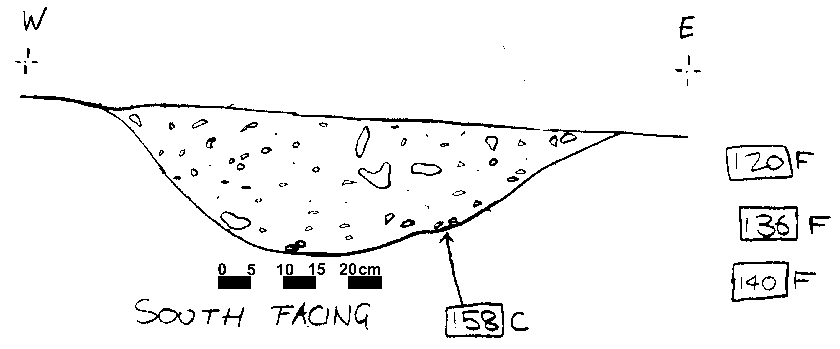

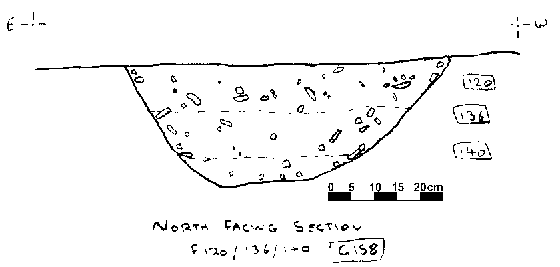

011AB00158 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00158 DITCH CUT LINEAR SEG. 145 80 29 ROUND BASED DITCH CUT SEG. CUTS CK/GRAVEL NAT.GENTLY UNDULATING BASE 29-24CM.BURROWEDINNER DITCH(E). MASTER NUMBER IS 10005: INNER ENCLOSURE DITCH.

011AB00120 DITCH FILL LINEAR SEG. 145 80 10 ROUND BASED DITCH SEG SPIT. RAPID EXC.FINDS MAY BE LOST.INC<5%<5CM CHALK.DAUB TO SE.C/COAL FLECKS.BURROWED.LIGHTLY ROOTED. MASTER NUMBER 10005: INNER DITCH.

011AB00136 DITCH FILL LINEAR SEG. 145 57 10 ROUND BASED 2ND SPIT.FINDS BY CON ONLY.INC<5%<5CM CHALK.C/COAL THROUGHOUT.BURROWED. ROOTED LIGHTLY. MASTER NUMBER IS 10005: INNER ENCLOSURE DITCH.

011AB00140 DITCH FILL LINEAR SEG. 145 30 9 ROUND BASED 3RD SPIT.RAPID EXC:FINDS MAY BE LOST.DARK FILL.INC<5%<5CM CHALK.BURROWED.LIGHTLY ROOTED.C/COAL FLECKS THROUGHOUT. MASTER NUMBER 10005.

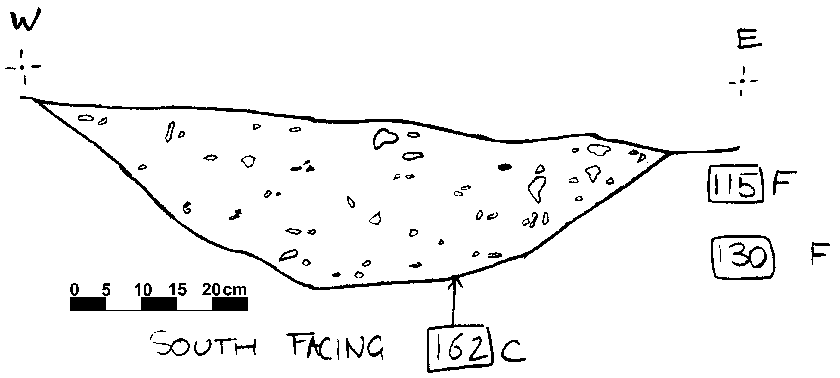

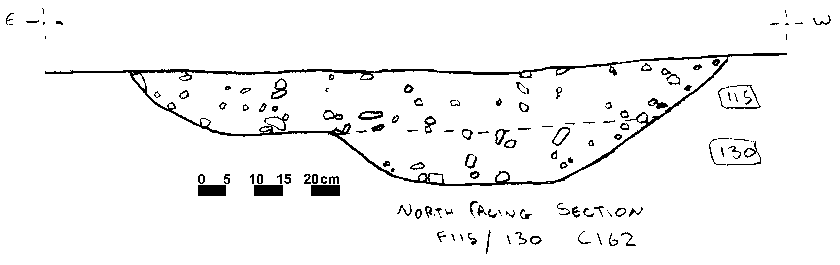

011AB00162 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00162 DITCH CUT LINEAR SEG. 200 113 28 WIDE U CUTS CK & CK GRAVEL NAT.GENTLY UNDULATING BASE.LIGHTLY ROOTED. ANIMAL ACTION. MASTER NUMBER 10005: INNER ENCLOSURE DITCH.

011AB00115 DITCH FILL LINEAR SEG. 200 113 15 WIDE U SPIT WITHIN DITCH.BONE THROUGHT.INC<5%<5CM CK.ANIMAL ATN.ROOTED LIGHTLY.RAPID TROWEL.FINDS BY CON ONLY. MASTER NUMBER 10005: INNER ENCLOSURE DITCH.

011AB00130 DITCH FILL LINEAR SEG. 200 75 13 WIDE U DITCH FILL SPIT.RAPID TROWELED.INC<5%<5CM CK.BONE THROUGHOUT FILL:MORE THAN AVERAGE.ANIMAL ATN.LIGHTLY ROOTED. MASTER NUMBER IS 10005.

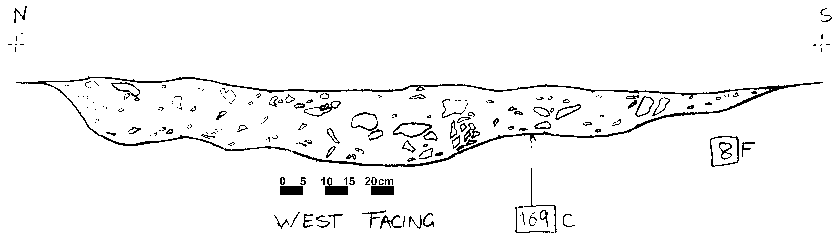

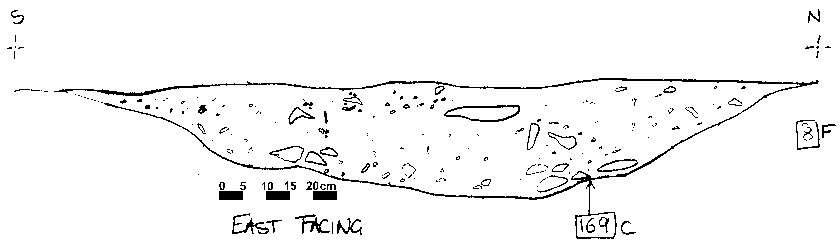

011AB00169 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00169 DITCH CUT LINEAR SEG. 225 130 22 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT. CUTS INTO CHALK & CHALK/GRAVEL NATURAL. SLIGHLY OVEREXCAVATED SOUTHERN UPPER EDGE. MASTER NUMBER 10005.

011AB00008 DITCH FILL LINEAR SEG. 225 130 22 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH:N SIDE. 5% CHALK/GRAVEL INCLUSIONS: UPTO 8CM DIA. ANIMAL BONE FOUND: SOME POTTERY & SANDSTONE. MASTER NO. 10005.

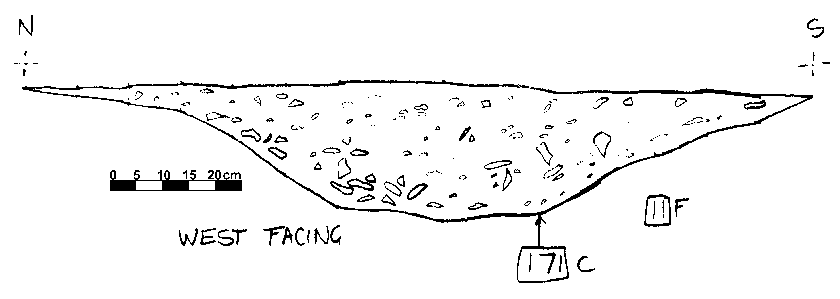

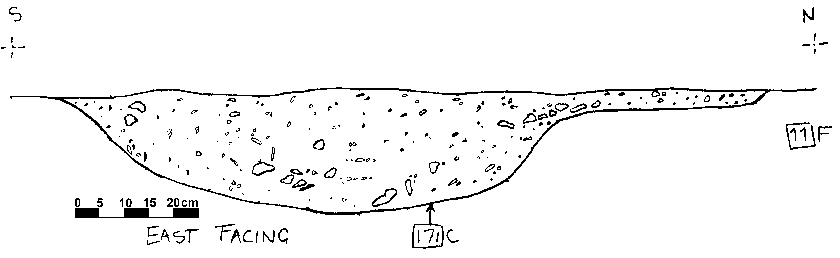

011AB00171 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00171 DITCH CUT LINEAR SEG. 310 122 26 WIDE U CUT OF INNER ENCLOSURE DITCH SECTION: NORTH SIDE. CUTS INTO CHALK & CHALK/GRAVEL NATURAL. OVEREXCAVATED ON UPPER NORTH EDGE. MASTER NUMBER 10005.

011AB00011 DITCH FILL LINEAR SEG. 310 122 26 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SECTION: NORTH SIDE. DARK HUMIC FILL: 10% CHALK/GRAVEL INCLUSIONS.BONE FINDS DISTRIBUTED IN FILL.MASTER NO 10005

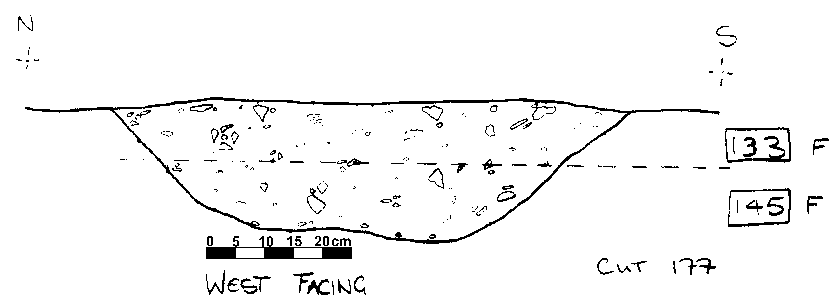

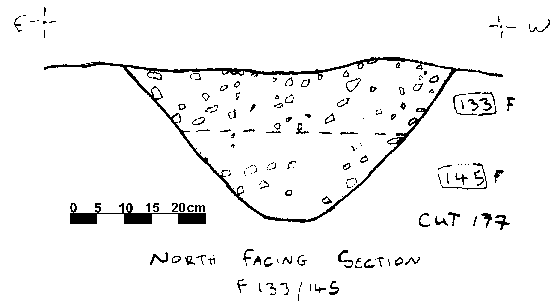

011AB00177 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00177 DITCH CUT LINEAR SEG. 170 100 25 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: NW CORNER OF AB. CUT NARROWS AT THIS POINT. STEEP SIDES CUT INTO SOLID CHALK:GRAVEL/SAND BASE.

011AB00133 DITCH FILL LINEAR SEG. 170 100 10 FLAT SECONDARY FILL OF INNER ENCLOSURE DITCH SEGMENT: NW CORNER. SW-NE ORIENTATION. DARK HUMIC FILL WITH 10-15% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT.

011AB00145 DITCH FILL LINEAR SEG. 170 82 15 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: NW CORNER. SW-NE ORIENTATION. DARK HUMIC FILL WITH 10-15% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT.

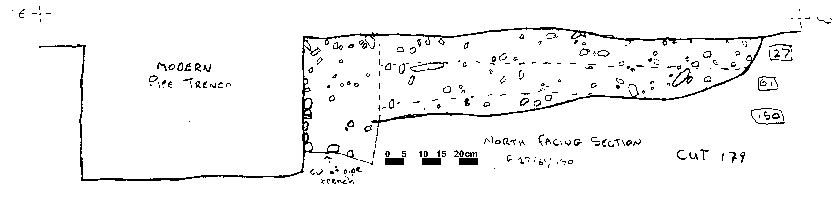

011AB00179 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00179	DITCH CUT	LINEAR SEG.	494	121	22	WIDE U	CUT OF INNER ENCLOSURE DITCH IN WESTERN AB. CUT DISTURBED ON EASTERN EDGE BY MODERN PIPE TRENCH. CUT INTO CHALK/SAND/GRAVEL.
011AB00027	DITCH FILL	LINEAR SEG.	494	121	5	FLAT	TERTIARY FILL OF INNER ENCLOSURE DITCH SEGMENT: WESTERN SIDE. CUT BY/DISTURBED BY MODERN PIPE TRENCH. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS.
011AB00061	DITCH FILL	LINEAR SEG.	494	121	5	FLAT	SECONDARY FILL OF INNER ENCLOSURE DITCH:WESTERN SIDE. CUT/DISTURBED BY MODERN PIPE TRENCH. DARK BROWN HUMIC FILL WITH 5% CHALK/GRAVEL INCLUSIONS.
011AB00150	DITCH FILL	LINEAR SEG.	494	121	12	WIDE U	PRIMARY FILL OF INNER ENCLOSURE DITCH: WESTERN SIDE. FINDS BY CONTEXT. FILL CUT/DISTURBED BY MODERN PIPE TRENCH. FILL SIMILAR TO F 61.

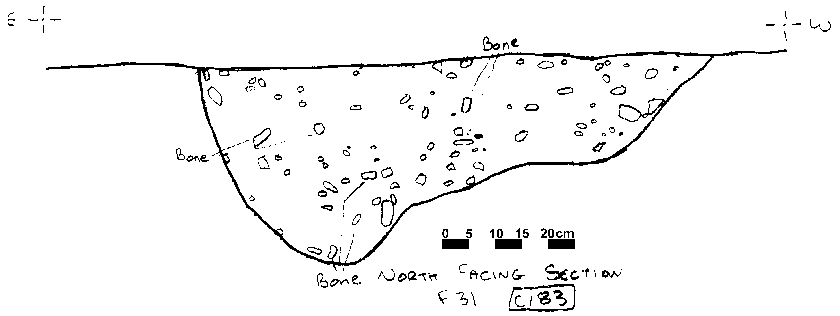

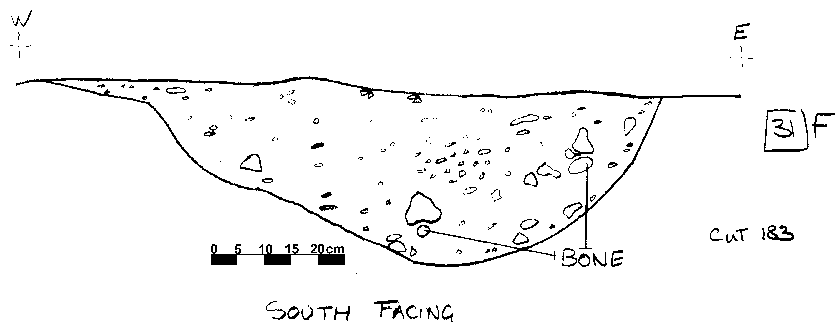

011AB00183 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00183 DITCH CUT LINEAR SEG. 196 123 36 UNDULATING CUT OF INNER ENCLOSURE DITCH SEGMENT: W SIDE. CUTS INTO CHALK/GRAVEL/SAND NATURAL. POSSIBLE PIT/POSTHOLE CUT INTO W SIDE. UNEVEN CUT IN BASE.

011AB00031 DITCH FILL LINEAR SEG. 196 123 36 UNDULATING PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: W SIDE. N-S ORIENTATION. DARK HUMIC/SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS. LARGE NUMBER OF BONE.E

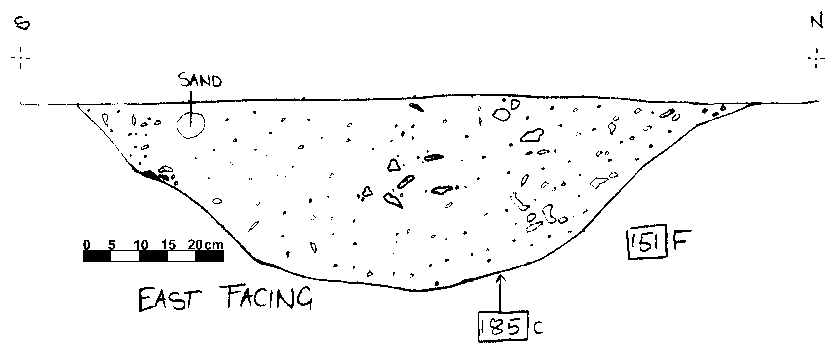

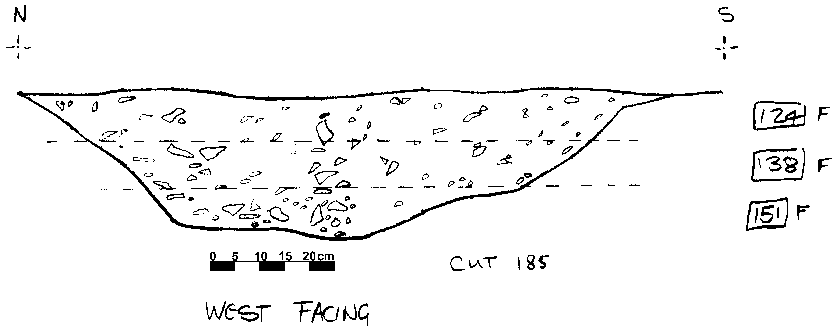

011AB00185 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00185 DITCH CUT LINEAR SEG. 195 124 34 WIDE V CUT OF INNER ENCLOSURE DITCH SEGMENT: NORTH SIDE. CUT INTO SANDY/ CHALK NATURAL. OVEREXCAVATED IN NE CORNER. DISTURBED BY BURROWING.

011AB00124 DITCH FILL LINEAR SEG. 195 124 10 FLAT 1ST DEFINING SPIT OF SEGMENT INNER DITCH FILL: N SIDE. FINDS BY CONTEXT: 10CM SPITS. DARK HUMIC FILL: 5% CHALK/GRAVEL INCLUSIONS.

011AB00138 DITCH FILL LINEAR SEG. 195 124 10 FLAT SECOND DEFINING SPIT OF INNER DITCH SEGMENT: N SIDE. EXCAVATED IN 10 CM SPITS: FINDS BY CONTEXT. DARK HUMIC SANDY FILL: WITH 5% CHALK/GRAVEL INCLUSIONS.

011AB00151 DITCH FILL LINEAR SEG. 195 124 14 WIDE V FINAL DEFINING SPIT OF INNER ENCLOSURE DITCH SEGMENT: N SIDE. EXCAVATED IN 10CM SPITS: FINDS BY CONTEXT. DARK HUMIC FILL WITH 5% CHALK/GRAVEL INCLUSIONS.

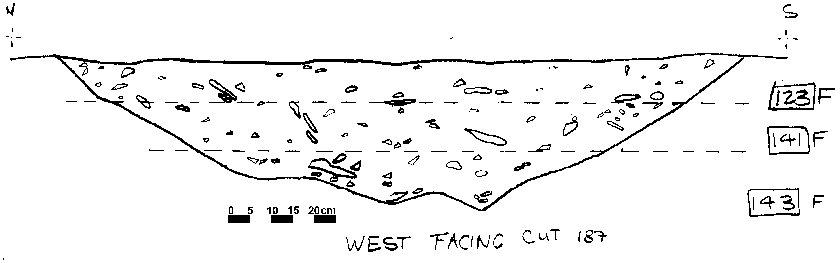

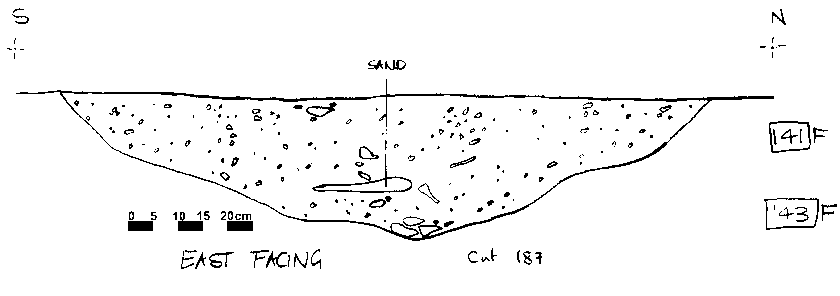

011AB00187 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00187 DITCH CUT LINEAR SEG. 200 154 32 WIDE V CUT OF INNER ENCLOSURE DITCH SEGMENT: NORTH SIDE. EASTERNMOST CUT. CUT INTO ORANGE SAND ON SIDES: BASE CUTS INTO GRAVELLY CHALK. NO SOLID CHALK.

011AB00123 DITCH FILL LINEAR SEG. 200 154 10 FLAT FIRST SPIT OF INNER ENCLOSURE DITCH: N SIDE. EASTERN MOST SEGMENT. FINDS BY CONTEXT. DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

011AB00141 DITCH FILL LINEAR SEG. 200 154 10 FLAT SECOND SPIT FILL OF INNER ENCLOSURE DITCH: N SIDE. EASTERNMOST SEGMENT. FINDS BY CONTEXT. DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS. S

011AB00143 DITCH FILL LINEAR SEG. 200 154 12 WIDE V THIRD SPIT OF INNER ENCLOSURE DITCH: NORTH SIDE. EASTERNMOST SEGMENT. FINDS BY CONTEXT. DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

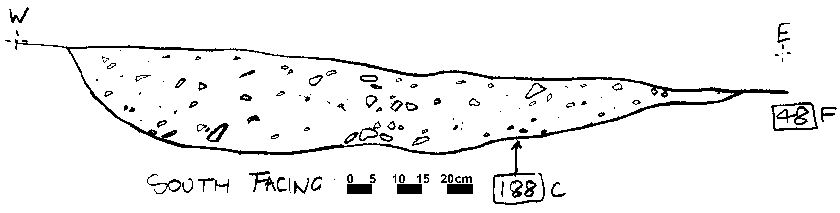

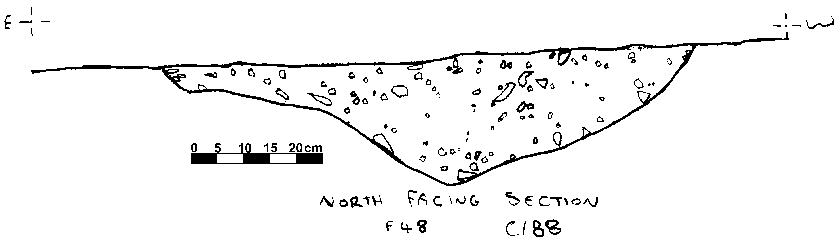

011AB00188 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00188 DITCH CUT LINEAR SEG. 206 131 25 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: WEST SIDE. N-S ORIENTATION. CUT INNTO CHALK/GRAVEL NATURAL. UNEVEN BASE TO CUT. DISTURBED UPPER EDGE.

011AB00048 DITCH FILL LINEAR SEG. 206 131 25 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: W SIDE. DARK HUMIC SANDY FILL WITH 15% CHALK/GRAVEL INCLUSIONS: AFEW LARGE PIECES OF CHALK(>6CM).

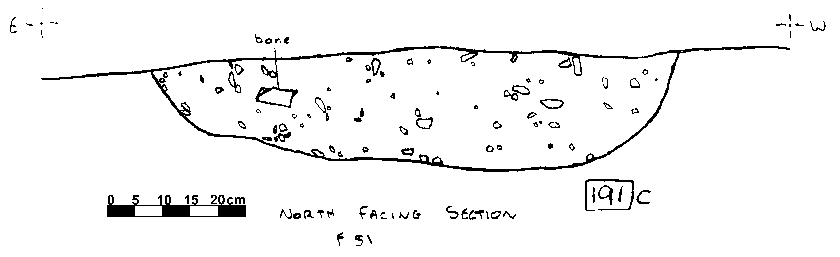

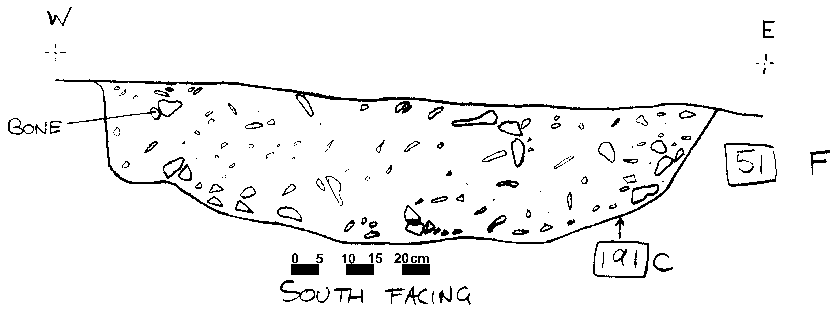

011AB00191 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00191 DITCH CUT LINEAR SEG. 204 112 26 WIDE U CUT OF INNER ENCLOSURE DITCH SEGMENT: W SIDE. N-S ORIENTATION. CUTS INTO CHALK/GRAVEL NATURAL: SOME AREAS OF NATURAL SAND.

011AB00051 DITCH FILL LINEAR SEG. 204 112 26 WIDE U PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: WESTERN AB.DARK HUMIC SANDY FILL WITH10% CHALK/GRAVEL INCLUSIONS:SOME UPTO 5CM. FINDS TAGGED.

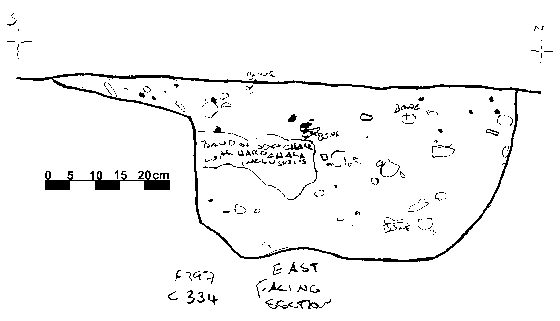

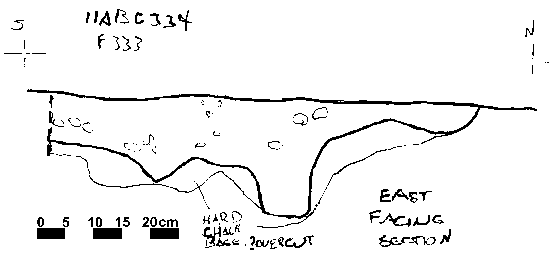

011AB00334 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00334 DITCH CUT LINEAR SEG. 460 163 18 FLAT BASED U CUT OF INNER ENCLOSURE DITCH SEGMENT IN NE 11AB: CUT BY/INTO A SERIES OF PITS. SOME CESS IN EARLIEST FILL . CUT INTO SOLID CHALK NATURAL: SOME SANDY.

011AB00333 DITCH FILL LINEAR SEG. 460 163 18 FLAT BASED U SECONDARYY FILL OF INNER ENCLOSURE DITCH CUTTING PIT(c539) & UNDEF FEATURE(c533): & CUT BY PIT(c335). DARK SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

011AB00397 DITCH FILL LINEAR SEG. 191 145 33 FLAT LAYER OF GREEN SAND: REMAINS OF CESS: IN LINEAR DITCH SEGMENT CUT BY PIT(f335/c336). SOIL SAMPLE TAKEN. 15% CHALK INCLUSIONS STAINING IN CHALK NATURAL

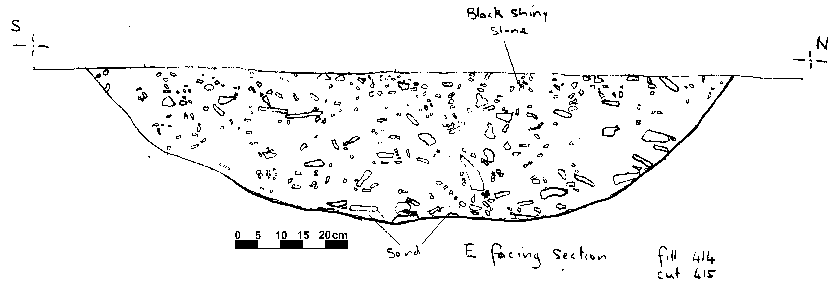

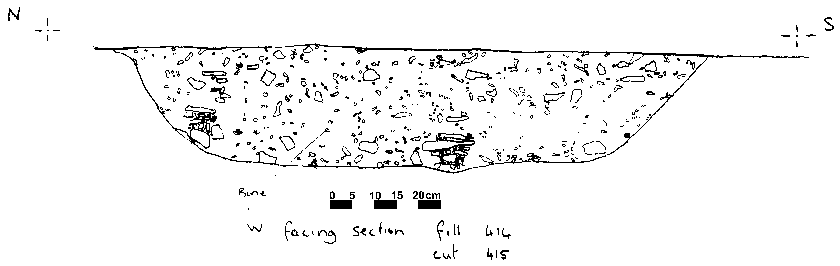

011AB00415 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00415 DITCH CUT LINEAR SEG. 250 135 27 WIDE U CUT OF LINEAR DITCH SEGMENT: OF INNER ENCLOSURE DITCH IN NE 11AB. ORIENTATED E-W. CUTS INTO SANDY GRAVEL & SANDY CHALK. BURROWED SAND IN BASE.

011AB00414 DITCH FILL LINEAR SEG. 250 135 27 WIDE U PRIMARY FILL OF LINEAR DITCH SEGMENT IN NE 11AB. DARK SANDY FILL WITH 10-15% CHALK/GRAVEL INCLUSIONS. AREAS OF CARBONISED GRAIN & CHARCOAL IN FILL.

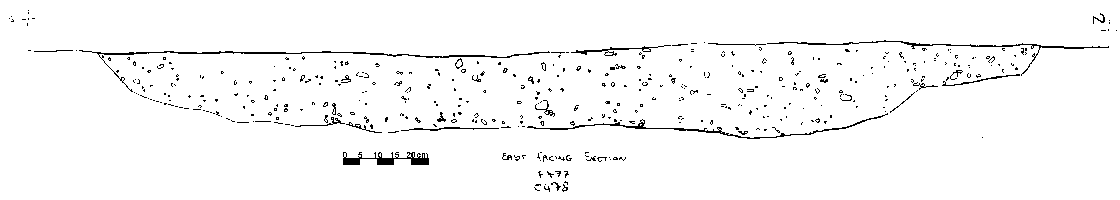

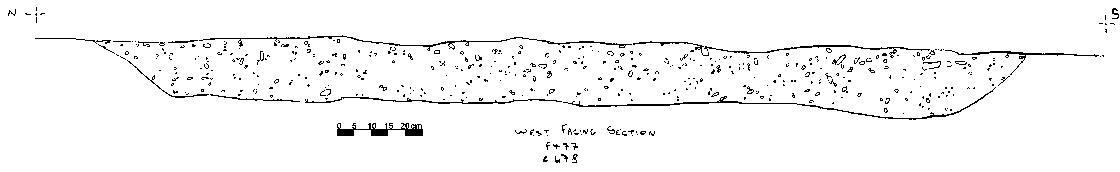

011AB00478 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00478 DITCH CUT LINEAR SEG. 250 283 21 FLAT BASED U CUT OF POSSIBLE ENCLOSURE DITCH CUT INTO V FINE CHALK GRAVEL & SAND. VERY DISTURED: BURROWED BASE & FILL. ORIENTATED E-W IN SOUTHERN 11AB.

011AB00477 DITCH FILL LINEAR SEG. 250 283 21 FLAT BASED U DITCH SEGMENT IN SW 11AB: WEST OF MODERN PIPE TRENCH. ORIENTATED E-W. VERY DISTURBED FILL: TOTALLY BURROWED DARK SANDY FILL WITH 15% CHALK INCLUSIONSS

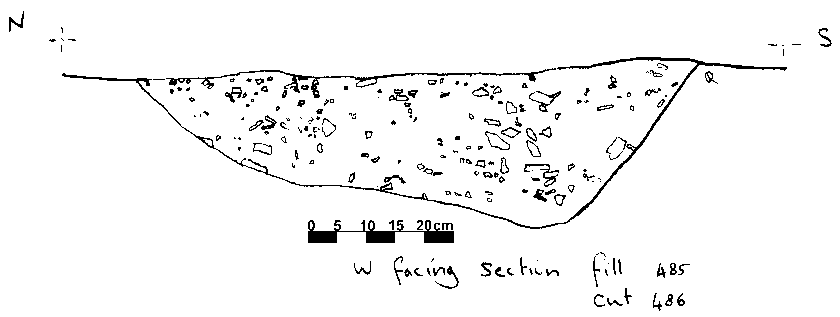

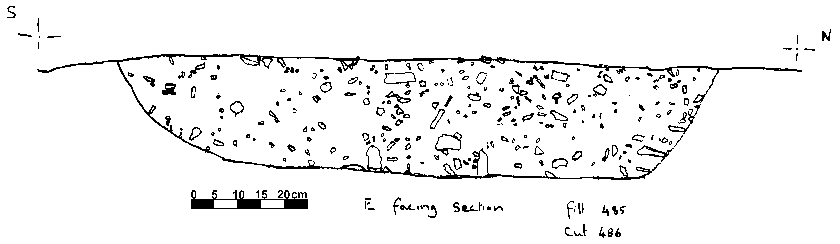

011AB00486 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00486 DITCH CUT LINEAR SEG. 240 129 27 FLAT BASED U CUT OF INNER ENCLOSURE DITCH SEGMENT IN NE 11AB. EXCAVATED TO SEE COURSE OF DITCH ACROSS STREAM CHANNEL. CUT INTO SANDY CHALK/GRAVEL NATURAL.

011AB00485 DITCH FILL LINEAR SEG. 240 129 27 FLAT BASED U LINEAR SEGMENT OF INNER ENCLOSURE DITCH IN NE 11AB. PRIMARY FILL IS DARK SANDY LOAM WITH 10-15% CHALK/GRAVEL INCLUSIONS:MOSTLY 2CM IN LENNGTH.

011AB00500 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00500	DITCH CUT	LINEAR SEG.	230	130	21	FLAT BASED U	CUT OF LINEAR HALF SECTION OF INNER ENCLOSURE DITCH SEGMENT IN NE 11AB. CUT INTO SANDY CHALK/GRAVEL: SOUTH SIDE EXCAVATED: ORIENTATED E-W. BURROWING.
011AB00499	DITCH FILL	LINEAR SEG.	228	130	21	FLAT BASED U	PRIMARY FILL OF LINEAR HALFSECTION OF INNER ENCLOSURE DITCH SEGMENT IN NE 11AB. FILLED WITH DARK SANDY LOAM WITH 10% CHALK/GRAVEL INCLUSIONS.

011AB00518 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00518	DITCH CUT	LINEAR SEG.	234	110	31	STEPPED U	CUT OF LINEAR HALF SECTIONED INNER ENCLOSURE DITCH SEGMENT: LOCATED IN NE 11AB. CUT INTO RED SAND: HEAVILY BURROWED/UNCONVINCING CUT.
011AB00517	DITCH FILL	LINEAR SEG.	234	110	31	STEPPED U	LINEAR HALF SECTION OF INNER ENCLOSURE DITCH SEGMENT IN NW 11AB. HEAVILY BURROWED: V UNCONVINCING SIDES & BASE. DARK SANDY FILL: 5% CHALK/GRAVEL INCL

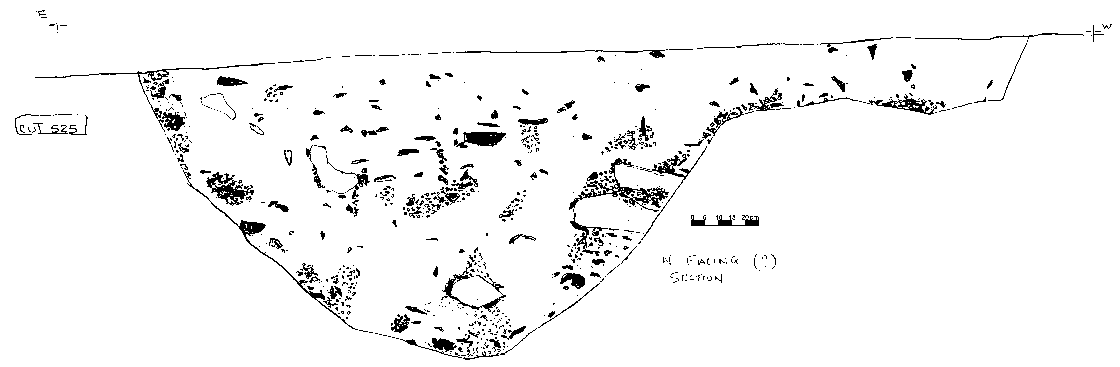

011AB00525 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00525	DITCH CUT	LINEAR SEG.	210	200	98	WIDE V	CUT OF LINEAR SEGMENT FROM INNER ENCLOSURE DITCH: LOCATED IN SW 11AB. REDEPOSITED NATURAL ON WESTERN EDGE(f555). CUT INTO CHALK/GRAVEL SAND NATURAL.
011AB00524	DITCH FILL	LINEAR SEG.	210	200	21	FLAT	UPPER FILL OF INNER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK LOAMY SAND FILL WITH 10% CHALK/GRAVEL INCLUSIONS. BONE: STONE & POTTERY FOUND..
011AB00536	DITCH FILL	LINEAR SEG.	200	0	32	UNDULATING	FILL OF INNER ENCLOSURE DITCH SEGMENT LOCATED IN SW 11AB. DARK LOAMY SADY FILL WITH 10-15% CHALK/GRAVEL INCLUSIOS: SOME IMPORTED STONE & IRON OBJECTS
011AB00537	DITCH FILL	LINEAR SEG.	120	104	40	UNDULATING	FILL OF INNER ENCLOSURE DITCH SEGMENT IN SW 11AB. LARGE QUANTITIES OF BURNT DAUB & CHARCOAL THROUGHOUT FILL. LARGE AMOUNTS OF ANIMAL BONE ALSO ASSOCI.
011AB00555	DITCH FILL	LINEAR	200	58	97	IRREGULAR	REDEPOSITED NATURAL ON WESTERN EDGE OF LINEAR DITCH SEGMENT: LOCATED IN SW 11AB. VERY GRAVELLY WITH PATCHES OF DARK LOAMY SOIL: SIGNS OF BURROWING.
011AB00869	DITCH FILL	LINEAR SEG.	203	41	97	IRREGULAR	SLIPPAGE OF EDGE ON E SIDE OF INNER ENCLOSURE DITCH SEGMENT:LOCATED IN SW 11AB.MAINLY BANDS OF NATURAL SAND:GRAVEL & SOME LOAMY MSAND. SIMILAR TO 555.

011AB00527 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00527	DITCH CUT	LINEAR SEG.	140	85	15	FLAT BASED U	DUBIOUS CONTINUATION OF INNER ENCLOSURE DITCH INTO STREAM CHANNEL. CUT INTO BLOWN /NATURAL SAND DEPOSITS: V BURROWED: UNCLEAR EDGE & BASE.
011AB00526	DITCH FILL	LINEAR SEG.	140	85	15	FLAT BASED U	LINEAR HALF SECTION OF INNER ENCLOSURE DITCH SEGMENT IN NE 11AB. HEAVILY BURROWED SANDY FILL WITH 5% CHALK/GRAVEL INCLUIONS. V DUBIOUS EDGE & BASE.

011AB00608 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00608	DITCH CUT	LINEAR SEG.	200	82	26	WIDE U	CUT/RECUT OF INNER ENCLOSURE DITCH LOCATED IN SW 11AB. CUTS INTO 605/606. CUT INTO SANDY CHALK/GRAVEL: SIGNS OF ANIMAL BURROWS ON SE & SW EDGES.
011AB00607	DITCH FILL	LINEAR SEG.	200	82	26	WIDE U	PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK SANDY FILL WITH 5-10% CHALK/GRAVEL: MORE GRAVEL/SAND NEAR BASE OF FILL.

011AB00610 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00610	DITCH CUT	LINEAR SEG.	297	86	35	FLAT BASED U	CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH: LOCATED IN SW 11AB. ORIENTATED N-S. CUT INTO SANDY CHALK/GRAVEL & PEAGRIT. HEAVILY BURROWED IN SE
011AB00609	DITCH FILL	LINEAR SEG.	297	86	35	FLAT BASED U	UPPER FILL OF INNER ENCLOSURE DITCH SEGMENT LOCATED IN SW 11AB: ON E SIDE OF CUT. DARK SANDY FILL WITH 10-15% CHALK/GRAVEL INCLUSIONS: SOME FLINT.

011AB00612 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00612	DITCH CUT	LINEAR SEG.	305	300	152	ROUND BASED	CUT OF LINEAR DITCH SEGMENT:SEVERAL RECUTS VISIBLE IN N SECTION.CUT INTO V CLEAN NATURAL SAND & SANDY GRAVEL IN LAYERS: LOAMY SAND ON UPPER CUT:BURROWS
011AB00611	DITCH FILL	LINEAR SEG.	305	300	42	WIDE V	FILL OF INNER ENCLOSURE DITCH SEGMENT.DARK SILTY:LOAMY SAND FILL WITH 10% CHALK & GRAVEL INCLUSIONS.FLECKS OF CHARCOAL & BURNT DAUB IN FILL.BURROWED.
011AB00694	LAYER	LINEAR	311	97	32	WIDE V	LAYER IN DITCH SEGMENT. VERY DARK SILTY SAND WITH 10-15% CHALK/GRAVEL INCLUSIONS. LARGE AREAS OF CHARCOAL IN FILL. SOME DAUB. PATCHES OF SLUMPAGE. VERY FEW FINDS
011AB00816	LAYER	LINEAR	305	144	23	FLAT	DARK SILTY SANDY FILL WITH 15% INCLUSIONS.FLECKS OF CHARCOAL & BURNT DAUB IN FILL.MORE STONEY THAN 611.COMB FOUND IN FILL.POTTERY:BONE & SANDSTONE.
011AB00819	LAYER	AMORPHOUS	148	105	58	IRREGULAR	AREA OF FILL WITH LARGE AMOUNTS OF BURNT DAUB & CHARCOAL.V SIMILAR TO f537 TO THE N. LARGE AMOUNTS OF ANIMAL BONE ASSOCIATED.SANDY FILL WITH 10% INCL.

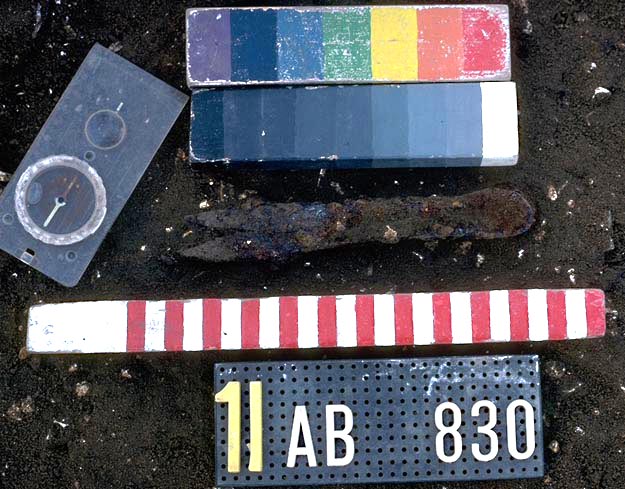

011AB00830	LAYER	LINEAR	305	107	28	FLAT	DARK SILTY SAND LAYER WITH LARGE PIECES OF CHALK INCLUSIONS & 10% GRAVEL.SOME FINE SAND(SLUMPAGE)IN FILL.FLECKS OF CHARCOAL & DAUB.IRON SHEARS FOUND.
011AB00843	LAYER	LINEAR	305	64	24	FLAT	LAYEROF SLUMPAGE ON WESTERN SIDE OF DITCH.UPTO 20% GRAVEL INCLUSIONS IN LOAM SAND AND NATURAL SAND LAYERS IN SLUMP MATERIAL:SOME CHALK.NO FINDS NOTED
011AB00844	LAYER	SUB-RECTANGULAR	97	69	29	FLAT	LAYER IN INNER ENCLOSURE DITCH SEGMENT ON W SIDE.QUITE DARK:V SANDY FILL:<5% CHALK GRAVEL INCLUSIONS.SOME SLUMPAGE MIXED IN.NO FINDS NOTED.
011AB00860	LAYER	LINEAR	305	132	31	IRREGULAR	SLUMPAGE ON EASTERN EDGE OF SEGMENT.LARGE NUMBER OF DISCRETE LAYERS OF GRAVEL INTERMINGLED WITH LOAMY & NATURAL SAND.V FEW FINDS:NONE NOTED IN BOOK.
011AB00867	LAYER	LINEAR	305	132	31	UNDULATING	SLUMPAGE OF E SIDE OF DITCH FEATURE.SAME AS 860.MADE UP OF DISCRETE LAYERS OF GRAVEL:NATURAL SAND AND LOAMY MATERIAL.OVER EXCAVATED? NOT MANY FINDS.
011AB00868	LAYER	LINEAR	145	62	11	FLAT	REDDISH CLAY/SAND LAYER ON NW EDGE OF C612.V FINE ASH LIKE TEXTURE.V CLEAN FILL:FEW INCLUSIONS:CHARCOAL & POTTERY NOTED.VISIBLE IN N SECTION.
011AB00870	LAYER	SUB-RECTANGULAR	100	59	39	FLAT BASED U	PITLIKE LAYER OF SLUMPAGE MATERIAL ON S SIDE OF C612.FILLED WITH DISCRETE LAYERS OF NATURAL SAND:SANDY LOAM & GRAVEL.BURNT SANDSTONE FOUND IN FILL.

011AB00640 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00640	DITCH CUT	LINEAR SEG.	180	102	24	WIDE U	CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH: LOCATED IN SW 11AB. ORIENTATED W-SE: DITCH TURNING. CUT INTO CHALK GRAVEL NATURAL: CUT BY F641/C642
011AB00639	DITCH FILL	LINEAR SEG.	180	102	24	WIDE U	PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK LOAM/SANDY FILL WITH 15-20% CHALK/GRAVEL INCLUSIONS. CONTINUATION OF F422/C421

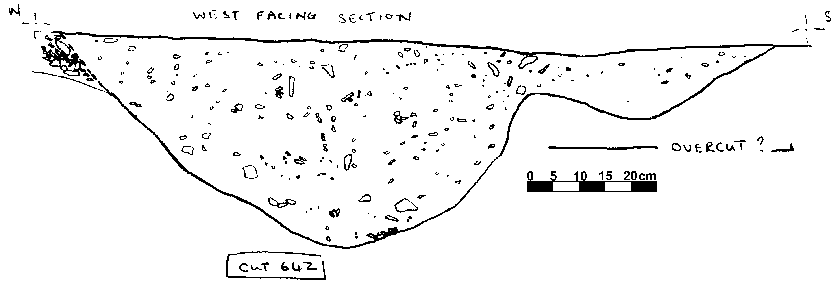

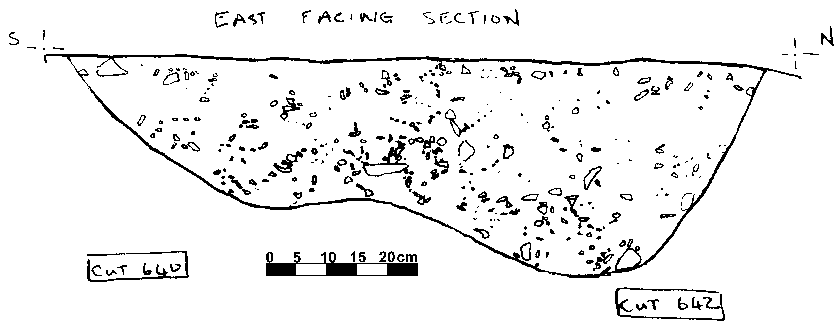

011AB00642 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

011AB00642 DITCH CUT LINEAR SEG. 278 83 39 USHAPED CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH: LOCATED IN SW 11AB ORIENTATED E-W. CUTTING INTO DITCH SEGMENT(f639/c640) & RED SAND & GRAVEL NATURAL.

011AB00641 DITCH FILL LINEAR SEG. 278 83 39 USHAPED PRIMARY FILL OF INNER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK SANDY FILL WITH 15% CHALK/GRAVEL INCLUSIONS: HEAVILY BURROWED FILL.. LOT FINDS

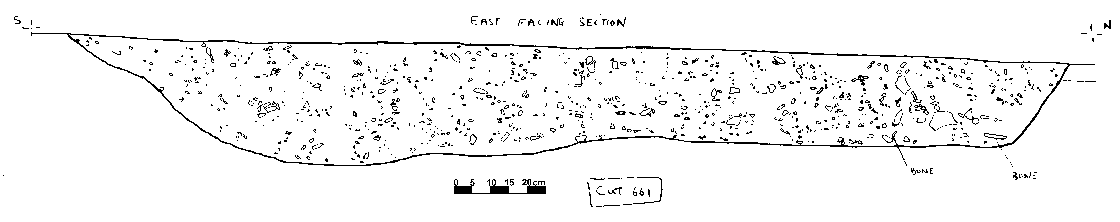

011AB00661 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00661	DITCH CUT	SUB-RECTANGULAR	133	130	15	FLAT BASED U	CUT OF LENS/LAYER OF DITCH FILL. PART OF INNER ENCLOSURE DITCH: ORIENTATED E-W: LOCATED IN SW 11AB: CUT INTO DITCH FILL 639. OVEREXCAVATED TO SOUTH?
011AB00660	DITCH FILL	SUB-RECTANGULAR	133	130	15	FLAT BASED U	FILL OF DITCH: INNER ENCLOSURE DITCH SEGMENT. LOCATED IN SW 11AB. DARK SANDY FILL: GRAVEL LENS BELOW CUT: 5% CHALK/GRAVEL. CHARCOAL & DAUB FLECKS.

011AB00775 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00775	DITCH CUT	SUB-RECTANGULAR	80	53	25	FLAT BASED U	CUT OF INNER ENCLOSURE DITCH SEGMENT IN SW 11AB. CUT BY DITCH SEGMENT(f524/c525). CUT INTO FINE SANDY GRAVEL AND LOAMY SANDY. HALF SECTIONED. S SIDE REMOVED.
011AB00774	DITCH FILL	SUB-RECTANGULAR	80	53	25	FLAT BASED U	FILL OF INNER ENCLOSURE DITCH SEGMENT CUT BY f524/c525. DARK LOAMY/SAND FILL WITH 10% CHALK/GRAVEL INCLUSIONS. SOME LARGE INCLUSIONS. CHARCOAL FLECKS.

011AB00823 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00823	DITCH CUT	LINEAR SEG.	175	115	28	WIDE V	CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH:LOCATED IN S 11AB:W OF MODERN PIPE.CUT INTO LOAMY SAND NATURAL & SOME GRAVEL.HEAVILY BURROWED.
011AB00822	DITCH FILL	LINEAR SEG.	175	115	28	WIDE V	PRIMARY FILL OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH IN S 11AB.DARK SILTY/LOAMY SAND FILL WITH <5% INCLUSIONS.HEAVILY BURROWED FWITH SPARSE FINDS .

011AB00833 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00833	DITCH CUT	LINEAR SEG.	157	102	46	FLAT BASED U	CUT OF INNER ENCLOSURE DITCH SEGMENT LOCATED IN SW 11AB.ORIENTATED E-W.UNKNOWN RELATIONSHIP WITH OTHER SEGMENTS BENEATH 803.CUTS INTO GRAVEL NATURAL.
011AB00832	DITCH FILL	LINEAR SEG.	424	364	16	FLAT	FILL OF INNER ENCLOSURE DITCH SEGMENTALSO CLEANING LAYER DEFINING RECUTS OF DITCH.DARK LOAMY SAND FILL WITH <10% INCLUSIONS.HEAVILY BURROWED.A
011AB00836	POST PACKING	SUB-RECTANGULAR	50	40	30	UNDULATING	DUMP OF LARGE PIECES OF CHALK IN FILL 832/803.PLANNED.COULD BE POST PAD? EXTENDING INTO 832 AFTER PLANNING.

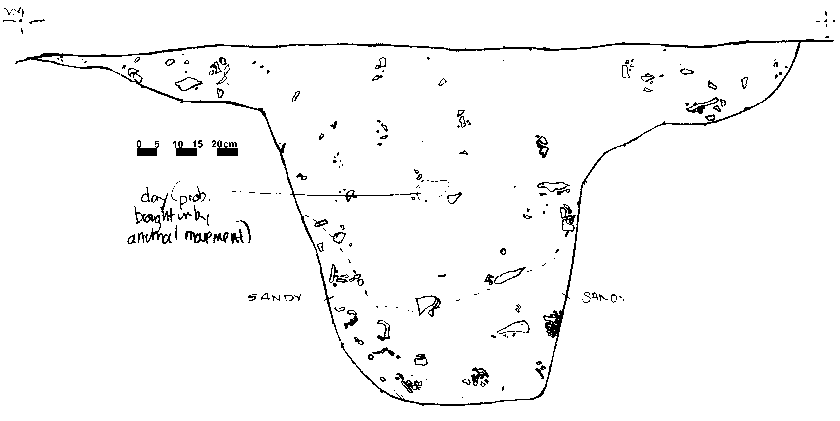

011AB00854 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00854	DITCH CUT	LINEAR SEG.	224	113	26	WIDE U	CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH LOCATED IN SW 11AB: DISCOVERED AFTER SECONDARY CLEANING.CUT INTO LOAMY SAND:GRAVEL & IRON STAINED SAND
011AB00807	DITCH FILL	LINEAR SEG.	362	175	26	WIDE U	LINEAR SEGMENT OF INNER ENCLOSURE DITCH:ONLY LOCATED AFTER INITIAL CLEANING OF AREA AS F807.DARK SANDY LOAM WITH 10% INCLUSIONS:LOTS OF ANIMAL BONE.

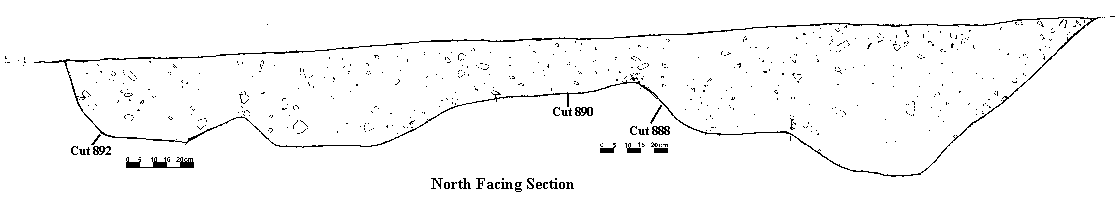

011AB00890 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00890	DITCH CUT	LINEAR SEG.	355	174	22	FLAT BASED U	CUT OF LINEAR SEGMENT OF INNER ENCLOSURE DITCH LOCATED IN W 11AB:ORIENTATED N-S.CUTS PITS TO E & W.CUT INTO GRAVEL:CHALK & LOAMY SAND NATURAL.
011AB00889	DITCH FILL	LINEAR SEG.	355	174	22	FLAT BASED U	FILL OF INNER ENCLOSURE DITCH SEGMENT LOCATED IN W 11AB.CUTS A SERIES OF PITS.DARK SILTY SAND FILL WITH 10% CHALK/GRAVEL INCLUSIONS.SPARSE FINDS.

011AB00915 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00915	DITCH CUT	LINEAR SEG.	215	201	19	FLAT BASED U	CUT OF HALF SECTIONED DITCH SEGMENT:POSSIBLY GATWAY OF INNER ENCLOSURE DITCH.S SIDE EXCAVATED.CUTS INTO LOAMY SAND:QUITE HEAVILY BURROWED.L
011AB00914	DITCH FILL	LINEAR SEG.	215	201	19	FLAT BASED U	FILL OF HALF SECTIONED DITCH SEGMENT:POSSIBLE GATEWAY IN INNER ENCLOSURE DITCH.DARK SILTY/LOAM FILL WITH V FEW INCLUSIONS OR FINDS.C.BONE FOUND.

011AB00917 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011AB00917	DITCH CUT	LINEAR SEG.	173	137	28	WIDE V	CUT OF HALF SECTIONED DITCH SEGMENT:CUT TERMINATES ON E SIDE.POSSIBLE ENTRANCE IN INNER ENCLOSURE DITCH.CUT INTO LOAMY SAND NATURAL:HEAVILY BURROWED.
011AB00916	DITCH FILL	LINEAR SEG.	173	137	28	WIDE V	FILL OF HALFSECTIONED DITCH SEGMENT. POSSIBLE E END OF GATEWAY IN INNER ENCLOSURE DITCH.DARK CLEAN SANDY FILL WITH <2% INCLUSIONS.SPARSE FINDS:BONE.
