011AB10003      Enclosure Ditch

Structural Details                                     Back to the main Document

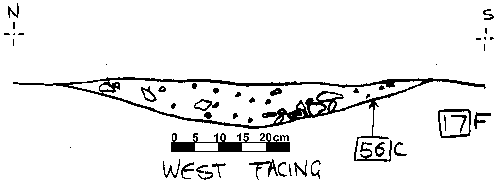

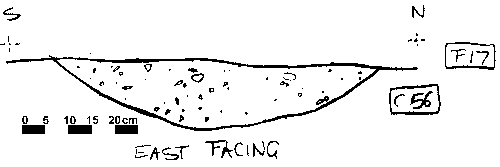

011AB00056 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00056 DITCH CUT SEG LINEAR SEG. 200 79 13 WIDE U CUT OF OUTER ENCLOSURE DITCH NORTH SIDE. CUT INTO CHALK/GRAVEL NATURAL. POSSIBLE POSTHOLE/NATURAL CUT INTO BASE. MASTER NUMBER IS 10003.
011AB00017 DITCH FILL SEG LINEAR SEG. 200 79 13 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH NORTH SIDE. 10% CHALK/GRAVEL INCLUSIONS. SHALLOW FILL BECAUSE OF PLOUGH DAMAGE. MASTER NUMBER IS 10003.

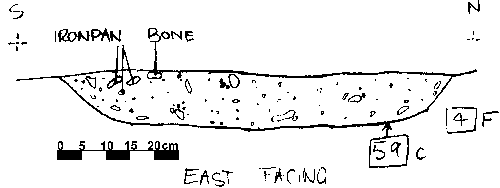

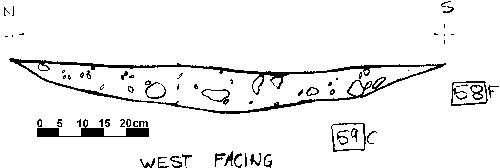

011AB00059 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00059 DITCH CUT SEG LINEAR SEG. 210 92 14 WIDE U CUT OF OUTER ENCLSURE DITCH SEGMENT: NORTH SIDE. CUT BY MODERN PIPE TRENCH. CUT COMPLETE BELOW PIPE: CUT INTO CHALK NATURAL. MASTER NUMBER 10003.
011AB00004 DITCH FILL SEG LINEAR SEG. 200 92 3 FLAT FINAL FILL OF OUTER ENCLOSURE DITCH. 15% CHALK AND GRAVEL INCLUSIONS. CUT BY MODERN PIPE. IRON PAN PRESENT. MASTER NUMBER 10003.
011AB00020 DITCH FILL SEG LINEAR SEG. 200 92 5 FLAT FILL OF OUTER ENCLOSURE DITCH NORTH SIDE. EAST OF MODERN PIPE TRENCH. 10%GRAVEL/CHALK INCLUSIONS: IRON PAN THROUGHOUT FILL. MASTER NUMBER IS 10003.
011AB00058 DITCH FILL SEG LINEAR SEG. 210 92 2 WIDE U FILL LAYER OF OUTER ENCLOSURE DITCH SEGMENT: NORTH SIDE. ONE CLEANING SPIT ON DITCH. 5/10% CHALK/GRAVEL INCLUSIONS. IRON PAN THROUGH FILL. M 10003.
011AB00063 DITCH FILL SEG LINEAR SEG. 210 92 9 WIDE U FILL OF OUTER ENCLOSURE DITCH: NORTH SIDE. BELOW MODERN PIPE TRENCH CUT. 5/10% CHALK/GRAVEL INCLUSIONS: SOME IRON PAN. MASTER NUMBER 10003.

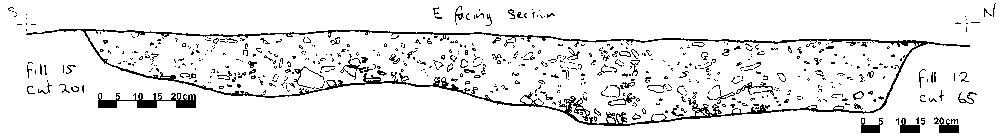

011AB00065 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00065 DITCH CUT SEG LINEAR SEG. 330 98 21 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT:NORTH SIDE. CUTS INTO NATURAL. DISTURBED BY PLOUGHING.MASTER NUMBER IS 10003.
011AB00012 DITCH FILL SEG LINEAR SEG. 330 98 21 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH NORTH SIDE. 10% CHALK/GRAVEL INCLUSIONS. BONE CONCENTRATION WEST SIDE. MASTER NUMBER IS 10003.

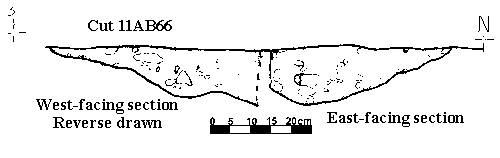

011AB00066 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00066 DITCH CUT SEG LINEAR SEG. 200 108 18 WIDE U CUT OF OUTER ENCLOSURE DITCH:NORTH SIDE. DISTURBED BY FURROW/2ND DITCH?. CUTS INTO CHALK & CHALK/GRAVEL NATURAL. MASTER NUMBER 10003.
011AB00010 DITCH FILL SEG LINEAR SEG. 200 106 14 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH NORTH SIDE. 5% CHALK/GRAVEL INCLUSIONS. DISTURBED BY PLOUGH. MASTER NUMBER IS 10003.

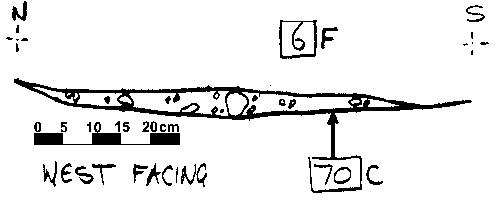

011AB00070 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00070 DITCH CUT SEG LINEAR SEG. 200 51 4 WIDE U CUT OF OUTER ENCLOSURE DITCH NORTH SIDE. V SHALLOW: DISTURBED BY PLOUGHING & MACHINING. CUT INTO NATURAL. MASTER NUMBER IS 10003.
011AB00006 DITCH FILL SEG LINEAR SEG. 200 51 4 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH NORTH SIDE. DISTURBED BY PLOUGH & MACHINING. 10% GRAVEL INCLUSIONS. POSSIBLE POSTHOLE. MASTER NUMBER IS 10003.

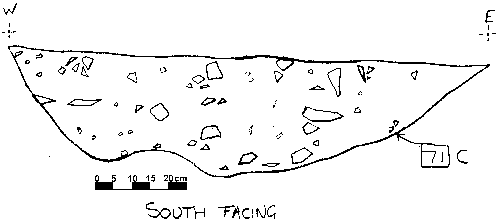

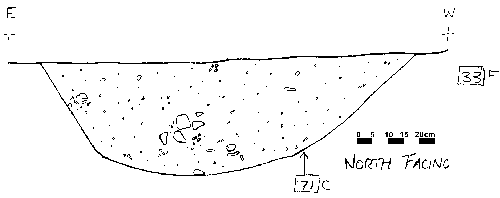

011AB00071 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00071 DITCH CUT SEG LINEAR SEG. 180 125 39 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT: W SIDE.CUT INTO/BY PIT & DITCH FEATURES.
011AB00033 DITCH FILL SEG LINEAR SEG. 180 125 39 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT W SIDE. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

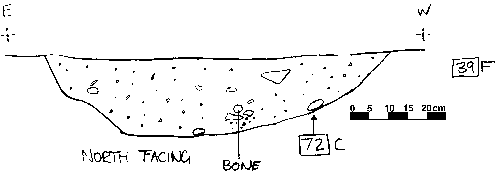

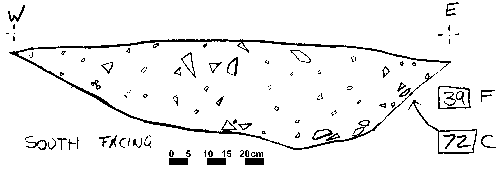

011AB00072 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00072 DITCH CUT SEG LINEAR SEG. 200 108 26 WIDE U CUT OF OUTER ENCLOSURE DITCH SECTION: W SIDE. CUTS INTO NATURAL. DISTURBED BY MACHINING. SHALLOWS OUT TO THE SOUTH. MASTER NUMBER IS 10003.
011AB00039 DITCH FILL SEG LINEAR SEG. 200 108 26 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: W SIDE. 10% CHALK/GRAVEL INCLUSIONS. IRON/BONE FINDS & WHETSTONE IN SECTION. MASTER NUMBER IS 10003.

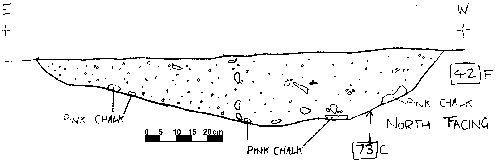

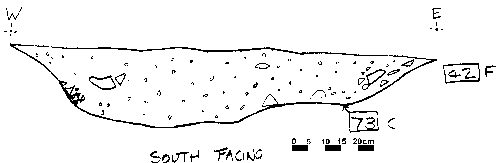

011AB00073 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00073 DITCH CUT SEG LINEAR SEG. 200 130 24 WIDE U CUT OF OUTER ENCLOSURE DITCH SECTION:W SIDE. CUTS INTO CHALK NATURAL: SOME DECAYED & RED CHALK. QUITE SHALLOW. MASTER NUMBER IS 10003.
011AB00042 DITCH FILL SEG LINEAR SEG. 200 130 24 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH W SIDE. 10 % CHALK/GRAVEL INCLUSIONS. VERY FEW FINDS. IRON KNIFE FOUND. MASTER NUMBER IS 10003.

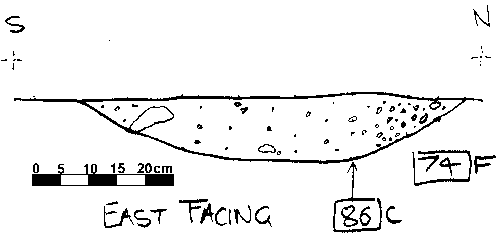

011AB00086 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00086 DITCH CUT SEG LINEAR SEG. 200 67 14 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT: NORTH SIDE. CUT INTO CHALK NATURAL:UNEVEN BASE. SOME GRAVEL ON SIDES. MASTER NUMBER 10003.
011AB00074 DITCH FILL SEG LINEAR SEG. 200 64 11 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SECTION: N SIDE. 5% CHALK/GRAVEL INCLUSIONS: UPTO 3CM. FINDS BY CONTEXT. POSSIBLE POSTHOLES. MASTER NUMBER 10003

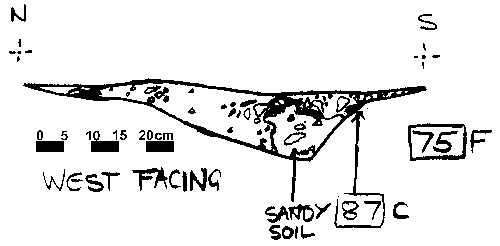

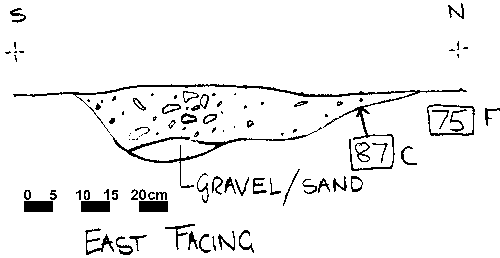

011AB00087 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00087 DITCH CUT SEG LINEAR SEG. 147 53 18 UNDULATING CUT OF OUTER ENCLOSURE DITCH SEGMENT. CUTS INTO CHALK & SANDY GRAVEL NATURAL. UNEVEN BASE CUT. MASTER NUMBER 10003.
011AB00075 DITCH FILL SEG LINEAR SEG. 200 72 18 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SECTION: NORTH SIDE. 5-10% CHALK/GRAVEL INCLUSIONS: SOME OVER 3 CM. FINDS BY CONTEXT. MASTER NUMBER IS 10003.

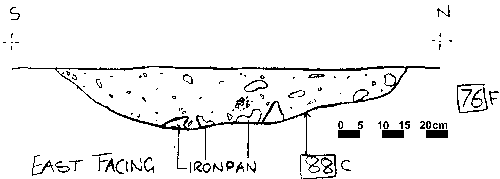

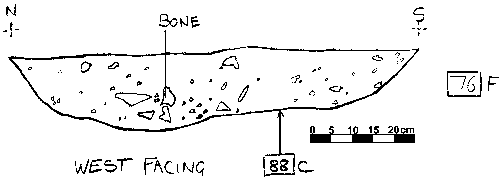

011AB00088 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00088 DITCH CUT SEG LINEAR SEG. 200 96 17 WIDE U CUT OF OUTER ENCLOSURE DITCH SECTION: NORTH SIDE. CUTS INTO CHALK NATURAL. IRON PAN ON W SIDE NEAR MODERN PIPE TRENCH. MASTER NUMBER IS 10003.
011AB00076 DITCH FILL SEG LINEAR SEG. 146 96 16 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: NORTH SIDE. DARK HUMIC FILL WITH 5 % CHALK/GRAVEL INCLUSIONS. ANIMAL BONE FINDS. MASTER NUMBER 10003.

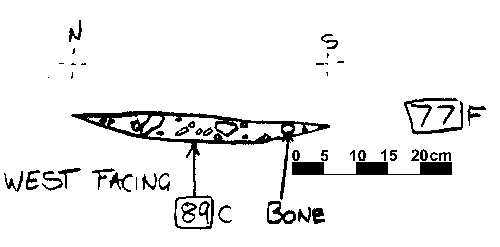

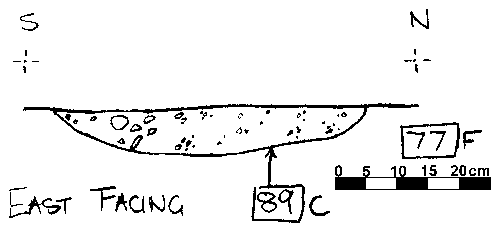

011AB00089 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00089 DITCH CUT SEG LINEAR SEG. 193 46 11 WIDE U CUT OF OUTER ENCLOSURE DITCH SECTION. CUT INTO NATURAL. POSSIBLE POSTHOLE IN NORTHSIDE OF CUT. MASTER NUMBER IS 10003.
011AB00077 DITCH FILL SEG LINEAR SEG. 192 47 11 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SECTION. FINDS BY CONTEXT. SHALLOW & NARROW. POSSIBLE POSTHOLE TO NORTHSIDE. MASTER NUMBER IS 10003.

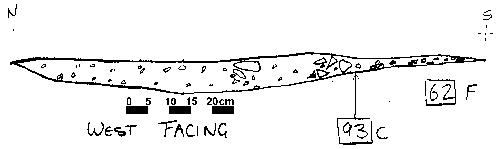

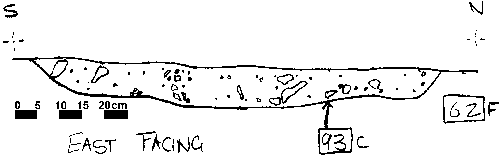

011AB00093 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00093 DITCH CUT SEG LINEAR SEG. 89 94 8 WIDE U CUT OF OUTER ENCLOSURE DITCH SECTION: N SIDE. FINDS BY CONTEXT. CUTS INTO CHALK/GRAAVEL NATURAL: OVEREXCAVATED SOUTH EDGE.
011AB00062 DITCH FILL SEG LINEAR SEG. 81 89 8 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SECTION: NORTH SIDE. FINDS BY CONTEXT. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS. OVEREXCAVATED SOUTH

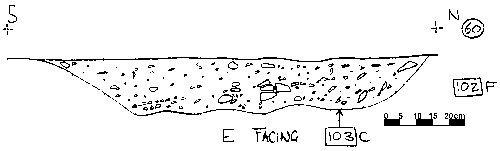

011AB00103 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00103 DITCH CUT SEG LINEAR SEG. 190 117 25 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT IN NW 11AB. CUTS INTO CHALK & CHALK/GRAVEL NATURAL.
011AB00102 DITCH FILL SEG LINEAR SEG. 190 117 15 FLAT BASED U UPPER FILL OF OUTER ENCLOSURE DITCH SEGMENT IN NW 11AB. ORIENTATED E-W. DARK HUMIC FILL WITH 15% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT. M 10003.
011AB00147 DITCH FILL SEG LINEAR SEG. 190 117 10 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT IN NW 11AB. E-W ORIENTATION. DARK HUMIC FILL WITH 15% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT.

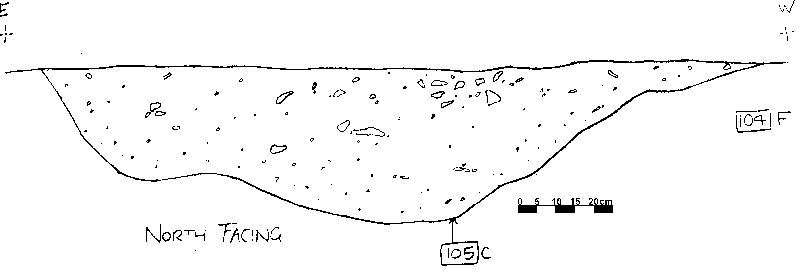

011AB00105 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00105 DITCH CUT SEG LINEAR SEG. 225 188 38 UNDULATING CUT OF OUTER ENCLOSURE DITCH SEGMENT: NW CORNER OF 11AB. CUTS INTO CHALK/GRAVEL NATURAL. STEPPED SIDES TO CUT: NARROWER BASE CUT.
011AB00104 DITCH FILL SEG LINEAR SEG. 225 188 38 FLAT SECONDARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: NW CORNER. N-S ORIENTATION DARK HUMIC FILL: WITH 10% CHALK/GRAVEL INCLUSIONS. FINDS BY CONTEXT: ABONE .
011AB00148 DITCH FILL SEG LINEAR SEG. 225 188 38 UNDULATING PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT:NW CORNER:N-S ORIENTATION DARK HUMIC FILL: LESS STONEY THAN UPPER FILL: FINDS BY CONTEXT.

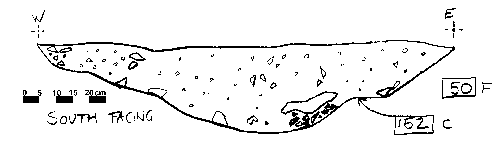

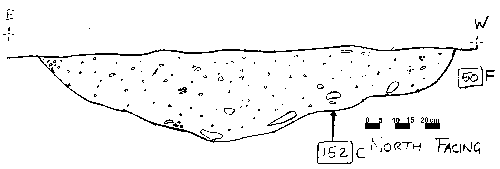

011AB00152 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00152 DITCH CUT SEG LINEAR SEG. 200 144 29 WIDE U CUTS SAND GRAVEL NAT.OVER EXC ON SIDES.UNDULATING BASE. MASTER NUMBER IS 10003: OUTER ENCLOSURE DITCH.
011AB00050 DITCH FILL SEG LINEAR SEG. 205 142 29 WIDE V PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: WEST SIDE. ORIENTATED N-S. DARK HUMIC SANDY FILL. LARGE PIECE OF BURNT SANDSTONE IN N SECTIION.

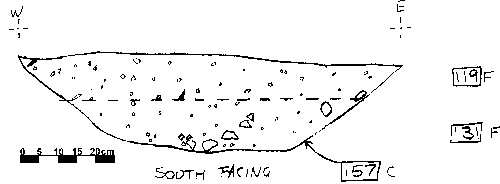

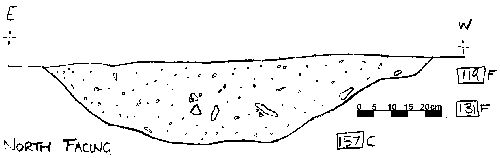

011AB00157 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00157 DITCH CUT SEG LINEAR SEG. 145 112 27 WIDE U DITCH C SEG.75%GRAVEL 5%YELLOW SAND 20%BROWN SAND.UNDULATING BASE27-24CM.ROOTED LIGHTLY. BURROWED. MASTER NUMBER 10003: OUTER ENCLOSURE DITCH.
011AB00119 DITCH FILL SEG LINEAR SEG. 145 112 27 WIDE U 10CM SPIT.FINDS BY CONTEXT ONLY.INCL<5%<5CM.RAPID EXCAV:FINDS MAY BE LOST.BURROED.ROOTED BUT LIGHT. OUTER DITCH. MASTER NUMBER 10003: OUTER DITCH.
011AB00131 DITCH FILL SEG LINEAR SEG. 145 112 27 WIDE U SECOND SPIT.15-17CM DEEP.INCLUTIONS<10%<5CM LARGER NEAR BASE. CLUSTERS OF GRAVEL. BURROWED.ROOTED.RAPID EXC:FINDS POS LOST.MASTER NUMBER 10003.

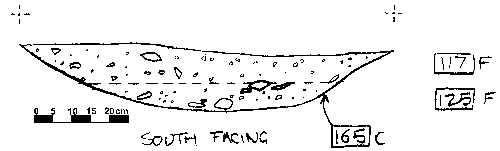

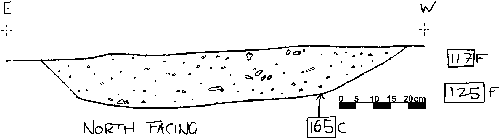

011AB00165 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00165 DITCH CUT SEG LINEAR SEG. 156 104 18 WIDE U CUTS NAT CHK.GENTLY UNDULATIND BASE BETWEEN 16&18CM.LIGHTLY BURROWED.ANIMAL ATN. MASTER NUMBER IS 10003: OUTER ENCLOSURE DITCH.
011AB00117 DITCH FILL SEG LINEAR SEG. 156 104 10 WIDE U SPIT WITHIN DITCH 10CM.INC<5%<5CM CHK.FINDS BY CTX ONLY.FEW FINDS IN RELATION TO OTHER SEGS. MASTER NUMBER 10003: OUTER ENCLOSURE DITCH.
011AB00125 DITCH FILL SEG LINEAR SEG. 156 83 8 WIDE U 2ND SPIT WITHIN DITCH. INC<10%<3CM CHK.SOME C/COAL FLECKS NOTED. MASTER NUMBER IS 10005: OUTER ENCLOSURE DITCH.

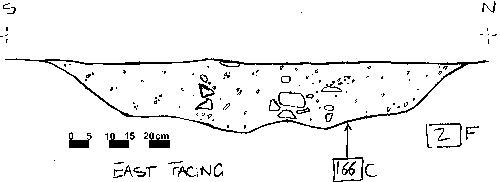

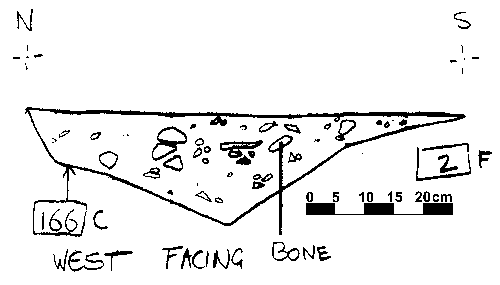

011AB00166 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00166 DITCH CUT SEG LINEAR SEG. 220 104 16 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT:N SIDE. CUTS INTO CHALK NATURAL.NARROWS & SHALLOWS OUT TO THE EAST. DISTURBED UPPER LAYER. MASTER NUMBER 10003.
011AB00002 DITCH FILL SEG LINEAR SEG. 220 104 16 WIDE U FILL OF OUTER ENCLOSURE DITCH.15% CHALK & GRAVEL INCLUSIONS: CONCENTRATION OF CHALK BOULDERS: APPROX 5 CM DIAMETER. SHALLOWS OUT TO EAST. MASTER NUMBER 10003.

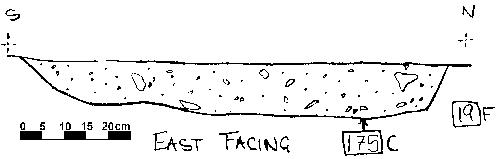

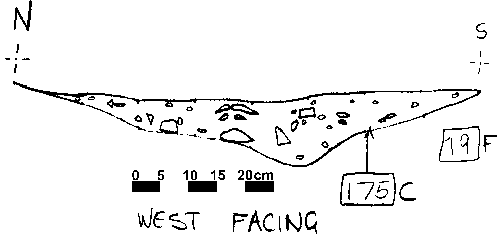

011AB00175 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00175 DITCH CUT SEG LINEAR SEG. 300 92 10 FLAT BASED U CUT OF OUTER ENCLOSURE DITCH SEGMENT: NORTHSIDE. OVEREXCAVATED IN AREAS.CUT INTO CHALK GRAVEL NATURAL. POSSIBLE POSTHOLES IN NORTHERN EDGE. M 10003.
011AB00019 DITCH FILL SEG LINEAR SEG. 300 92 10 FLAT BASED U PRIMARY FILL OF SEGMENT OUTER ENCLOSURE DITCH: N SIDE. DARK HUMIC FILL WITH 10 % CHALK/GRAVEL INCLUSIONS. ANIMAL BONE FOUND. OVEREXCAVATED. M 10003.

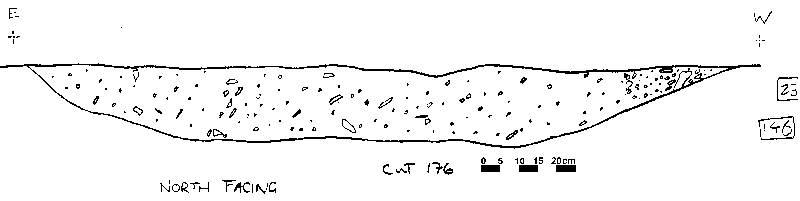

011AB00176 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00176 DITCH CUT SEG LINEAR SEG. 240 180 23 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT: NW CORNER. SW-NE ORIENTATION. CUT INTO CHALK/GRAVEL NATURAL. UNEVEN BASE SURFACE/SOLID CHALK.
011AB00023 DITCH FILL SEG LINEAR SEG. 240 180 23 FLAT SECONDARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: NW CORNER. SW-NE ORIENTATION. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS. FINDS TAGGED .
011AB00146 DITCH FILL SEG LINEAR SEG. 240 180 23 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH: NW CORNER. FINDS BY CONTEXT. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS: SOME CHALK UPTO 5CM DIAMETER.

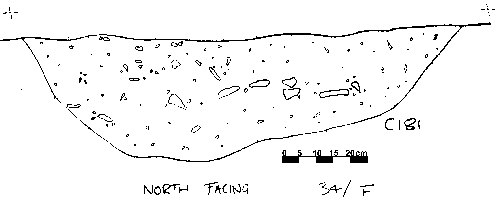

011AB00181 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00181 DITCH CUT SEG LINEAR SEG. 494 174 37 WIDE U CUT OF EXTENDED SEGMENT OF OUTER ENCLOSURE DITCH: WEST SIDE. CUTS INTO CHALK/GRAVEL/SAND NATURAL. CUT BY F170 & RABBIT HOLE ON EASTERN EDGE.
011AB00026 DITCH FILL SEG LINEAR SEG. 494 174 37 WIDE U SECONDARY FILL OF EXTENDED SEGMENT OF OUTER ENCLOSURE DITCH IN W AB.DARK HUMIC FILL WITH 10% CHALK/GRAVEL FILL. FINDS TAGGED. FEATURE IN E GDE
011AB00034 DITCH FILL SEG LINEAR SEG. 220 174 10 FLAT PRIMARY FILL OF SOUTHERN 2M OF EXTENDED SEGMENT OF OUTER ENCLOSURE DITCH IN W AB. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS. FINDS TAGGED.

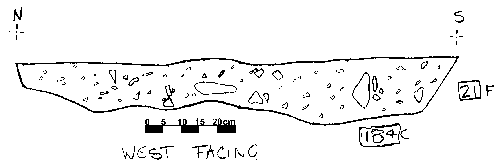

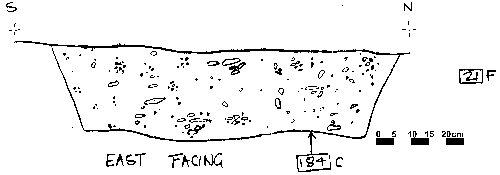

011AB00184 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00184 DITCH CUT SEG LINEAR SEG. 238 103 28 FLAT BASED U CUT OF OUTER ENCLOSURE DITCH: NW CORNER. CUT BY MODERN PIPE TRENCH(35/80). E-W ORIENTATION. CUTS INTO SOLID CHALK & GRAVEL NATURAL.
011AB00021 DITCH FILL SEG LINEAR SEG. 238 103 28 FLAT BASED U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: NW CORNER: CUT BY MODERN PIPE TENCH(35/80). DARK HUMIC SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS.

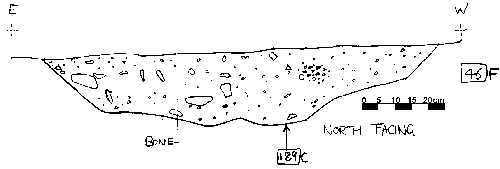

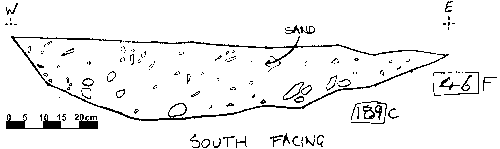

011AB00189 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00189 DITCH CUT SEG LINEAR SEG. 200 119 23 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT IN W AB. ORIENTATED N-S. CUT INTO CHALK/GRAVEL & SOLID CHALK NATURAL. UNEVEN BASE OF CUT. DISTURBED?
011AB00046 DITCH FILL SEG LINEAR SEG. 200 119 23 WIDE U PRIMARY FILL OF OUTER ENCOSURE DITCH SEGMENT: WEST SIDE. DARK HUMIC SANDY FILL WITH 5% CHALK/GRAVEL INCLUSIONS. BROKEN QUERN STONE IN SITU. BURROWED.

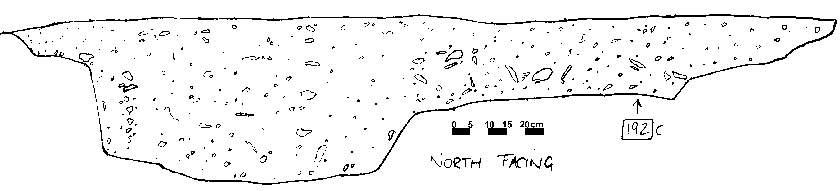

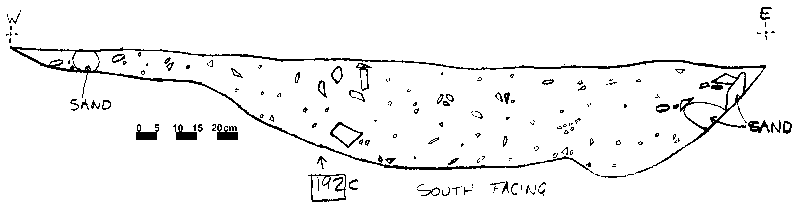

011AB00192 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00192 DITCH CUT SEG LINEAR SEG. 198 222 44 UNDULATING CUT OF OUTER ENCLOSURE DITCH SEGMENT: WEST SIDE. N-S ORIENTATION. CUT INTO CHALK/GRAVEL & SANDY/GRAVEL. UNEVENLY CUT BASE & SIDES OF DITCH.
011AB00052 DITCH FILL SEG LINEAR SEG. 198 222 44 UNDULATING PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: WESTERN SIDE. DARK HUMIC FILL WITH 10% CHALK/GRAVEL INCLUSIONS. NOT MANY FINDS. SOME NATURAL SAND

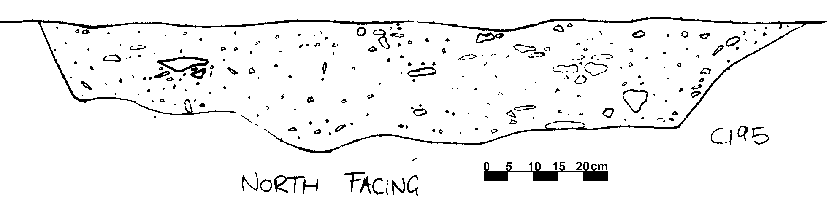

011AB00195 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00195 DITCH CUT SEG LINEAR SEG. 200 148 18 FLAT BASED U CUT OF OUTER ENCLOSURE DITCH ASSOCIATED WITH A SECONDARY RECUT (f156/c194). CUT INTO CHALK/GRAVEL SAND NATURAL: SOME SAND ON EASTERN SIDE & BASE.
011AB00149 DITCH FILL SEG LINEAR SEG. 200 148 25 WIDE U PRIMARY FILL OF SECONDARY OUTER ENCLOSURE DITCH: SW AB. ORIENTATED N-S. DARK HUMIC SANDY FILL WITH 10% CHALK / GRAVEL INCLUSIONS.

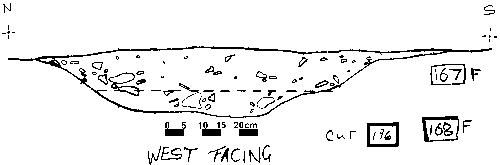

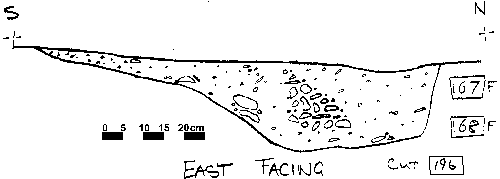

011AB00196 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00196 DITCH CUT SEG LINEAR SEG. 200 92 22 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT: NORTHERN 11AB. ORIENTATED NE-SW. CUTS INTO CHALK/GRAVEL: SOLID CHALK & SAND NATURAL.
011AB00167 DITCH FILL SEG LINEAR SEG. 200 92 12 WIDE U SECONDARY FILL OF OUTER ENCLOSURE DITCH IN NORTH AB. ORIENTATED NE-SW. LINE OF CHALK RUBBLE IN CENTRE OF CONTEXT: 15% CHALK/GRAVEL INCLUSIONS.
011AB00168 DITCH FILL SEG LINEAR SEG. 200 92 10 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT IN NORTH 11AB. ORIENTATION NE-SW. DARK HUMIC SANDY FILL WITH 5% CHALK/GRAVEL INCLUSIONS.

011AB00222 Section and Notes

#

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00222 DITCH CUT SEG LINEAR SEG. 145 94 47 V-SHAPED SECONDARY RECUT OF OUTER ENCLOSURE DITCH IN SW 11AB. PROBABLY MID SAXON. CUTS INTO SANDY GRAVEL: RUNS PARALLEL TO INITIAL CUT OF DITCH TO EAST.
011AB00218 DITCH FILL SEG LINEAR SEG. 145 115 22 V-SHAPED PRIMARY FILL OF SECONDARY CUT OF OUTER ENCLOSURE DITCH SEGMENT IN W 11AB.DARK SANDY FILL WITH AFEW PIECES OF CHALK. SOME BONE & POTTERY PRESENT.

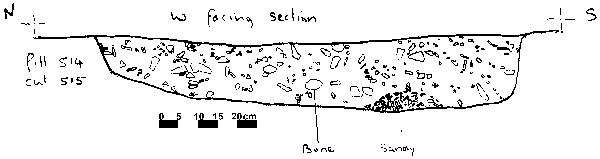

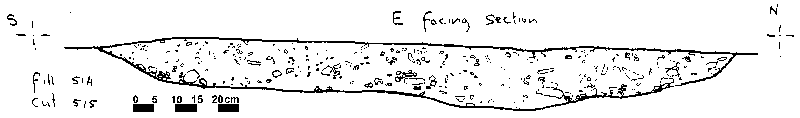

011AB00515 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00515 DITCH CUT SEG LINEAR SEG. 204 139 8 FLAT BASED U CUT OF OUTER ENCLOSURE DITCH SEGMENT IN NE 11AB. VERY SHALLOW CUT INTO CHALK/GRAVEL: SAND & DECAYED CHALK. DEEPER ON EASTERN EDGE.
011AB00514 DITCH FILL SEG LINEAR SEG. 204 139 18 FLAT BASED U PRIMARY FILL OF LINEAR DITCH SEGMENT OF OUTER ENCLOSURE DITCH IN NE 11AB. V SHALLOW DARK SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS. V SPARSE FINDS.

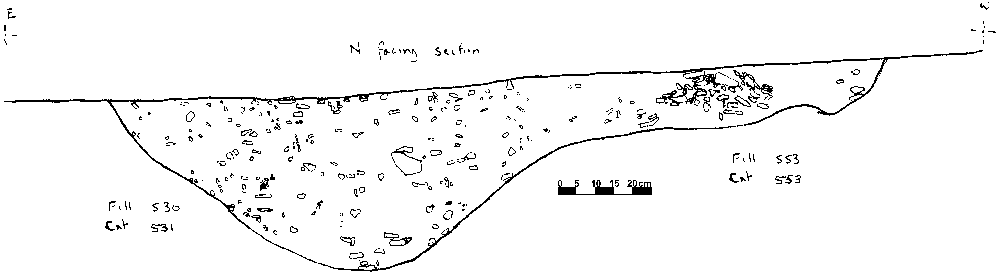

011AB00531 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00531 DITCH CUT SEG LINEAR SEG. 205 151 36 FLAT BASED V CUT OF OUTER ENCLOSURE DITCH SEGMENT LOCATED IN SW 11AB: CUT BY A RECUT OF DITCH(c554). CUTS INTO SANDY GRAVEL/CHALK. DEEPENS TOWARDS SOUTHERN EDGE:
011AB00530 DITCH FILL SEG LINEAR SEG. 205 151 45 FLAT BASED V PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. CUT BY RECUT(f553/c554). DARK LOAMY SAND WITH 10-15% CHALK GRAVEL INCLUSIONS.

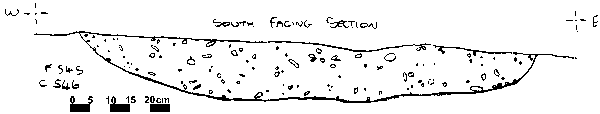

011AB00546 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00546 DITCH CUT SEG LINEAR SEG. 210 115 13 FLAT BASED U CUT OF DITCH SEGMENT: ORIENTATED N-S: LOCATED IN SW 11AB. DITCH RUNS INTO S BULK OF 11AB: INTO 11AD. CUT INTO FINE GRAVEL WITH PATCHES OF SAND IN BASE
011AB00545 DITCH FILL SEG LINEAR SEG. 210 115 13 FLAT BASED U DITCH SEGMENT IN SW 11AB: RUNNING INTO SOUTHERN BULK OF 11AB. ORIENTATED N-S.DARK LOAMY SAND FILL WITH 10% CHALK/GRAVEL INCLUSIONS: V SPARSE FINDS.

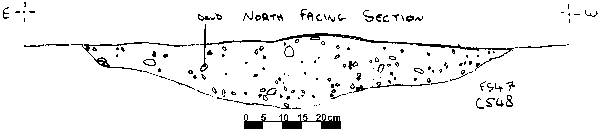

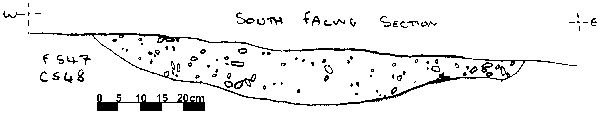

011AB00548 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00548 DITCH CUT SEG LINEAR SEG. 195 120 18 WIDE V CUT OF LINEAR DITCH SEGMENT RUNING INTO SOUTHERN BULK OF 11AB. ORIENTATED N-S. CUT INTO FINE CHALK/GRAVEL: LARGE PART OF BASE CUT INTO NATURAL SAND.
011AB00547 DITCH FILL SEG LINEAR SEG. 195 120 18 WIDE V PRIMARY FILL OF LINEAR DITCH SEGMENT LOCATED IN SW 11AB. FILLED WITH DARK LOAMY SAND WITH 5-10% CHALK/GRAVEL INCLUSION & FAIRLY SPARSE FINDS.

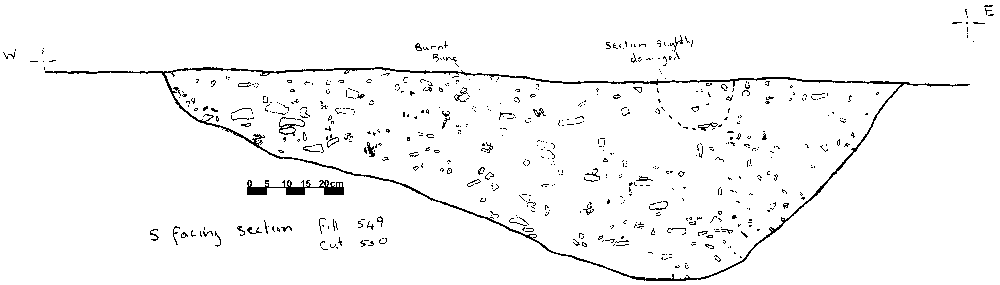

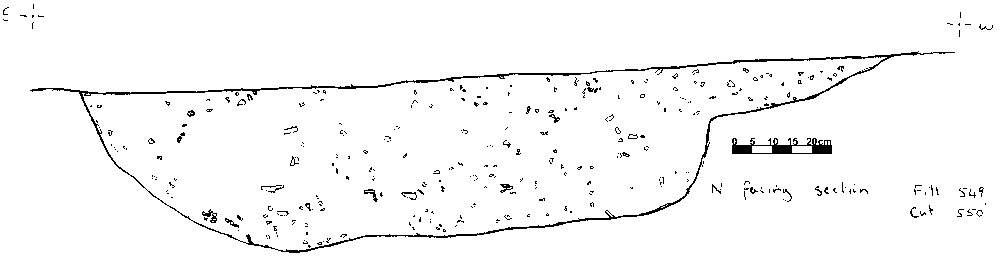

011AB00550 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00550 DITCH CUT SEG LINEAR SEG. 207 206 49 FLAT BASED U CUT OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH: LOCATED IN SW 11AB. ORIENTATED N-S. CUTS INTO SANDY GRAVEL/GRAVEL & SAND NATURAL. SANDY EAST SIDE.
011AB00549 DITCH FILL SEG LINEAR SEG. 207 206 49 FLAT BASED U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. ORIENTATED N-S. DARK LOAM/SAND FILL WITH 10% CHALK/GRAVEL INCLUSIONS. & SANDSTONE.

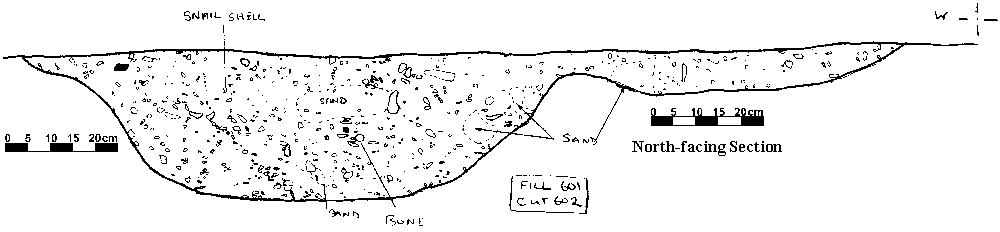

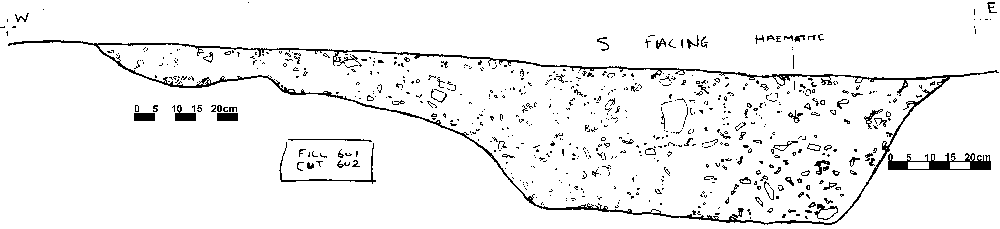

011AB00602 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00602 DITCH CUT SEG LINEAR SEG. 272 176 38 STEPPED U CUT OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. CUTS INTO SANDY CHALK/GRAVEL: WITH STEPPED GRAVEL LEDGE ON WEST SIDE. BURROWED SANDY BASE.
011AB00601 DITCH FILL SEG LINEAR SEG. 272 176 38 STEPPED U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS: UPTO 10CM. HEAVILY BURROWED.

011AB00622 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00622 DITCH CUT SEG LINEAR SEG. 248 205 43 WIDE V CUT OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH. ORIENTATED N-S.CUTS INTO FINE SANDY CHALK/GRAVEL ON E & W SIDES:LOAMY SAND IN BASE.BURROWED FILL.
011AB00621 DITCH FILL SEG LINEAR SEG. 248 205 43 WIDE V FILL OF OUTER ENCLOSURE DITCH SEGMENT WITH DARK SILTY SAND FILL & 10-15% INCLUSIONS.PART OF HUMAN SKULL:Au HOOK & QUERNSTONE FOUND.FILL QUITE CLEAN.

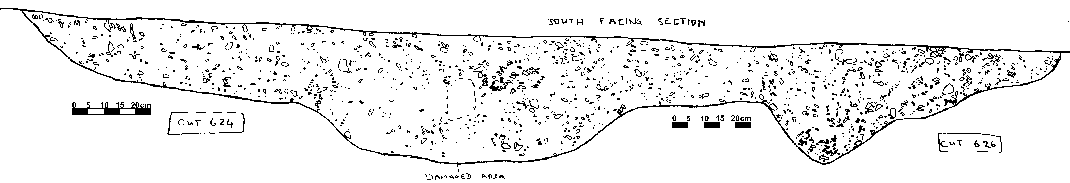

011AB00624 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00624 DITCH CUT SEG LINEAR SEG. 225 210 38 STEPPED U CUT OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH. ORIENTATED N-S:POSSIBLE RECUTS NOT VISIBLE.CUT INTO LOAMY SAND:CHALK GRAVEL & SANDY GRAVEL.BURROWED
011AB00623 DITCH FILL SEG LINEAR SEG. 225 210 39 STEPPED U FILL OF OUTER ENCLOSURE DITCH SEGMENT:LOCATED IN SW 11AB.DARK SANDY SILT FILL WITH 5% INCLUSIONS.PART OF HUMAN SKULL FOUND :FACE DOWN:BACK MISSING.

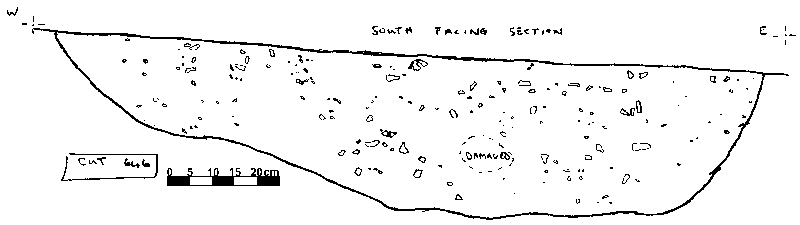

011AB00646 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00646 DITCH CUT SEG LINEAR SEG. 315 156 34 FLAT BASED U CUT OF OUTER ENCLOSURE DITCH SEGMENT: ORIENTATED N-S; LOCATED IN SW 11AB.CUT INTO NATURAL RED SAND & GRAVEL. OVER EXCAVATED NW EDGE.
011AB00645 DITCH FILL SEG LINEAR SEG. 315 156 34 FLAT BASED U PRIMARY FILL OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH LOCATED IN SW 11AB. DARK SANDY FILL WITH 5% CHALK/GRAVEL INCLUSIONS. SOME NATURAL FLINT.

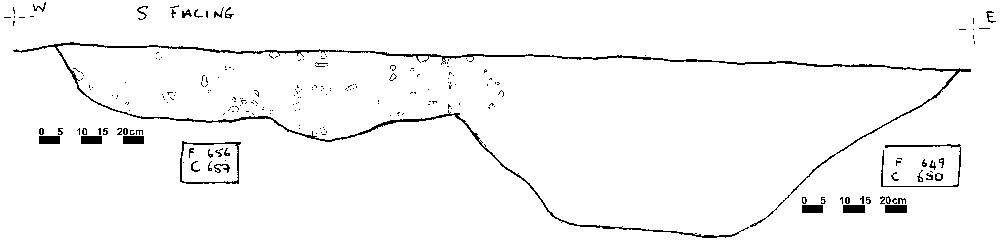

011AB00657 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00657 DITCH CUT SEG LINEAR SEG. 217 108 28 FLAT BASED U CUT OF SEGMENT OF OUTER ENCLOSURE DITCH: CUT BY LATER RECUT OF DITCH(f649/c650). CUT INTO SANDY CHALK/GRAVEL NATURAL. SOME BURROWING OF CUT.
011AB00656 DITCH FILL SEG LINEAR SEG. 217 107 29 FLAT BASED U PRIMARY FILL OF OUTER ENCLOSURE DITCH: CUT BY A LATER RECUT OF THE DITCH.DARK SANDY FILL WITH <5% CHALK/GRAVEL INCLUSIONS: SPARSE FINDS IN FILL.

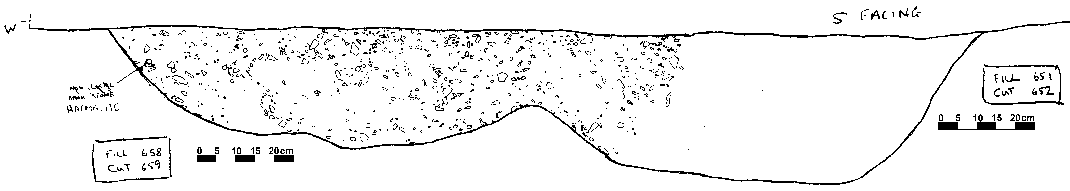

011AB00659 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00659 DITCH CUT SEG LINEAR SEG. 332 108 33 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. CUT BY DITCH SEGMENT(f651/c652). ALSO CUT INTO FINE SANDY GRAVEL NATURAL. EARLIER CUT .
011AB00658 DITCH FILL SEG LINEAR SEG. 332 108 33 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. CUT BY DITCH SEGMENT(f651/c652). DARK SANDY FILL WITH 5-10% CHALK/GRAVEL INCLUSIONS

011AB00825 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00825 DITCH CUT SEG LINEAR SEG. 160 120 26 FLAT BASED U CUT OF EXTENSION OF OUTER ENCLOSURE DITCH SEGMENT(f50/c152). ORIENTATED E-W.CUT INTO LOAMY SAND & PEAGRIT/GRAVEL.BURROWED BASE/OVERCUT.
011AB00824 LAYER LINEAR SEG. 294 120 3 FLAT LAYER/GENERAL CLEANING OVER OUTER ENCLOSURE DITCH & POSSIBLE PIT.COVER NATURAL LOAMY SAND TO W AS WELL AS DITCH FILL. 5% INCLUSIONS. A FEW FINDS.
011AB00828 DITCH FILL SEG LINEAR SEG. 160 120 14 FLAT UPPER FILL OF EXTENSION OF OUTER ENCLOSURE DITCH SEGMENT (f50/c152).DARK LOAMY FILL WITH 5% INCLUSIONS.SANDSTONE OBJECT & SILVER RING FRAG. FOUND.I
011AB00831 DITCH FILL SEG LINEAR SEG. 160 112 10 FLAT BASED U EARLIEST FILL OF EXTENSION OF OUTER ENCLOSURE DITCH SEGMENT(f50/c152).BELOW SANDSTONE OBJECT.MORE SANDY & GRAVELLY THAN f828.A FEW FINDS:BURROWED.

Secondary phase of ditch

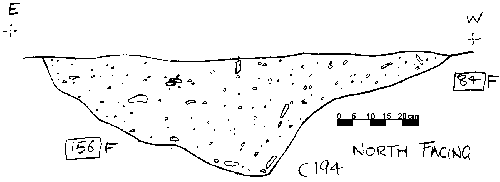

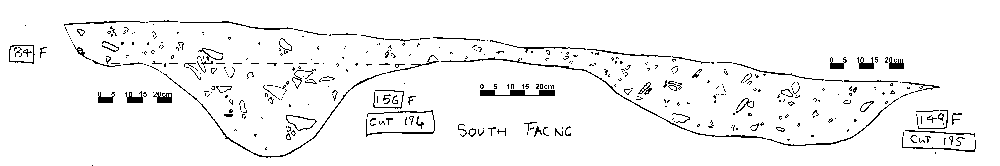

011AB00194 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00194 DITCH CUT SEG LINEAR SEG. 200 112 44 STEPPED U CUT OF OUTER ENCLOSURE DITCH SEGMENT IN SW AB. CUT INTO CHALK/GRAVEL/SAND NATURAL. OORIENTATED N-S. ASSOCIATED WITH SECONDARY DITCH FEATURE.
011AB00156 DITCH FILL SEG LINEAR SEG. 200 112 44 STEPPED U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: SW CORNER AB. ASSOCIATED WITH SECONDARY DITCH FEATURE(149/195). DARK HUMIC FILL: 10% CHALK/GRAVEL INC.

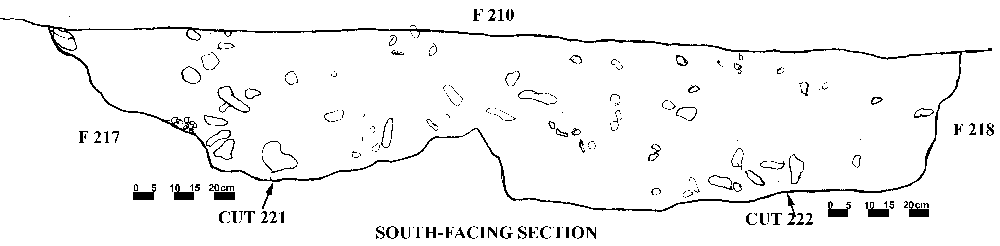

011AB00221 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00221 DITCH CUT SEG LINEAR SEG. 145 0 0 WIDE U CUT OF OUTER ENCLOSURE DITCH SEGMENT IN SW 11AB. TURNING TOWARDS SE. ORIENTATED N-SE. CUTS INTO CHALK/GRAVELLY SAND. SHALLOW U SHAPE CUT.
011AB00217 DITCH FILL SEG LINEAR SEG. 145 145 17 WIDE U PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT IN SW 11AB. DARK SANDY FILL WITH 5% GRAVEL INCLUSIONS. RED CHALK P/CHATCOAL PRESENT IN SMALL QUANTITIES

011AB00554 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00554 DITCH CUT SEG LINEAR 82 78 33 V-SHAPED CUT OF DITCH RECUT ADJACENT TO OUTER ENCLOSURE DITCH IN SW 11AB. DITCH CUT SHALLOWS TO SOUTH. CUT INTO SANDY CHALK/GRAVEL. REJOIOINS EARLIER CUT?
011AB00553 DITCH FILL SEG LINEAR 82 78 33 V-SHAPED PRIMARY FILL OF RECUT OF OUTER ENCLOSURE DITCH IN SW11AB. TERMINATES/REJOINS 530 AT THIS POINT. DARK LOAMY SAND WITH <10% CHALK/GRAVEL INCLUSIONS.

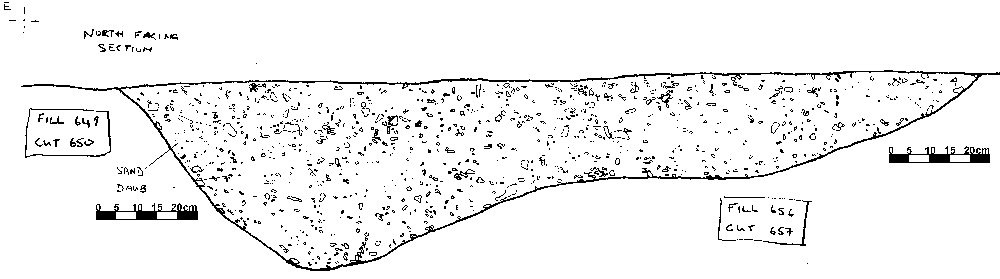

011AB00650 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00650 DITCH CUT SEG LINEAR SEG. 215 102 40 WIDE V CUT OF OUTER ENCLOSURE DITCH SEGMENT: CUTTING INTO EARLIER DITCH CUT(f656/c567): TO THE WEST. ALSO CUT INTO SANDY GRAVEL NATURAL. SOME BURROWING.
011AB00648 DITCH FILL SEG LINEAR SEG. 213 80 20 WIDE V EARLIEST FILL OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH: MOSTLY ON EASTERN SIDE OF DITCH. V DARK SANDY FILL WITH 5% CHALK/GRAVEL INCLUSIONS.
011AB00649 DITCH FILL SEG LINEAR SEG. 215 102 20 FLAT UPPER FILL OF LINEAR SEGMENT OF OUTER ENCLOSURE DITCH: LOCATED IN SW 11AB. DARK SANDY FILL WITH 10-15% CHALK/GRAVEL INCLUSIONS. SPARSE FINDS IN FILL.

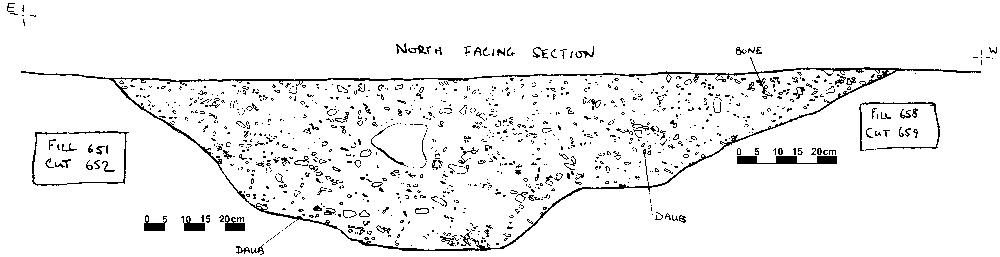

011AB00652 Sections and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AB00652 DITCH CUT SEG LINEAR SEG. 332 120 42 U-SHAPED CUT OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. CUUTING EARLIER? DITCH SEGMENT(f658/c659): ON WESTERN EDGE. CUT INTO CHALK/GRAVEL & SAND.
011AB00651 DITCH FILL SEG LINEAR SEG. 332 120 46 U-SHAPED PRIMARY FILL OF OUTER ENCLOSURE DITCH SEGMENT: LOCATED IN SW 11AB. DARK SANDY FILL WITH 10% CHALK/GRAVEL INCLUSIONS: SOME LARGE PIECES OF CHALKK.
